EM613001 Multi-tariff Din Rail 200A PV 40-400VDC Digital RS485 DC Solar Power Meter with Shunt

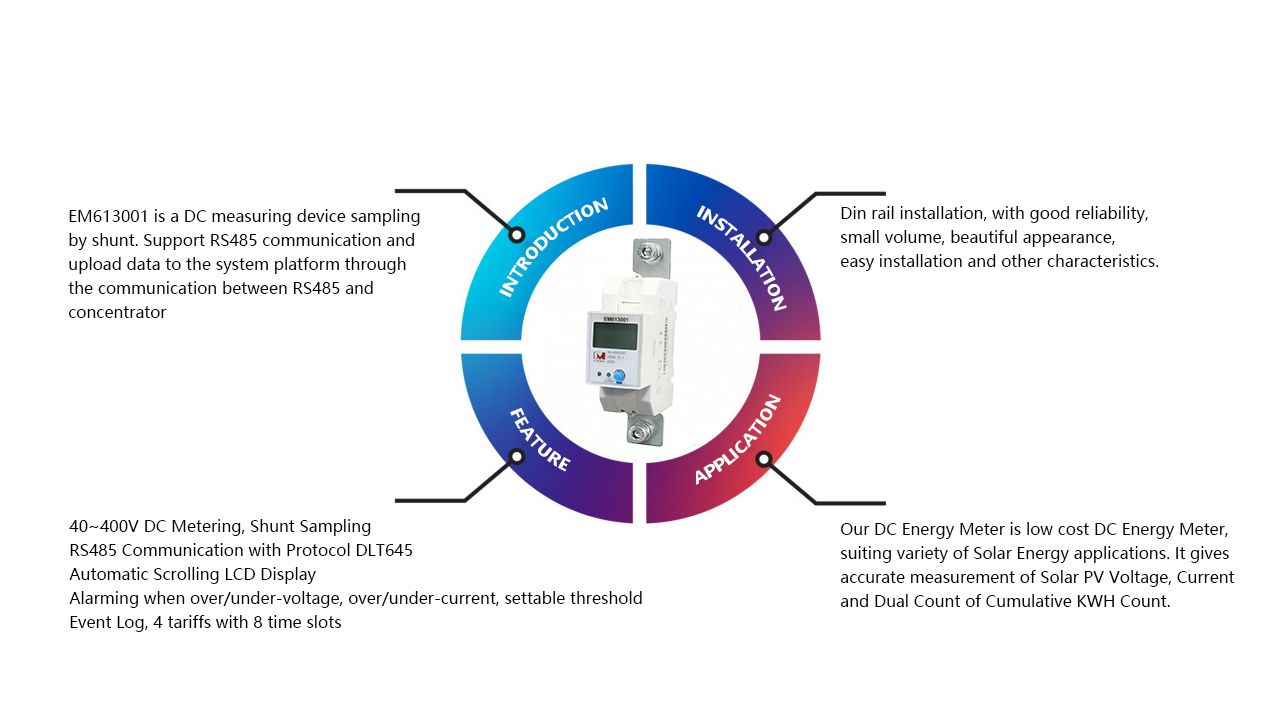

EM613001 is a DC measuring device sampling by shunt. Support RS485 communication and upload data to the system platform through the communication between RS485 and concentrator ( PS: EM613002 - it’s NB concentrator which allows 25 pcs of RS485 DC meters). Current platform supports simple reading and parameters setting,we advise customer have a system as per application, and we recommend simple reading with matched PC software. Din rail installation, with good reliability, small volume, beautiful appearance, easy installation and other characteristics.
Product Features
40~400V DC Metering, Shunt Sampling
RS485 Communication with Protocol DLT645
Automatic Scrolling LCD Display
Alarming when over/under-voltage, over/under-current, settable threshold
Event Log, 4 tariffs with 8 time slots
Product Parameters
Ref. voltage | DC40V-400V |
Ref. current | 10~240A |
Impulse constant | 100imp/kWh |
LCD display | LCD6+2 |
Operation temp. | -20~+70℃ |
Average humidity | 75% |
Relative humidity | 95% |
Accuracy class | Cl.1 |
Communication | RS485, communication protocol DLT645 |
Power consumption | ≤0.4W,≤8VA |
Standard compliant | GB/T 17708-2017 Static DC Energy Meter |
Accuracy Error of Cl.1 Meter | |
Current value | Limit of percentage error of Cl.1 meter |
0.05Ib≤I<0.1Ib | ±1.5 |
0.1Ib≤I<Imax | ±1.0 |
Product Dimension
Product Application
DC circuits are becoming increasingly common in renewable energy applications and microgrid technology, leading to a greater demand for DC monitoring. IVY METERING brand of Solar DC Energy Meter is low cost DC Energy Meter, suiting variety of Solar Energy applications. It gives accurate measurement of Solar PV Voltage, Current and Dual Count of Cumulative KWH Count. For example in solar system, EM613001 allow users the ability to accurately and effectively monitor the power generated from the solar panel PV in DC before it hits the inverter. Then some of them will be stored in DC battery storage system, during this period, if you would like to measure the DC energy then EM613001 is a good helper too.
