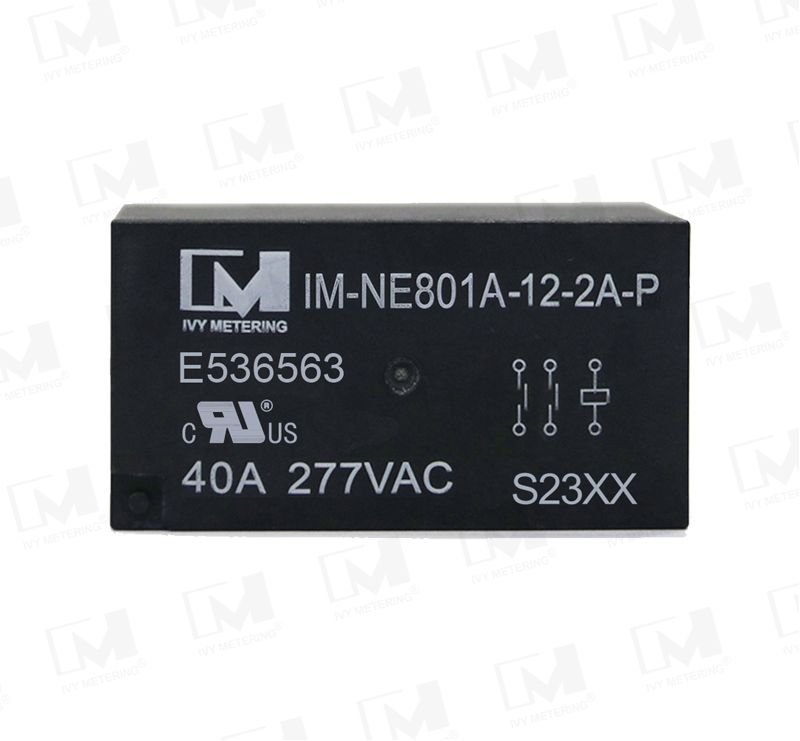

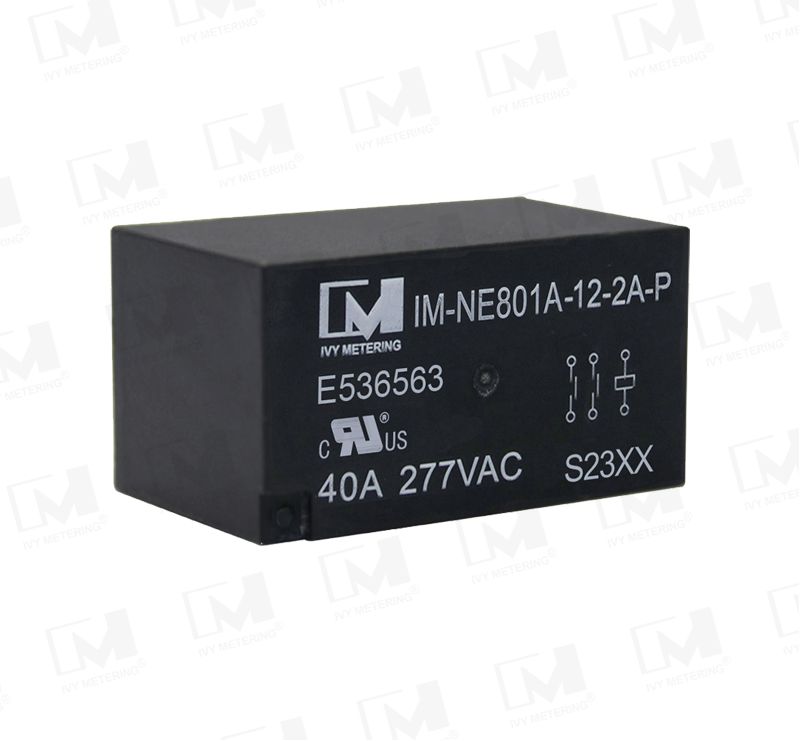

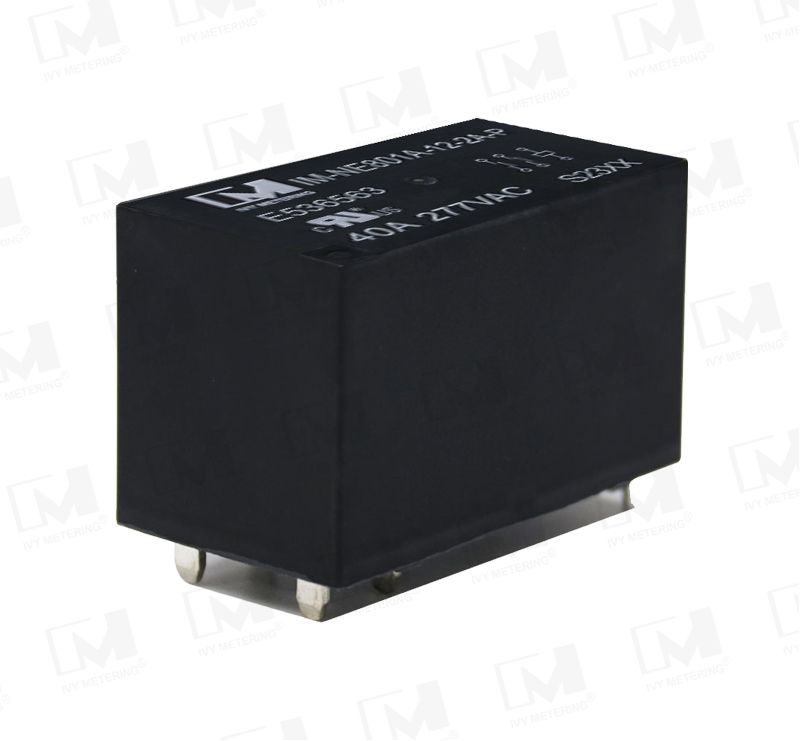

IM-NE801A UL/IEC61810-1 EV Relays 40A 12VDC DPST-NO 2 Pole Monostable Power Relay for Mode 3 Charger

EV-Charging is carried out via wall charging stations (wall boxes) or by using charging cables with integrated electronics (IC-CPD). Products that are used here must comply with current standards such as IEC62752 for IC-CPD mode 2 charging, or with IEC61851-1 for charging in accordance with mode 3 for wall boxes. These standards carry stringent requirement, for example with respect to the ability to withstand significant short-circuits.

Fortunately for hardware designers of EVSE systems, IVY's IM-NE801A power relay was developed specifically for use in accordance with IEC61810-1, more importantly, to meet the exceedingly stringent short-circuit withstand-current requirements of this standard.



Product Details

Product Feature:

- Mounting type: PCB mounted through hole
- Contact arrangement: 2 form A (NO)
- Rated coil voltage: 12VDC- Maxmum contact voltage: 277VAC
- Contact gap: 3mm (@4kV Withstand Voltage)
- Number of operations: 50 000 cycles @32A, 230-250V
- Contact resistance/load category: CC2
- Short response time
- Comply with UL, TUV certified, IEC 61851-1/IEC 61810-1/IEC 62955 standard
- The contact spacing is large and the withstand voltage reaches 4500Vac.
- suitable for American/EU standard charging piles

IM-NE801A UL/IEC61810-1 40A 12VDC DPST NO 2 Pole Monostable Power Relay for Mode 3 32A EV Charger


Product Parameters

Specification

Weight

≈70g

Continuous  Current

40A

Contact  Form

2A

Contact  Material

AgSnO2

Max.  Switching Voltage

277VAC

Initial  Contact Resistance

10mΩ (at 20A)

Insulation  Resistance

100MΩ,at 500VDC,50% RH

Mechanical  Endurance

1*106 ops

Electrical  Endurance

5*104 ops(@32A 230VAC)

2*104 ops(@40A 230VAC)

Dielectric   withstanding voltage

Across Open Contact

4000VAC  1min

Coil to Contact

801A: 4000VAC 1min

Pick-up & Release Time

30ms. typical/10ms. typical

Environment Temperature

Operation: -40℃~85℃

Storage: -40℃~125℃

Vibration

10-40Hz,DA1.27mm, 40-70Hz:5g

70-100Hz:DA0.5mm,100-500Hz:5g

Shock Resistance:

20g, 11ms

Dielectric Strength

500Vrms, 1min


Product Dimension



Product Application

• Photovoltaic power generation systems (Solar inverter)
• Uninterruptible Power Supplies (UPS)
• Inverter
• Industrial equipment

• EV charging systems & EVSE design
