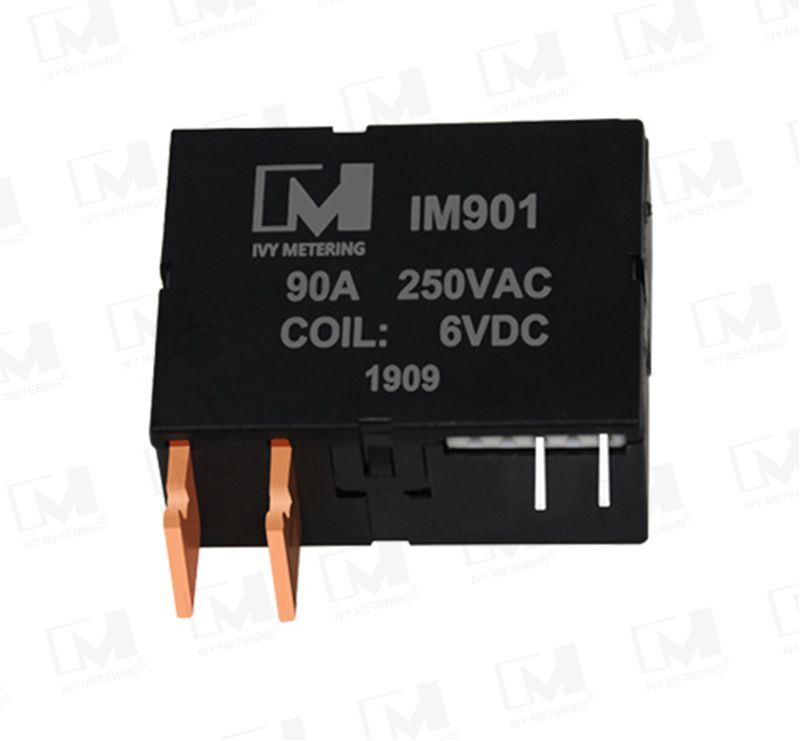

IM901 90A Coil Consumption Latching High Power New Energy Relay for DC Fast Charging

Electrical switches and relays are at the core of many modern electronics applications, including home automation, automotive, IoT devices, wireless communications systems, medical imaging, and test & measurement systems. IM901-Its rated load can reach 90A 250VAC, and the contact material is AgSnO2. The maximum switching current and power supply can reach 90A, 22500VA. In addition to the above characteristics, the electrical and mechanical life can reach 10,000 cycles and 100,000 cycles. The most different feature of the latching relay and the general-purpose relay is that the latching relay has a latching function, more environmental friendly.

Inquire Now Next Product

Product Details

Product Features

Disconnect Connect Functions & Designed for 63A 65A Solar Panel

Comply with IEC62055-31 UC2/UC3 Certified

Durable with Long Mechanical & Electrical Service

Product Parameters

Basic Data	Dimension（mm）		38×30×16.5
	Weight ( g )		≈33g
	Contact Arrangement		1A/1B
	Contact Material		AgSnO₂
	Ambient Temperature		-40~+70℃
	Ambient Humidity		45%~90%RH
	Vibration		10~55Hz,1.5mm(DA)
Specification Data	Nominal Voltage		6~48VDC
	Power Consumption		Single Coil:1.5W, Dual Coil:3W
	Max. Switching Voltage		250VAC
	Max. Switching Current		90A
	Max. Switching Power		22500 VA
	Contact Resistance		<2.0 mΩ
	Insulation Resistance		1000MΩ（DC 500V）
	Dielectric Creepage		10mm
	Dielectric Strength	Across Open Contact	＞2000VAC 1min
		Coil To Contact	＞4000VAC 1min
	Electrical Life		＞10,000cycles
	Mechanical Life		＞100,000cycles
	Picking-up & Release Time		≦20ms
	Pulse Duration		≧100ms
	Functional Shock Resistance		10G
	Destructive Shock Resistance		100G
