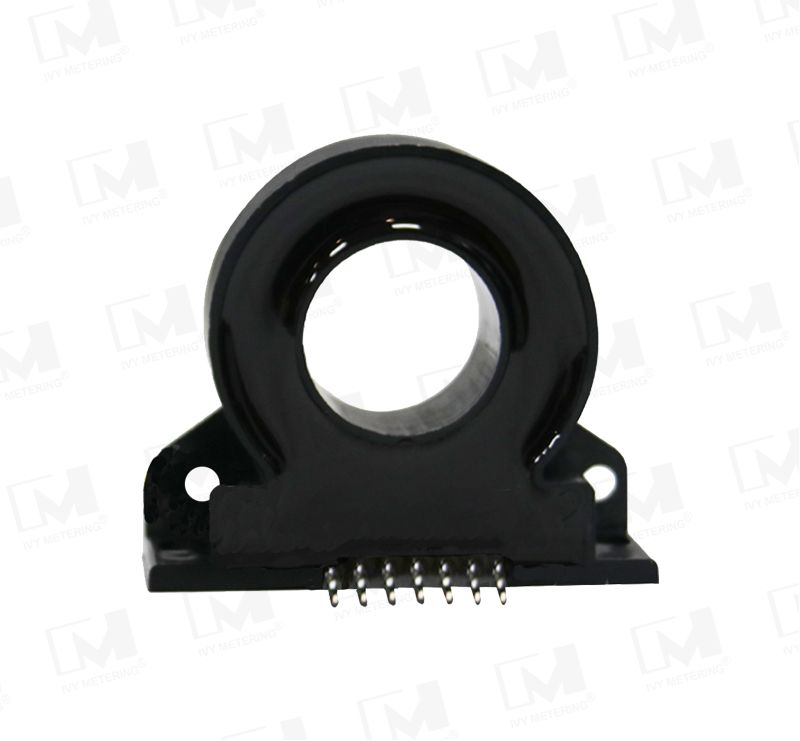

MD0630T01A-Z EV Charger RCM Residual Current Monitor AC 30mA DC 6mA Differential Current Sensor

MD0630T01A-Z is an automotive grade leakage current sensor also called residual current monitoring (RCM), residual current detection (RCD), differential current sensor, leakage current detector and fault current sensor. It has the characteristics of accurate measurement, small size and integration. The RCD sensor can be set separately for AC and DC leakage and has a digital output function. It can detect sinusoidal AC, pulsating DC, composite of multi-frequency as well as smooth DC residual currents.

It support mA level AC DC residual current measurement with leakage current detection type of TypeAC, TypeA, Type B,Type B+. The Range is AC 3-100mA, DC 2-15mA and the threshold is settable by UART communication. Compared with MD0630T01A, the pins are more straight for horizontal installation. Widely used for electro-medical instruments, ventilation systems, inverters, UPS, Electric vehicle charging stations, lifts, escalators, welding equipment, smart home, industrial machines, elevators, IOT, photovoltaic systems. In addition, our delivery time is also guaranteed.

Inquire Now Next Product

Product Details

Main Features:

mA Level Measurement, AC DC Leakage Data Readable

Integrated Design, Horizontal Installation, with Pin/PCB

Alarm Value Programmable, 3 Types of alarm Outputs

UART Serial Communication, Modbus Protocol

TUV Certificate IEC62955:2018 (IEC 61008-1:2010+A1:2012+A2:2013)

CE-EMC: EN 61000-6-3:2007+A1 ,EN IEC 61000-6-1:2019

MD0630T01A-Z EV 6mA 30mA RCM AC DC Leakage Protection Residual Current Monitoring Unit RCD Sensor

Product Parameters

Wide voltage input: 12V±20%
Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)
Accuracy : at 25℃, DC±0,2mA, AC±0.3mA
Can read current value and set alarm current value
Three outputs: DC alarm, AC alarm, AC/DC alarm
Working environment temperature: -25℃～+80℃
Plastic case, small SIP package

1.Being able to detect smooth DC residual currents which can occur in EV charger stations and photovoltaic systems, IVY RCD guarantees the safety of the people and of the installation

2.can guarantee dependable protection for field technicians and installed machinery by detecting high frequency residual current and protecting against smooth DC residual currents in the event of a fault.

3.can prevent damage to installed equipment and avoid operational impacts in situations where service interruption and out of order can cause discomfort.

4.In installation where we cannot necessarily withstand any sort of interruption, IVY RCD can minimize outages, equipment damage, failures and interruption of any critical operation

Leakage Current Detection Type:

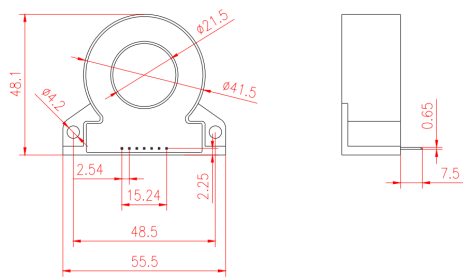

Dimension
