EM613005 10-240A din rail digital shunt dc electric power energy meter for EV charging pile station

EM613005 is designed for scenarios such as DC panel, charging pile and telecom base stations. This meter series can measure voltage, current, power and active energy etc.




Product Details

Product Details

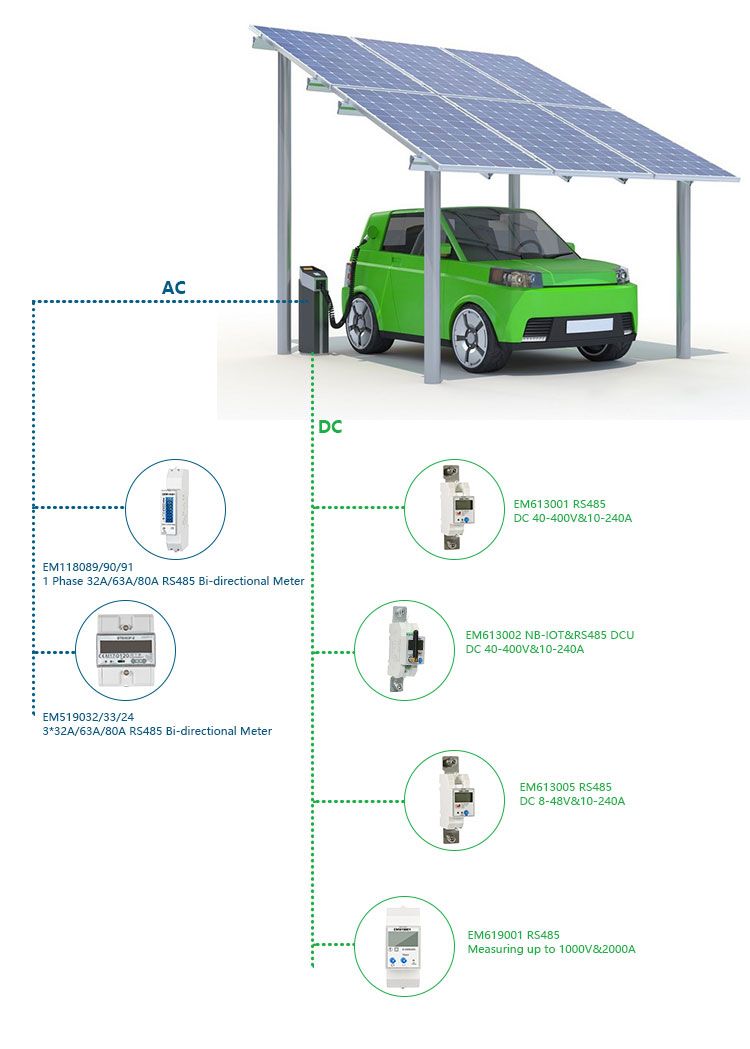

1.There are 4 models of DC meter:EM613001/EM613002/EM619001/EM613005. It's worth to highlight that RS485 & NB-IOT communication are optional.

2.EM series DC energy meters are designed for measuring and monitoring in DC systems.

3.The din rail DC energy meters can measure of important DC parameters: Voltage, current, power and energy etc. It also support bi-directional measurement. All data in the meter are accessible via RS485 using Modbus RTU/DLT645.

4.The meter working with DC power supply. Input voltage range up to 1000VDC, and current inputs are flexible with DC shunt.

5.The multi-tariff version has a RTC equipped inside, it can provides multi-tariff information and monthly records.

6.EM series dc meter is designed for scenarios such as DC panel, battery storage system, solar PV, EV charger and telecom base stations.

Solar PV panels are a growing source of renewable energy which involves DC electricity production. The need to monitor these systems, providing accurate energy measurement before conversion to AC is crucial for reflecting true efficiency and conversion losses. The DC charging station has an integrated converter that transforms the alternating current from the mains into direct current. This allows the electricity to be fed directly into the vehicle's battery.


Product Parameters

EM613005

Din Rail DC Measuring Device

Reference voltage

DC8V-48V (Simultaneous power supply during measurement) measurement

Current

10~240A

Operation temp.

-20℃~+70℃

Accuracy class

Cl.1.0

 Average humidity

75%

Relative humidity

95%

Communication

RS485 Communication



Communication protocol

DTL645/Modbus RTU

Impulse constant

1000 imp/kWh

LCD display

LCD 6+2

Power consumption

≤0.4W,≤8VA

Standard compliant

GB/T 17708-2017 Static DC Energy Meter


Product Dimension




Product Application

DC Measurement

Equipment Monitoring

Genset, Solar and UPS applications

In control panel to measure different electrical loads

EM613005 DC Energy Meter Smart device for all renewal energy resources
