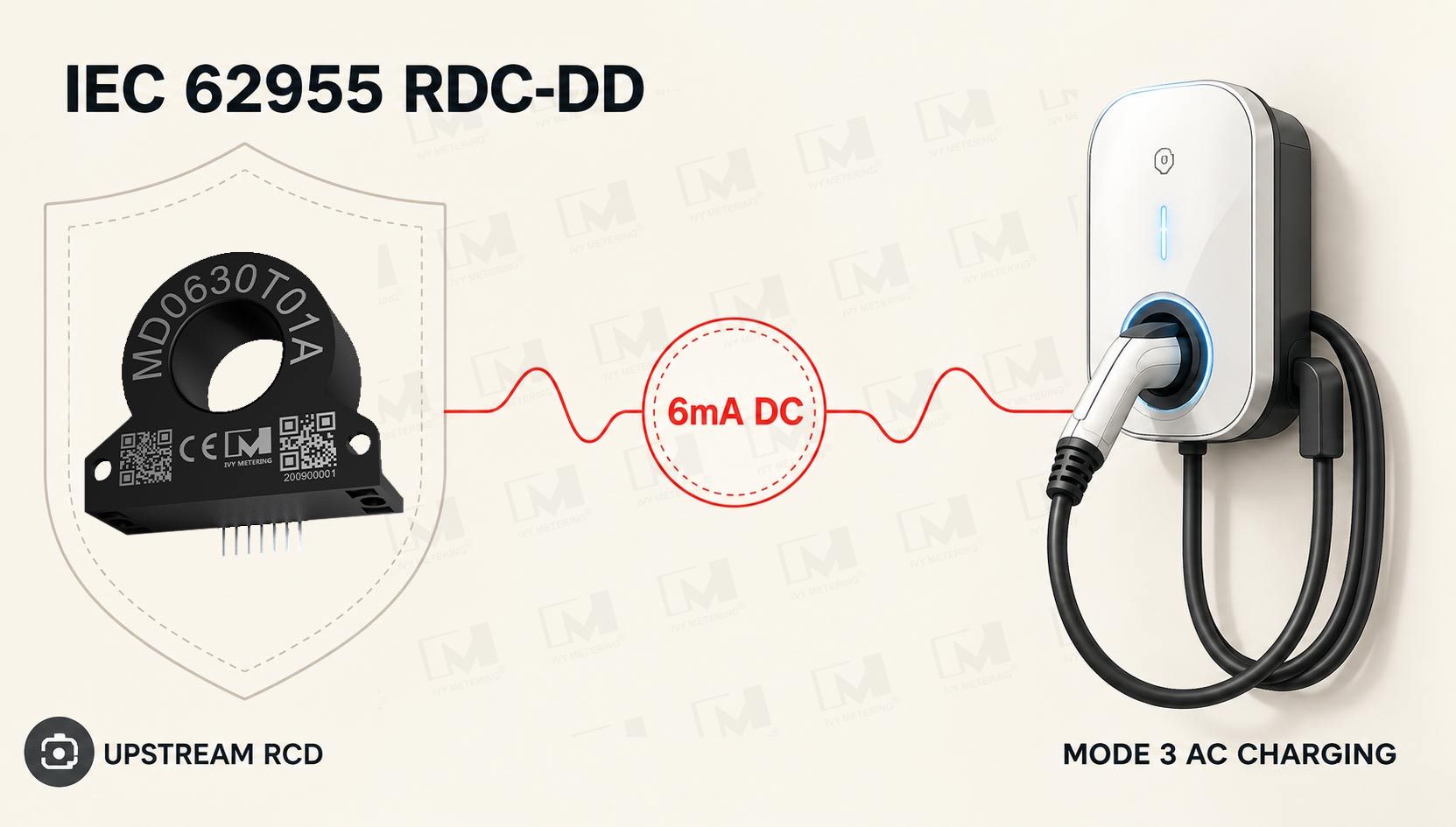

IVY MD0630T01A AC DC Leakage Current Sensor

Product Description

The IVY METERING MD0630T01A is a compact AC/DC leakage current sensor designed for EV charger safety protection.

It detects both AC residual current and smooth DC leakage current, helping EVSE manufacturers meet IEC 62955 and IEC 62752 protection requirements.

With 6mA DC and 30mA AC detection, UART Modbus communication, programmable alarm thresholds, and PCB mounting design, this RCD sensor is suitable for Mode 2 portable chargers and Mode 3 AC wallbox chargers.

Product Features

1. Complies with the DC and AC protection requirements of IEC62752 or IEC62955

2. Small Size, Integration Design, Vertical/Horizontal Mounting Optional

3. AC DC Leakage Data Readable, Alarm Value Programmable, 3 Way Alarm Outputs

4. UART Comm, with Modbus Protocol, Type B RCD/RCMU Protection

5. Standard: TUV(IEC62955/IEC62752/IEC61851-1),  IS17017, CE-EMC

6. Electrical Safety at Cost-effective (Compared to Type B RCCB)

7. Robust Mechanical and Electrical Design for Harsh Environmental Conditions

Pin Definition

Why is RCD required in IC-CPD and AC Charger applications?

The existing type A RCD can only in the detection of pulsating DC leakage from 6 mA DC interference, and can’t detect DC leakage and disconnect protection, when DC leakage is more than 6 mA, due to the DC residual current will cause core magnetization in advance, resulting in tripping value deviation, leading to the type A RCD can’t normal movement.

Therefore, type B RCD or A+6mA protection must be used!

Product Parameters

• Wide voltage input: 12V±20%

• Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)

• Accuracy : at 25℃, DC±0,2mA, AC±0.3mA

• Can read the current value and set the alarm's current value

• Three outputs: DC alarm, AC alarm, AC/DC alarm

• Working environment temperature: -25℃～+80℃

• Plastic case, small SIP package

Typical Application

• EV Charging Stations

  - AC Wallbox Chargers

  - Portable EV Chargers

  - Mode 2 IC-CPD

  - Mode 3 EVSE

  - Smart Charging Systems

• Renewable Energy

  - Solar Inverters

  - Battery Energy Storage Systems

  - DC Power Systems

• Industrial Equipment

  - UPS Systems

  - Power Converters

  - Industrial Control Cabinets

FAQ

What is an AC DC leakage sensor for EV chargers?

An AC DC leakage sensor monitors residual current faults in EV charging systems. It detects both AC leakage and smooth DC leakage currents to improve electrical safety and prevent RCD protection failure.

Why do EV chargers need 6mA DC leakage detection?

EV chargers contain power electronics that may generate smooth DC residual currents. Traditional Type A RCD devices may lose sensitivity when DC leakage exceeds certain levels, so IEC 62955 requires DC leakage detection for EV charging protection.

What standards does MD0630T01A comply with?

MD0630T01A supports EV charging protection requirements including IEC 62955, IEC 62752 and IEC 61851-1 related applications.

What is the difference between Type B RCD and MD0630T01A?

A Type B RCCB is a complete protection device, while MD0630T01A is a compact residual current monitoring sensor designed for integration inside EV chargers and electronic systems.
