EM613001 Multi-tariff 100A Digital Shunt EV Charging Smart DC Din Rail Energy Meter with RS485

Product Details

1.There are 4 models of DC meter:EM613001/EM613002/EM619001/EM613005. It's worth to highlight that RS485 & NB-IOT communication are optional.

2.EM series DC energy meters are designed for measuring and monitoring in DC systems.

3.The din rail DC energy meters can measure of important DC parameters: Voltage, current, power and energy etc. It also support bi-directional measurement. All data in the meter are accessible via RS485 using Modbus RTU/DLT645.

4.The meter working with DC power supply. Input voltage range up to 1000VDC, and current inputs are flexible with DC shunt.

5.The multi-tariff version has a RTC equipped inside, it can provides multi-tariff information and monthly records.

6.EM series dc meter is designed for scenarios such as DC panel, battery storage system, solar PV, EV charger and telecom base stations.

Solar PV panels are a growing source of renewable energy which involves DC electricity production. The need to monitor these systems, providing accurate energy measurement before conversion to AC is crucial for reflecting true efficiency and conversion losses. The DC charging station has an integrated converter that transforms the alternating current from the mains into direct current. This allows the electricity to be fed directly into the vehicle's battery.

EM Series DC Meter Advantages

Din Rail Mount; Shunt Sampling; Class 1

Measuring Current up to 2000A

Voltage Input DC5~1000V; Current Input 75mV(max)

RS485 Communication with DLT645/Modbus Protocol

Over-current/Over-voltage/Over-load Alarm

Bi-directional Measurement; Net metering for Renewable systems

LCD Backlight; Multi-tariffs(RTC), Monthly Records

Product Parameters

Product Dimension

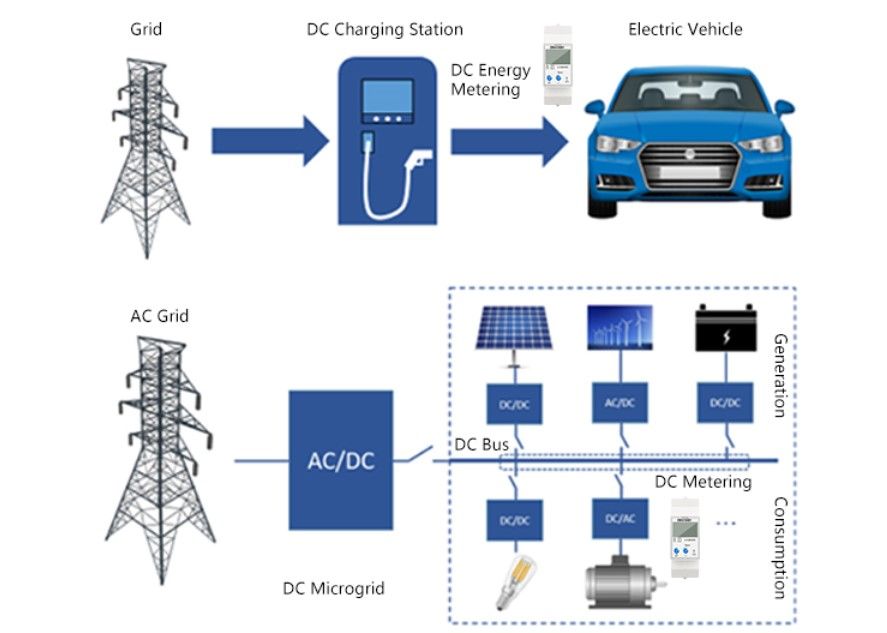

DC energy meter in EVSE

The DC energy meter is a key component in the EV ecosystem. It must precisely measure and record the power (voltage and current) delivered from the EVSE to the vehicle, compensating for cable losses, and then securely transmit the data upstream to ensure accurate billing.EM613001 is such a smart and compact DC Billing Meter, fully compliant with the German Eichrecht regulation. Fast chargers for electric vehicles make use of DC charging; they convert the power before it enters the vehicle. It is suitable for power measurement and power metering of DC signal equipment such as EV charging piles. No matter it’s DC fast charging station or DC EV charger, if you want to know the electrical parameters then DC energy power meter is necessary.
