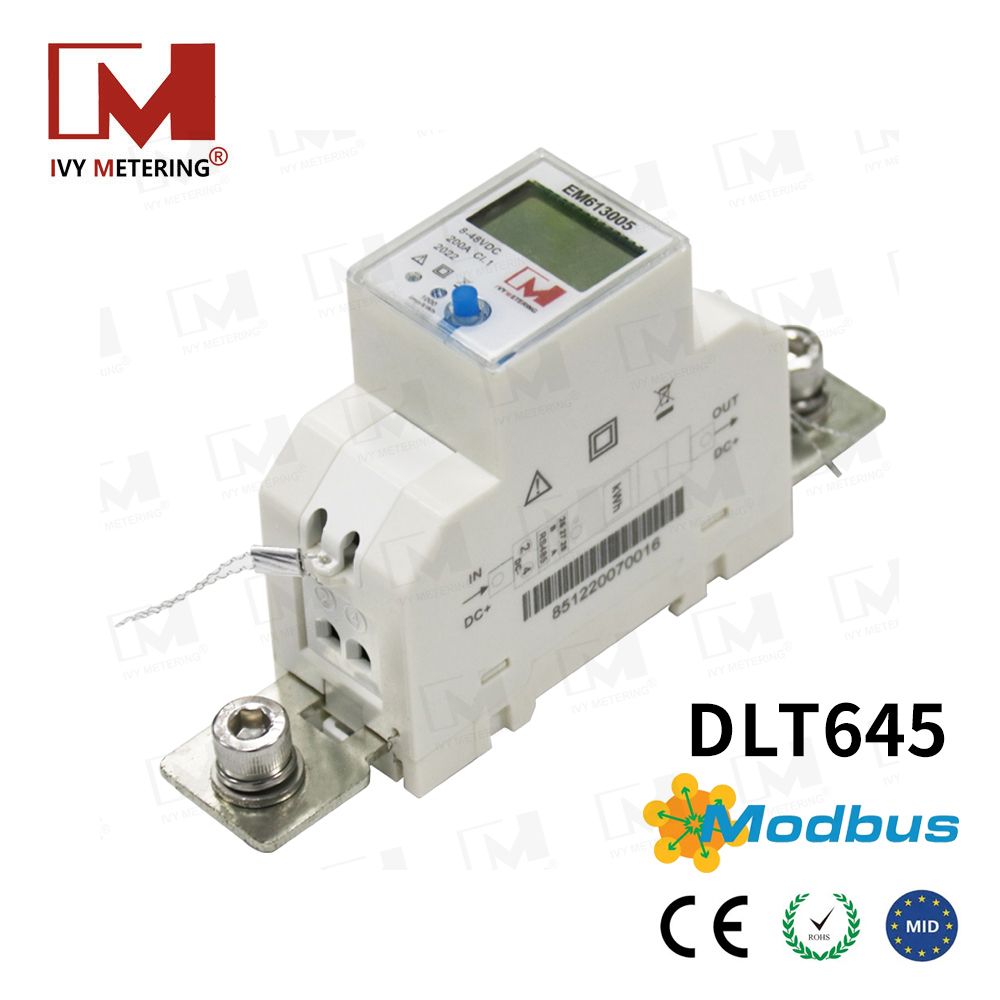

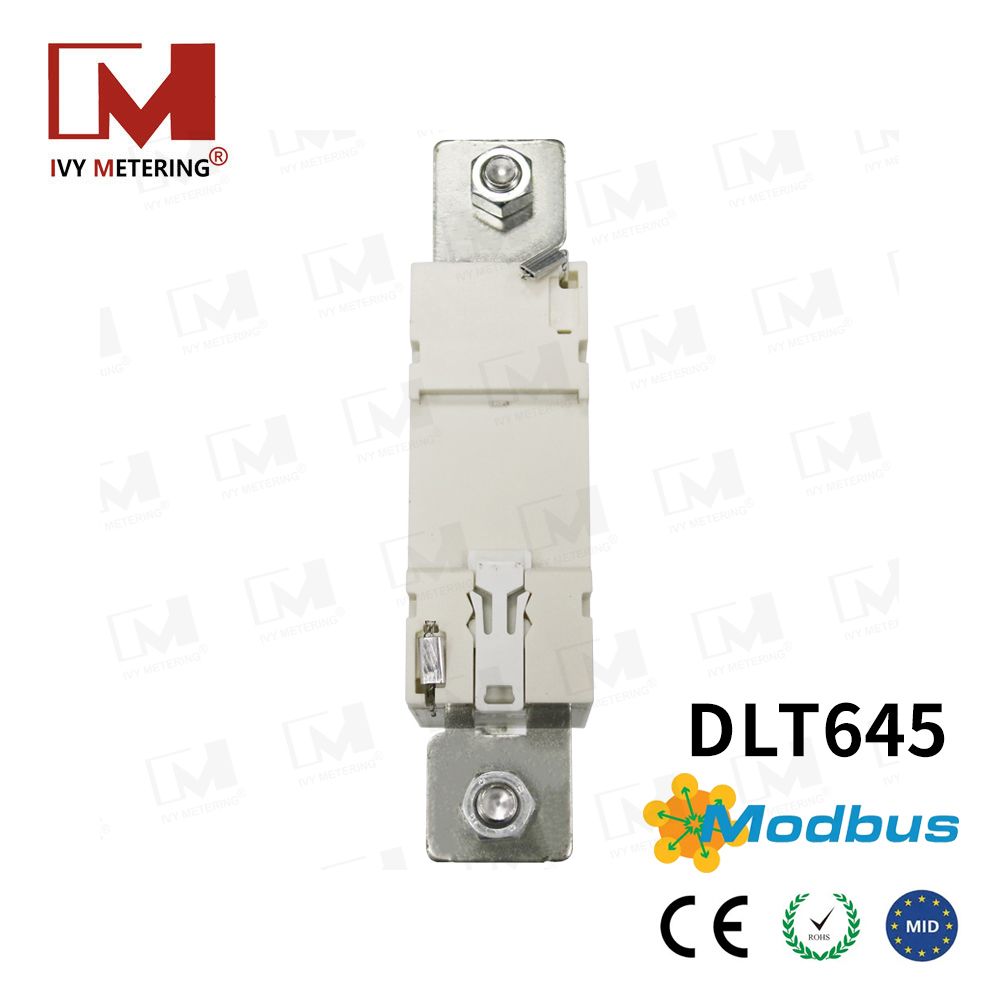

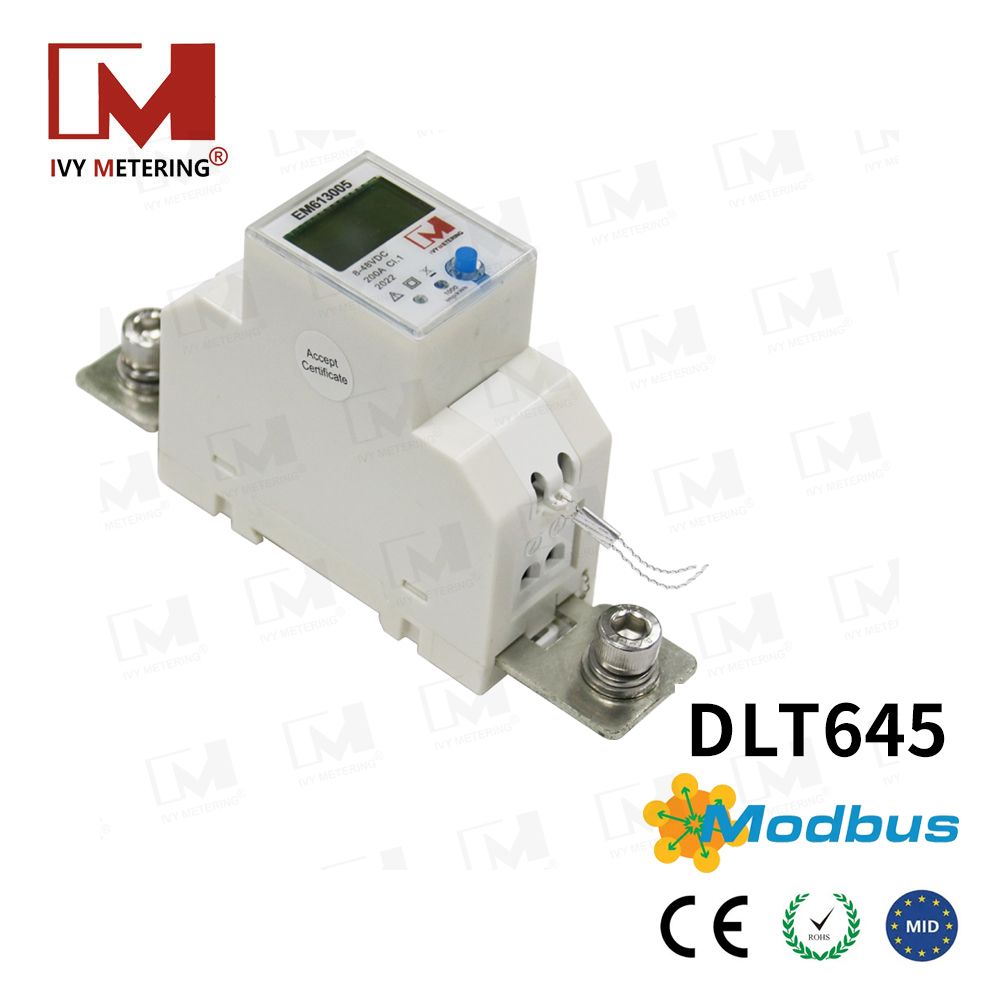

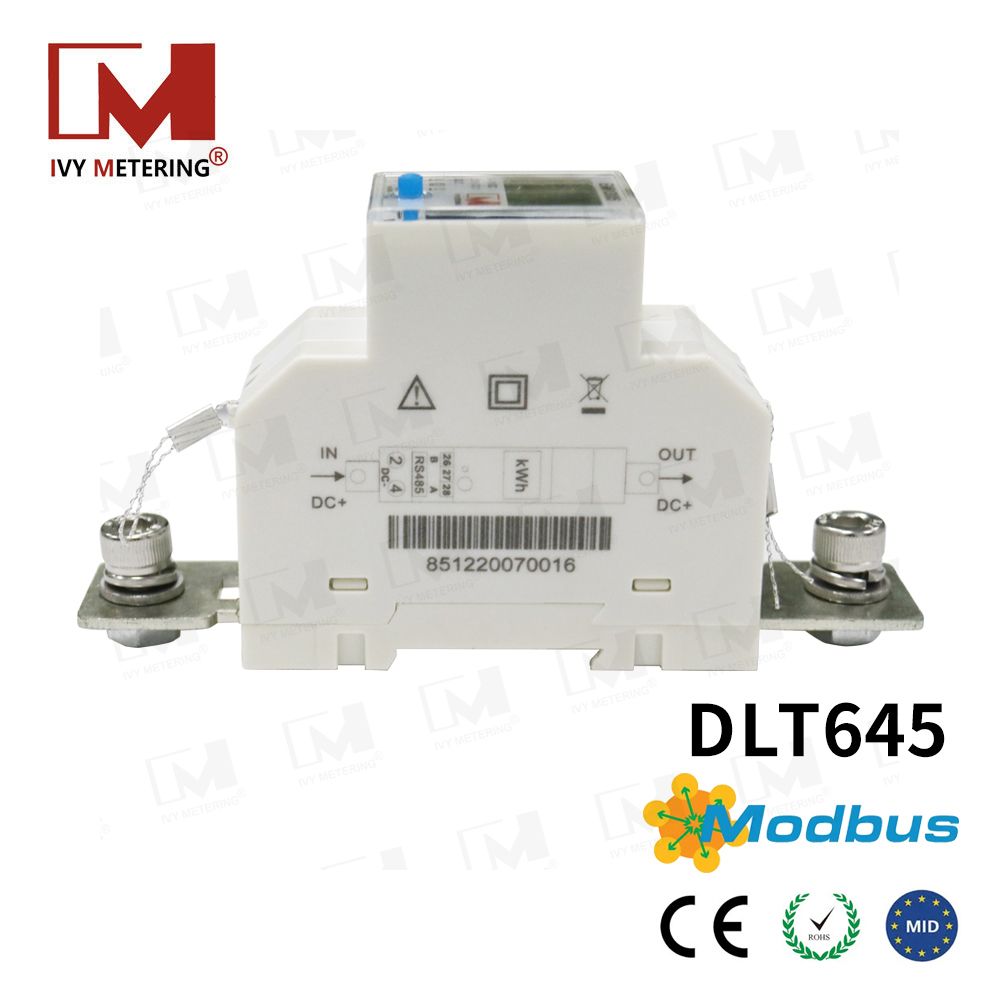

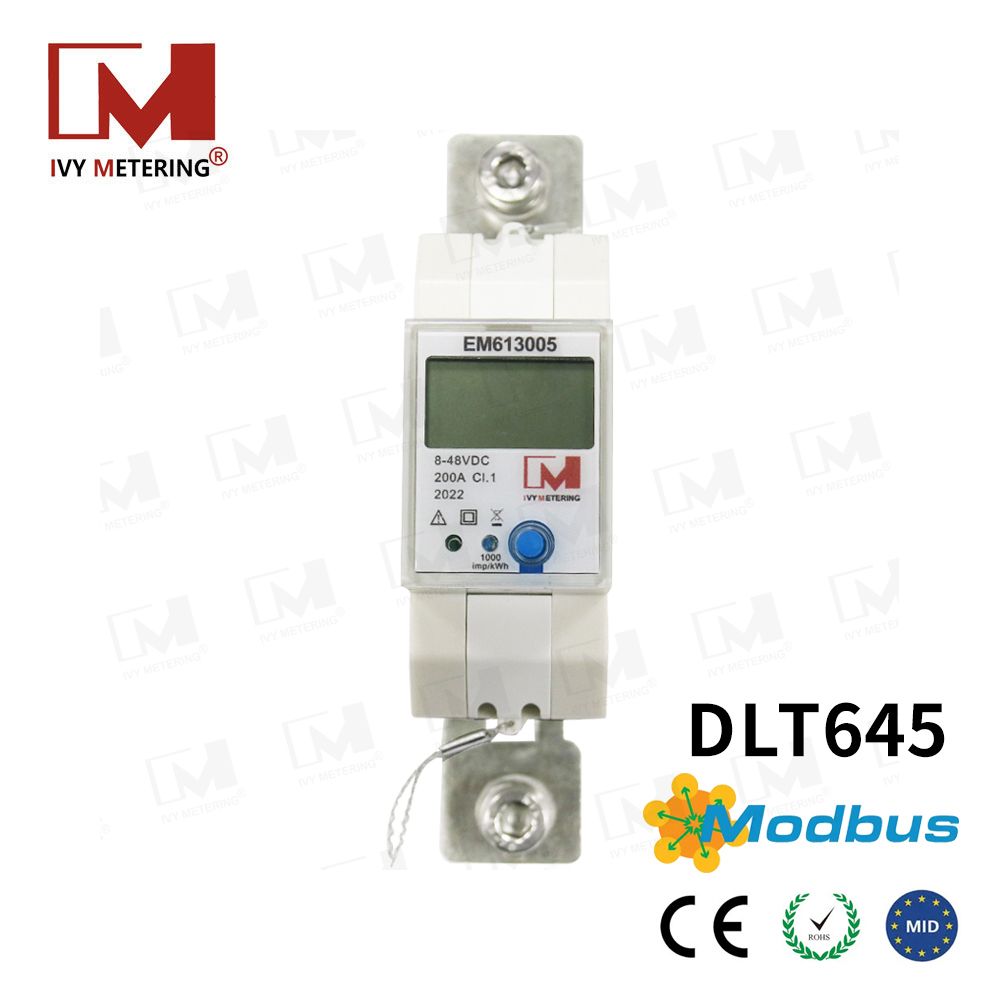

EM613005 9-60VDC Powered Solar Bidirectional RS485 DC Volt Amp Watt meter for 48VDC Battey System
EM613005 is a 1 phase din rail dc smart energy meter designed with advanced energy metering chip and SMT technology. With RS485 port, the meter can communicate with the computer to exchange the data. The meter is widely used widely used for monitoring and controlling energy flow in DC systems such as solar PV strings, battery energy storage, wind turbine power and other DC applications. The meters measure the voltage, current, power and energy parameters. Readings are displayed on the backlight LCD display and 3 months’ history data can be stored for energy analysis. The model offers integration with external systems by MODBUS RTU protocol and an on-board RS485 serial communication port.
Product Features
1. Each loop meter can measure the current combined energy, individually measure current, voltage, energy, power and electricity consumption of current month,
2. Recording and alarming events like undervoltage, overvoltage, power failure , etc.
3. Meter will automatically do the energy settlement on the auto meter reading day of each month. Data of last 24 months will be saved.
4. Storing data of current, power, energy, time once every minute
5. Freezing data of current, power, energy, time once every hour
6. Storing monthly freezing energy of each month, the storage quantity is 24 month
7. Data inside the meter can be read through RS485 interface
8. Supporting broadcast time calibration. Remote time calibration can be realized through RS485 interface
9. Function of remote communication, telemetry, remote monitor, remote regulation
Product Parameters
EM613005 | Din Rail DC Measuring Device |
Reference voltage | DC8V-48V (Simultaneous power supply during measurement) measurement |
Current | 10~240A |
Operation temp. | -20℃~+70℃ |
Accuracy class | Cl.1.0 |
Average humidity | 75% |
Relative humidity | 95% |
Communication | RS485 Communication |
Communication protocol | DTL645/Modbus RTU |
Impulse constant | 1000 imp/kWh |
LCD display | LCD 6+2 |
Power consumption | ≤0.4W,≤8VA |
Standard compliant | GB/T 17708-2017 Static DC Energy Meter |
Product Dimension
Product Application
-
![EM613001 10-240A Multifunction Data Logger Solar PV DC 40-400V Power Watt Energy Meter with Shunt]( "EM613001 10-240A Multifunction Data Logger Solar PV DC 40-400V Power Watt Energy Meter with Shunt")

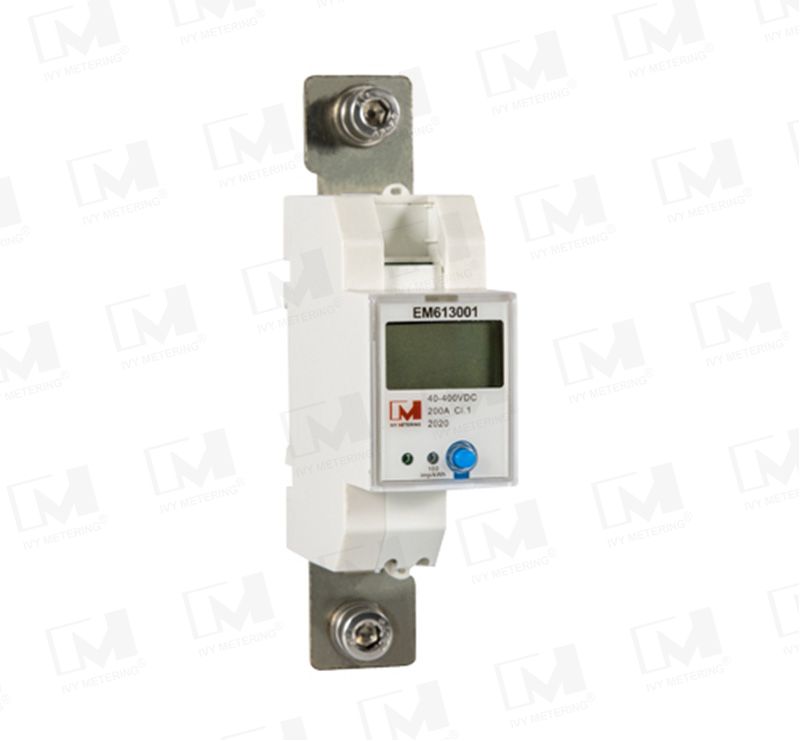

EM613001 10-240A Multifunction Data Logger Solar PV DC 40-400V Power Watt Energy Meter with Shunt -

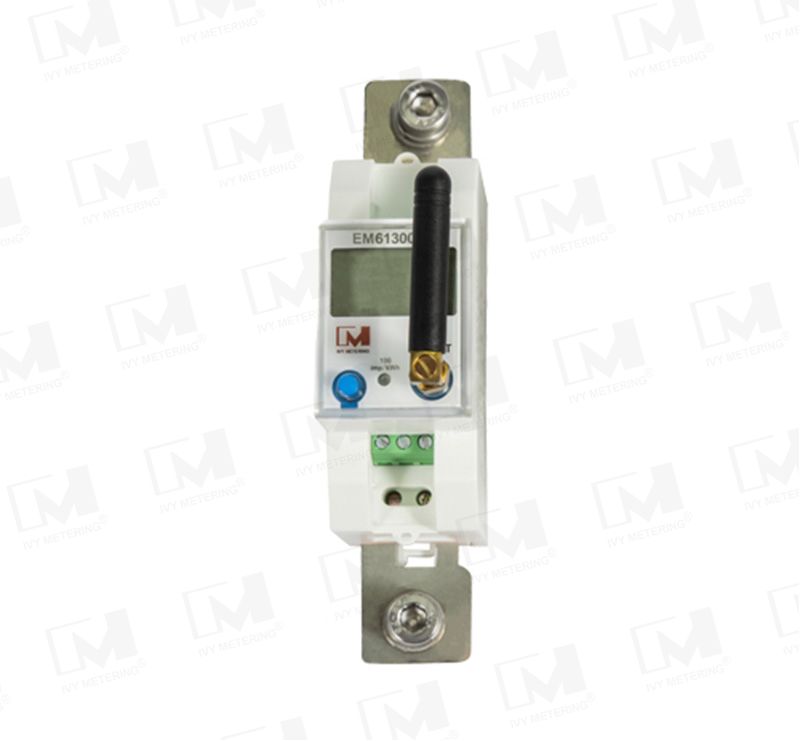

![EM613002 LCD Bi-directional 5-1000V DC Voltage Input DC Solar Power Watt Energy Meter for PV Monitoring]( "EM613002 LCD Bi-directional 5-1000V DC Voltage Input DC Solar Power Watt Energy Meter for PV Monitoring")
EM613002 LCD Bi-directional 5-1000V DC Voltage Input DC Solar Power Watt Energy Meter for PV Monitoring -
![EM613005 12V 24V 36V 48V Battery Monitor Digital Shunt Solar DC Electricity Meter for Off-Grid System]( "EM613005 12V 24V 36V 48V Battery Monitor Digital Shunt Solar DC Electricity Meter for Off-Grid System")

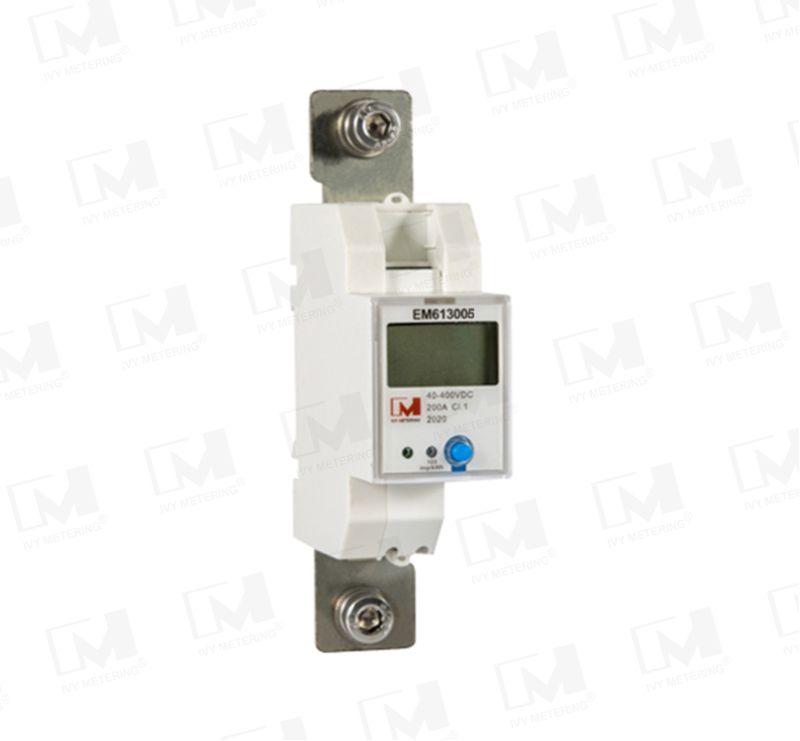

EM613005 12V 24V 36V 48V Battery Monitor Digital Shunt Solar DC Electricity Meter for Off-Grid System -
![EM619002 0-100A 5-1000V Off-Grid Solar Battery Din Rail Bidirectional RS485 Modbus DC Energy Monitor]( "EM619002 0-100A 5-1000V Off-Grid Solar Battery Din Rail Bidirectional RS485 Modbus DC Energy Monitor")

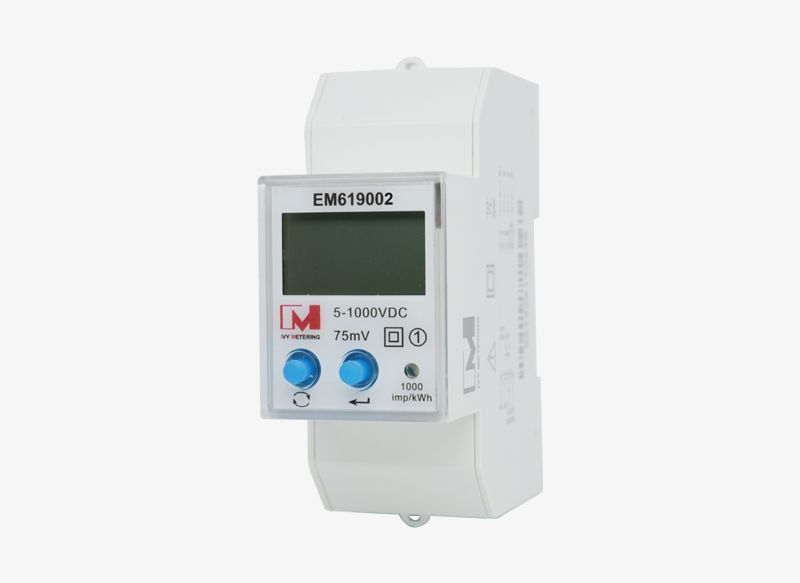

EM619002 0-100A 5-1000V Off-Grid Solar Battery Din Rail Bidirectional RS485 Modbus DC Energy Monitor
