IM-NE801A IEC61810-1 EV Charger Disconnect Breaker 40A 230VAC 12V Coil DPST-NO PCB 2 Pole Power Relay

- Mounting Type: PCB Mounted Through Hole

- Contact Arrangement: 2 form A (NO)

- Rated Coil Voltage: 12VDC

- Maximum Contact Voltage: 277VAC

- Contact Gap: 3mm (@4kV Withstand Voltage)

- Number of Operations: 50,000 cycles @32A, 230-250V

- Contact Resistance/load Category: CC2

- Short Response Time

- Comply with UL, TUV Certified, IEC 61851-1/IEC 61810-1/IEC 62955 Standard

- The Contact Spacing is Large, and the Withstand Voltage Reaches 4500VAC

- Suitable for American/EU Standard Charging Piles

Inquire Now Next Product

Product Details

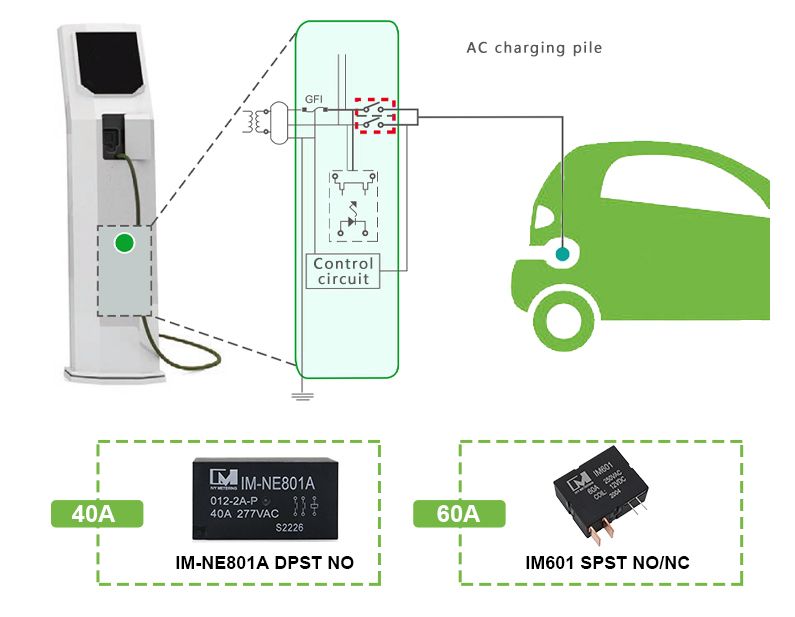

IM-NE801A Used in EV Charger

EV-Charging is carried out via wall charging stations (wall boxes) or by using charging cables with integrated electronics (IC-CPD). Products that are used here must comply with current standards, such as IEC62752 for IC-CPD mode 2 charging, or with IEC61851-1 for charging by mode 3 for wall boxes. These standards have stringent requirements, for example, concerning the ability to withstand significant short circuits.

Fortunately for hardware designers of EVSE systems, IVY's IM-NE801A power relay was developed specifically for use by IEC61810-1, more importantly, to meet the exceedingly stringent short-circuit withstand-current requirements of this standard.

IM-NE801A IEC61810-1 1PH 230VAC 32A EV Charging Relays 40A 12V Coil DPST NO PCB 2 Pole Power Relay

Product Feature

- Mounting type: PCB mounted through hole

- Contact arrangement: 2 form A (NO)

- Rated coil voltage: 12VDC

- Maximum contact voltage: 277VAC

- Contact gap: 3mm (@4kV Withstand Voltage)

- Number of operations: 50,000 cycles @32A, 230-250V

- Contact resistance/load category: CC2

- Short response time

- Comply with UL, TUV certified, IEC 61851-1/IEC 61810-1/IEC 62955 standard

- The contact spacing is large, and the withstand voltage reaches 4500VAC.

- suitable for American/EU standard charging piles

Product Parameters

Specification	Weight		≈70g
	Continuous Current		40A
	Contact Form		2A
	Contact Material		AgSnO2
	Max. Switching Voltage		277VAC
	Initial Contact Resistance		10mΩ (at 20A)
	Insulation Resistance		100MΩ,at 500VDC,50% RH
	Mechanical Endurance		1*10⁶cycles
	Electrical Endurance		510⁴cycles(32A 230V) 210⁴cycles(40A 230V)
	Dielectric withstanding voltage	Across Open Contact	4000VAC 1min
		Coil to Contact	4000VAC 1min
	Pick-up & Release Time		30ms. typical/10ms. typical
	Environment Temperature		Operation: -40℃~85℃
			Storage: -40℃~125℃
	Vibration		10-40Hz,DA1.27mm, 40-70Hz:5g 70-100Hz:DA0.5mm,100-500Hz:5g
	Shock Resistance:		20g, 11ms
	Dielectric Strength		500Vrms, 1min

Product Dimension

Product Application

• Photovoltaic Power Generation Systems (Solar Inverter)

• EV Charging Systems & EVSE Design

• Industrial Automation Applications

• UPS

IM-NE801A IEC61810-1 1PH 230V 32A EV Charging Relays 40A 12V Coil DPST NO PCB 2 Pole Power Relay
