Charging & Metering Parameters | Charging Type | AC Charging (Three-Phase & Single-Phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%(three-phase); | |
Charging Current | Imax 32A | |
Charging Power | Max 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Residual Current Protection Parameters | AC Residual Current Threshold | 30mA |
DC Residual Current Threshold | 6mA | |
Communication Parameters | Communication Methods | 4G |
Bluetooth 4.0-5.0(2.4 GHz) | ||
NFC(for RFID card charging) | ||
RS485(for parameter configuration, etc.) | ||
Communication Protocol | IVY-BUS Protocol(IVY Proprietary Protocol) | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -20~70ºC | |
Storage Temperature | -40~80ºC | |
Humidity | Average≤75%,MAx≤95% | |
Protection Level (or IP Rating, if applicable) | Determined by the charging pile enclosure,module itself is IP30IP30 | |
Compatible Connector Types | Type 1 (SAE J1772);Type 2 (IEC 62196-2) |

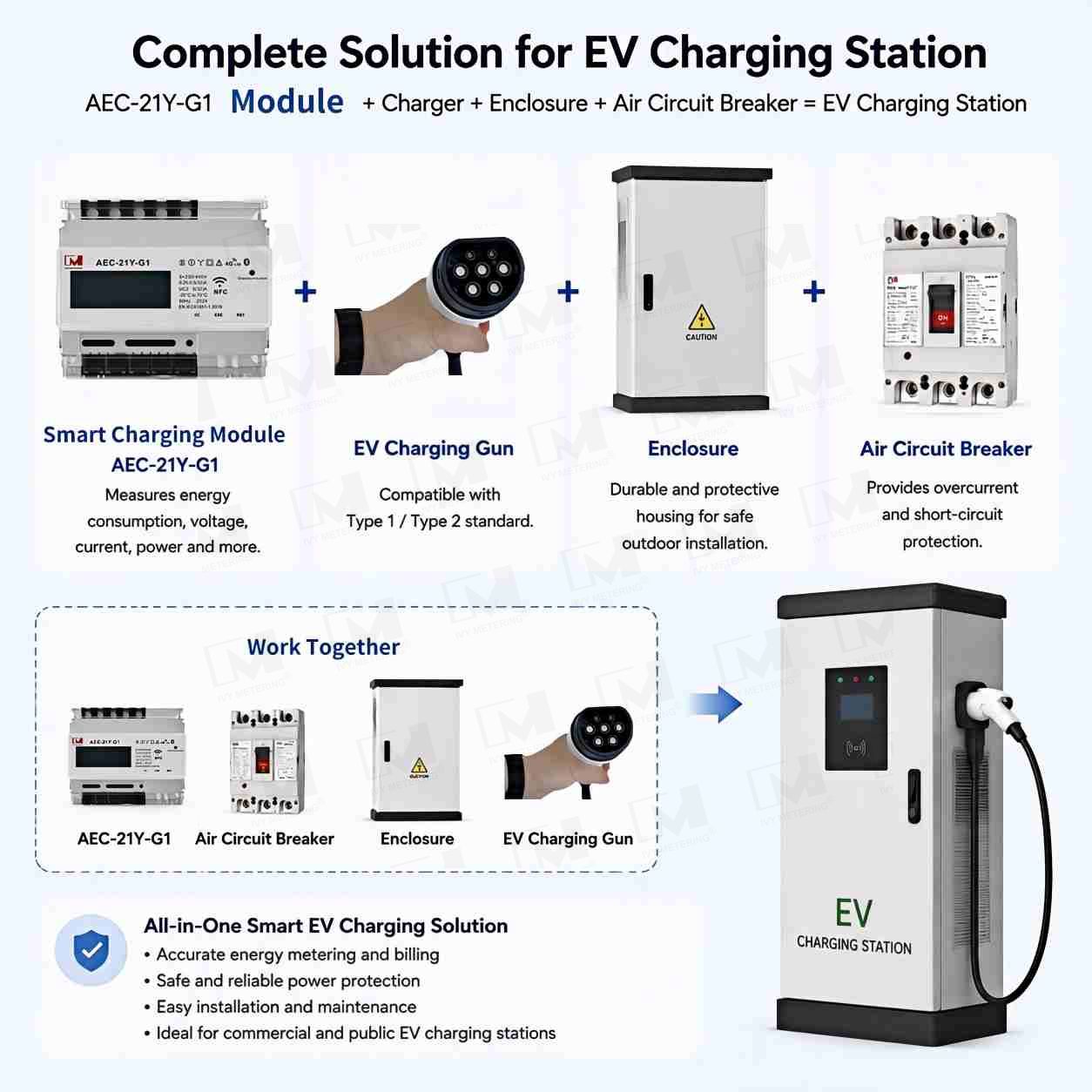

Electric Vehicle Charge Controller 32A 22kW RS485 4G for EV Charging Station
·High Power & Phase Versatility: Max 21kW AC charging, supporting both single-phase (230V) and three-phase (3*230/400V).
·Diverse Communication Options: Integrates 4G, Bluetooth, NFC, and RS485 for broad connectivity.
·Extensive Safety Protection Suite: Comprehensive safety features include emergency stop, leakage, lightning, overheating, grounding, short circuit, over/under-voltage, surge, electrostatic, and battery-full auto-stop.
·Precise Smart Metering: Accuracy Class 1.0.
·Broad Charging Gun Compatibility: Adaptable to Type 1(SAE J1772) and Type 2(IEC 62196-2) charging standards.
·Robust Regulatory Compliance: IEC 61851-1:2019, CE-EMC, CE-LVD, and MID.
·All-in-One Integrated Design: Combines charging, metering, leakage protection, and communication functions into a single module.
·Wide Environmental Operating Range: Operates reliably from -25~70°C.
·Clear LCD Data Display: Provides real-time charging voltage, current, energy, and duration on a dot matrix LCD.
AEC-21Y-G1 Parameters
Product Function
Safety protection function:
leakage protection, grounding protection, short circuit protection, overload protection, overcurrent protection, overvoltage protection, undervoltage protection, surge protection, etc.
Metering function: built-in power metering, real-time reading of power, real-time upload
Payment function: card payment/mobile payment/prepaid payment, etc.
Communication function:
1.Remote communication function: with 4G remote communication, can achieve control, authorization, payment, setting and other functions
2.Convenient card swiping function: using NFC card reading method, can pay, can authorize charging.
3.Parameter setting function: use RS485 and Bluetooth to set parameters
Display function:LCD display: can display many parameters; Charging status indication; Page view function
Product Application
It is widely used in home garages, commercial parking lots, community charging stations and long-term rental operation scenarios, and is suitable for various new energy vehicle models. With high security, intelligent management and flexible scalability as its core advantages, it helps users build an efficient and convenient charging service system and provide reliable power support for green travel.
