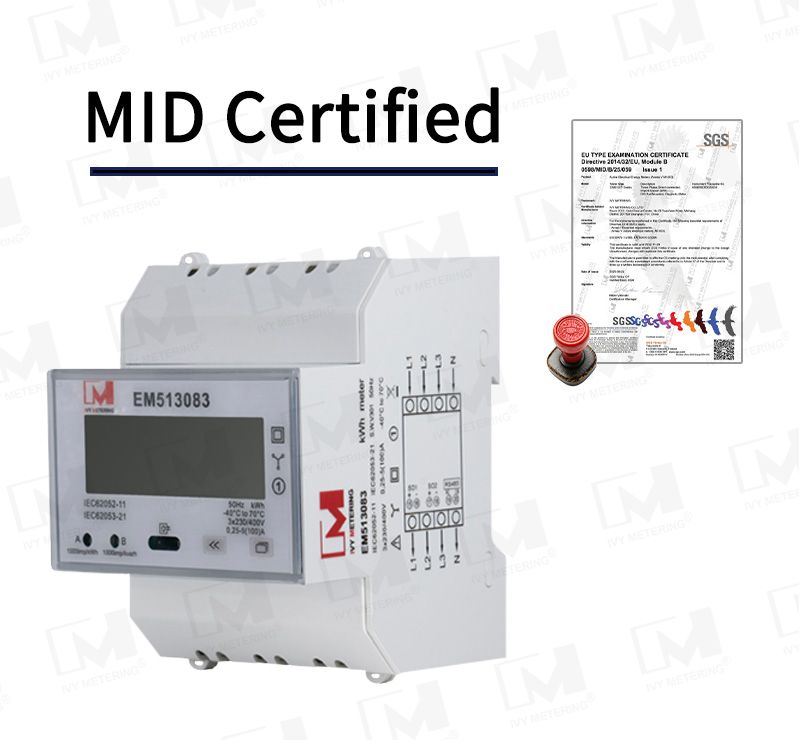

100A EV Charger Meter Three Phase RS485 with MID Certificate and 115200 Baud Rates

·CE, MID (B+D) Certified Meter

·Din Rail Mounted Direct connection

·Real-time reading of electricity meter data through RS-485

·Bidirectional energy metering

·Active/reactive energy and forward and reverse measurement

·Accuracy class: B (1%)

·100A 3Ph*230 V / 400 V

·Max 115200bps

·Multi-tariffs

·Meet with RE Test

Product Details

100A EV Charger Meter Three Phase RS485 with MID Certificate and 115200 Baud Rates


·Measurable instantaneous parameters include voltage, current, active power, reactive power, apparent power, frequency, and power factor.

·Measurable power parameters include: total active power, total reactive power, total forward active power, total reverse active power, T1-T4 forward active power, T1-T4 forward reactive power, T1-T4 reverse active power, T1-T4 reverse reactive power, T1-T4 active power, T1-T4 reactive power, T1-T4 four-quadrant reactive power, resettable total active and reactive power, forward and reverse active and reactive demand, and maximum demand, etc.

·LCD backlight display, data scrolling display, and manual page turning through buttons.

·Supports RS485 communication and reads meter parameters.

·Standard guide rail installation.

Parameter

Nominal Voltage (Un) 3*230(400)VAC
Current 5(100)A
Starting Current0.4% Ib
Power Consumption< 12VA, < 1W
Accuracy ClassClass B
Frequency50Hz
Pulse Output (LED) 1000 imp/kWh, 1000 imp/kvarh
DisplayLCD 6+2 digits (Max 999999.99 kWh)
Operating Temperature-40°C to +70°C
Relative Humidity≤75% (Non-condensing)
Protection RatingIP51 (Indoor use only)
Reference Standard(s)EN50470-1 / EN50470-3


·Support RS485 communication, Modbus protocol, and DLT645-2007 protocol compatibility;

The meter can read the meter and parameters through RS485 communication.

·Baud rate 9600\19200\38400\115200 can be set, the default is 9600bps.

·Default setting 9600/NONE /8/1.


EM513083 Three Phase Four Wires 3*230(400)V RS485 MID Smart Energy Meter for Commercial Building

·The enclosure is sealed; do not open the meter enclosure. If the enclosure has been opened, the warranty is void.

·The meter should be installed in an indoor or outdoor meter box.

·According to Directive 2014/32/EU, the meter is intended to be installed in the mechanical environment 'M1' with low shock and vibration levels.

·According to Directive 2014/32/EU, the meter is intended to be installed in the electromagnetic environment 'E2'.

·Isolation safety information: The meter uses local power generation, and the main power supply needs to be disconnected before installation and removal. Improper operation may cause personal injury or equipment damage.

·This meter is a direct meter and can be directly used with a UC rating, i.e., UC2 (≤100A)


EM513083 Three Phase Four Wires 3*230(400)V RS485 MID Smart Energy Meter for Commercial Building
