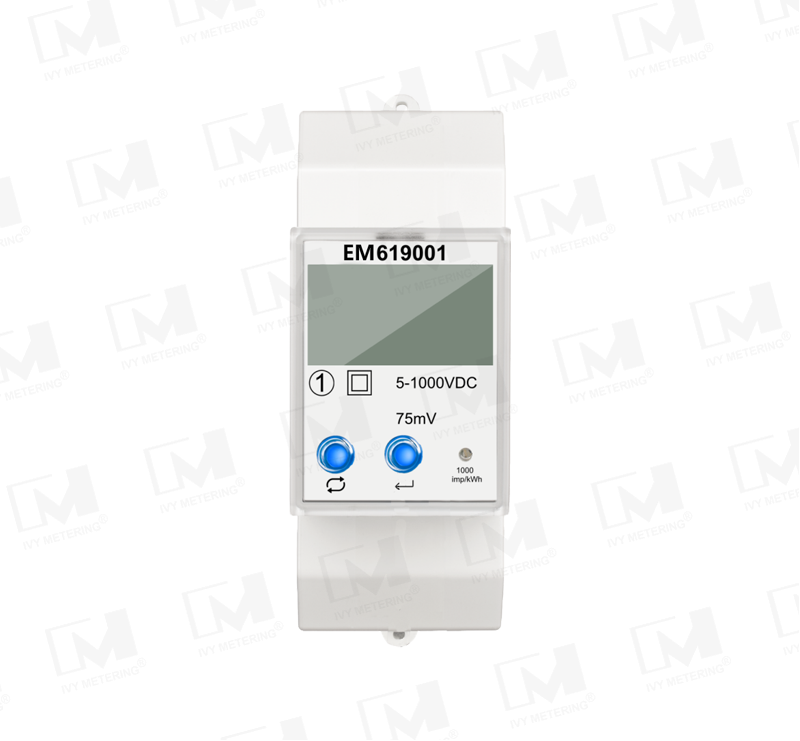

EM619001 1000 LVDC solar panel single phase 75mV shunt DC 1000V din rail energy meter EV chargeEM619001 1000 LVDC solar panel single phase 75mV shunt DC 1000V din rail energy meter EV charge

EM619001,Which is a very useful product in computing the power generated through Solar Power System.This DC ENERGY METER shall read the energy produced through Solar Array, which is vital to arrive the efficiency as well as to calculate & ascertain the payback period of the system.The DC energy meter is capable to read DC voltage, DC current, KW, KWh. It is designed for scenarios such as DC panel, charging pile and telecom base stations. This meter series can measure voltage, current, power and active energy in DC system.It be used as local display and used in measuring system.

Inquire Now Next Product

Product Details

Product Features

Din Rail Mount; Shunt Sampling; Class 1

Measuring Current up to 2000A

Voltage Input DC5~1000V; Current Input 75mV(max)

Bi-directional Measurement

RS485 Communication with DTL645/Modbus Protocol

Over-current/ Over-load Alarm

LCD Backlight, Multi-tariffs(RTC), Monthly Records

Built-in Auxiliary Relay for Over-current Disconnect

Product Parameters

EM619001	Din Rail DC Measuring Device
Reference voltage	DC 5V-1000V
Current	Measuring Current up to 2000A
Self-powered power supply	85~300V AC/ 100-300V DC
Current / Voltage accuracy	0.5%
Operation temp.	-25℃~+70℃
Active power accuracy	1.0%
Active accuracy class	Cl.1.0
Humidity	95%
Communication	RS485 Communication
Communication protocol	DTL645/Modbus RTU
Impulse constant	1000 imp/kWh
LCD display	LCD 6+2
Power consumption	≤0.4W,≤8VA
AC withstand voltage	4400V/min

Product Dimension

Product Application

EM619001 rail-mounted DC power meter with 1000V DC input channels, designed for LVDC application-telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system.
