MD0630T41A-1 EV Charging Protection RCMU Cable Type 30mA AC 6mA DC Residual Current Detection RCD Sensor
Charging of electric vehicles at a standard wall socket or a wall box requires protection devices against DC fault currents to avoid electric shock. Installed type A residual current circuit-breakers (RCCBs) are unable to identify and deactivate DC fault currents. IVY differential current sensors offer the opportunity to save the cost and space for a costly type B RCD in IC-CPD or wall boxes.

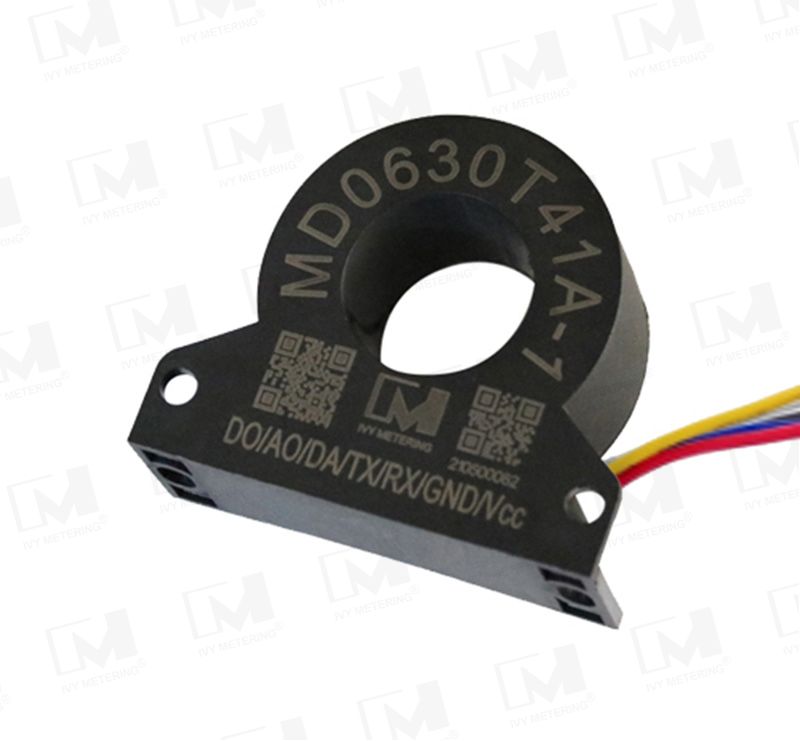

MD0630T41A-1 is an AC DC leakage current sensor also called residual current monitor/residual current device with high sensitivity, mA level measurement, small size, integrated design, cable/horizontal installation. When the fault current reach the threshold, it can output the signal and cut off the circuit via a latching relay or break.
Product Description
"MD0630T41A-1" rcd protection residual current sensor is designed to detect even smallest residual currents. Together with evaluation units they are used for monitoring and protection of electrical circuits. for detection of residual currents in 1- / 3-phase AC systems
IEC standards residual current monitoring unit, its typical application is in a EV charger, for the detection of small both DC and AC residual current. Type A (RCD) + 6ma dc residual current module combination for EV charger pile protection, all-in-one highly integrated digital output. Applicable for the standard IEC 62955-2018 residual current requirements for RDC-PD. Applicable for GB/T 22794 and adapted to DC 6mA test.
Product Features
mA Level Measurement,DC 2-15mA, AC 3-100mA (Settable)
Integrated Design, Cable/Horizontal Type Installation
Type B(Type A+DC 6mA) Detectable, 3 Alarm Outputs
Dielectric Strength of 4000Vac
Built-in Opticalcoupler Output Switch Indication
TUV IEC62955:2018 & CE-EMC Certification
EN-61000-6-3:2007+A1, EN IEC 61000-6-1:2019, EN 61000-6-3:2007+A1, EN IEC 61000-6-1:2019 Standard
Custom Makeable according to Individual Requirements
Product Parameters
Voltage Input | 12V±20% (Current about 12mA) |
Measurement Current Range | DC current:2~15mA; Max.AC current:3~100mA (Default threshold: DC 6mA, AC 30mA) |
Accuracy | DC±0,2mA,AC±0.3mA@25℃ |
Three-ways output | DC alarm, AC alarm, AC/DC alarm |
Function | Current value readable and settable |
Operation temperature | -25~+80℃ |
Appearance | |
Installation | Cable/Horizontal Installation |
Product Application

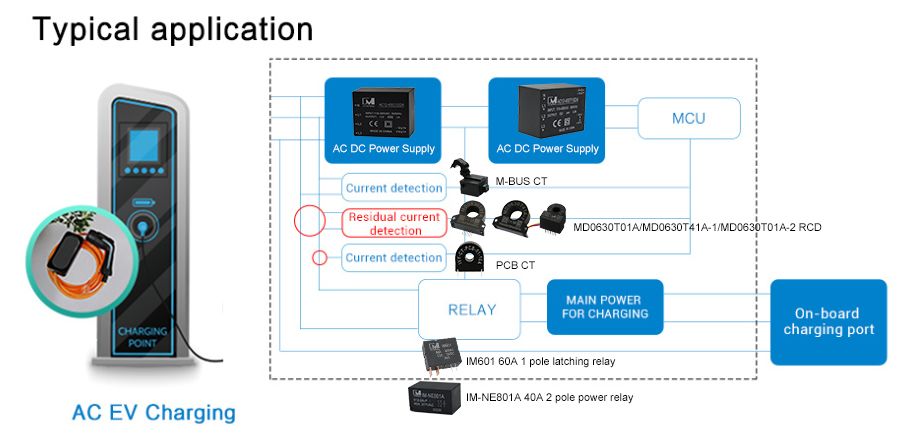

As the residual current protective devices (RCD) is widely used in low-voltage distribution system to prevent electric shock accidents, leakage damage of electrical equipment and fire caused by electrical leakage. MD0630T41A-1 residual current monitoring module monitors and immediately stops electrical risks that can occur during EV charging. MD series which is an ideal protection device against different leakage currents in applications of electric vehicle charging, photovoltaic systems (solar panels), industrial device, medical device, new energy, DC screen, fire distribution cabinet, IOT field etc.
Product Dimension
-
