Charging & Metering Parameters | Charging Type | AC Charging (Three-Phase & Single-Phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%(three-phase); | |
Charging Current | Imax 32A | |
Charging Power | Max 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Residual Current Protection Parameters | AC Residual Current Threshold | 30mA |
DC Residual Current Threshold | 6mA | |
Communication Parameters | Communication Methods | 4G |
Bluetooth 4.0-5.0(2.4 GHz) | ||
NFC(for RFID card charging) | ||
RS485(for parameter configuration, etc.) | ||
Communication Protocol | IVY-BUS Protocol(IVY Proprietary Protocol) | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -20~70ºC | |
Storage Temperature | -40~80ºC | |
Humidity | Average≤75%,MAx≤95% | |
Protection Level (or IP Rating, if applicable) | Determined by the charging pile enclosure,module itself is IP30IP30 | |

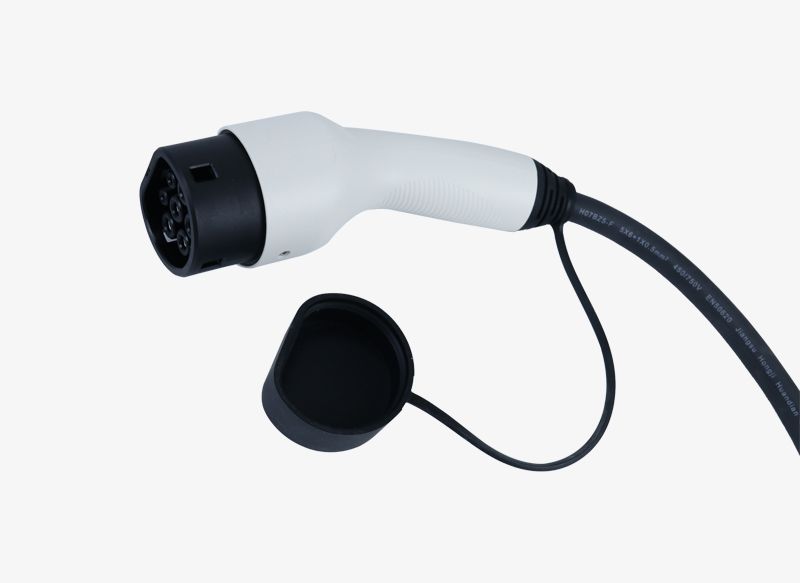

Compatible Connector Types | Type 1 (SAE J1772);Type 2 (IEC 62196-2) |

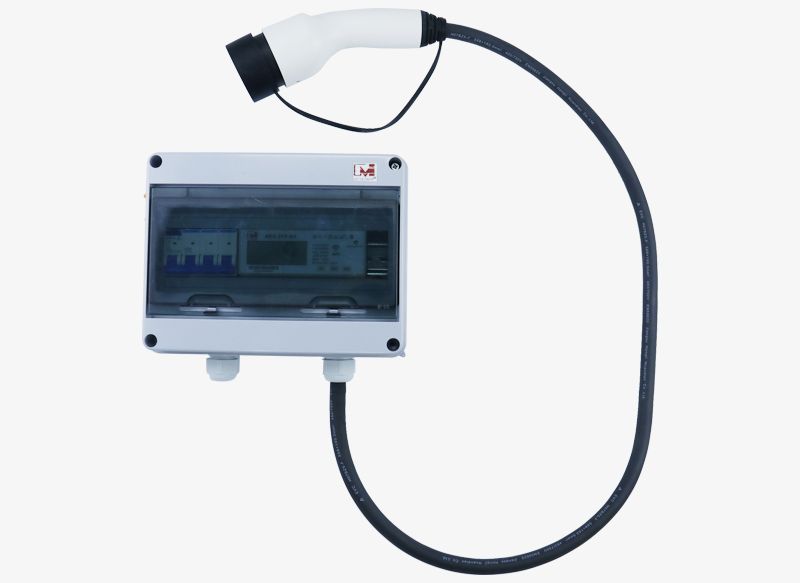

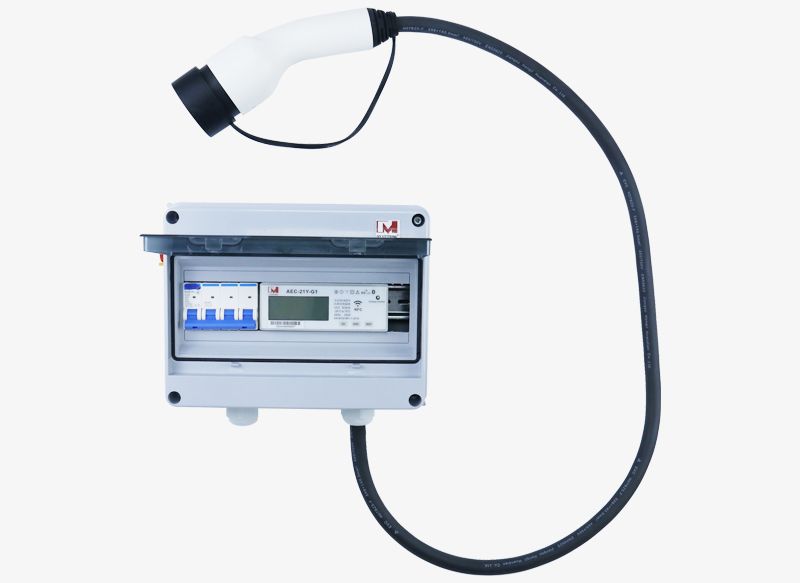

Wallbox EV Charger 16A/32A 11KW/21KW for Home Commercial Charging Station

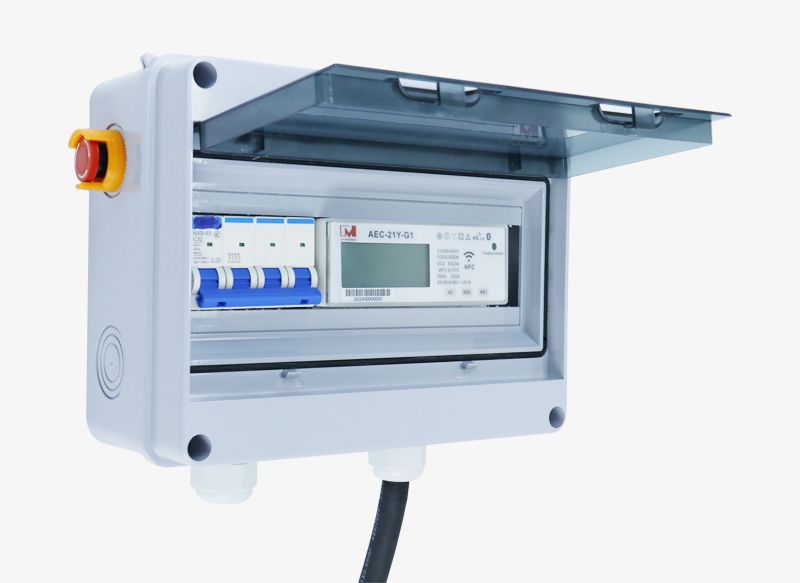

AEC-21Y-G1 wallbox ev charger designed to provide efficient and reliable charging for all types of electric vehicles. This unit comes with integrated leakage protection, Charging, Metering function. Integrated card payment, mobile payment and prepaid functions. With its single phase and three-phase charging capability, delivering up to 32A and 21kW. Support RS485 local communication and 4G remote communication to realize real-time monitoring and remote operation and maintenance of equipment; provide local dedicated/batch authorization mode, flexibly adapt to public or private scene management needs, and create APP platform for service management.
AEC-21Y-G1 Parameters
Product Function
All-in-One Charging Solution: It's designed as a core component for AC electric vehicle chargers, integrating charging, metering, and leakage protection.
Efficient Charging: Supports three-phase charging with a maximum current of 32A and power up to 21kW. It allows flexible switching between single and three-phase modes, adapting to different power environments.
Smart Communication & Management: Offers RS485 for local communication and 4G for remote monitoring and management. Supports local/batch authorization modes, catering to public or private management needs, and allows for custom APP platform creation.
Versatile Payment Options: Supports card payments, mobile payments, and pre-payment options.
