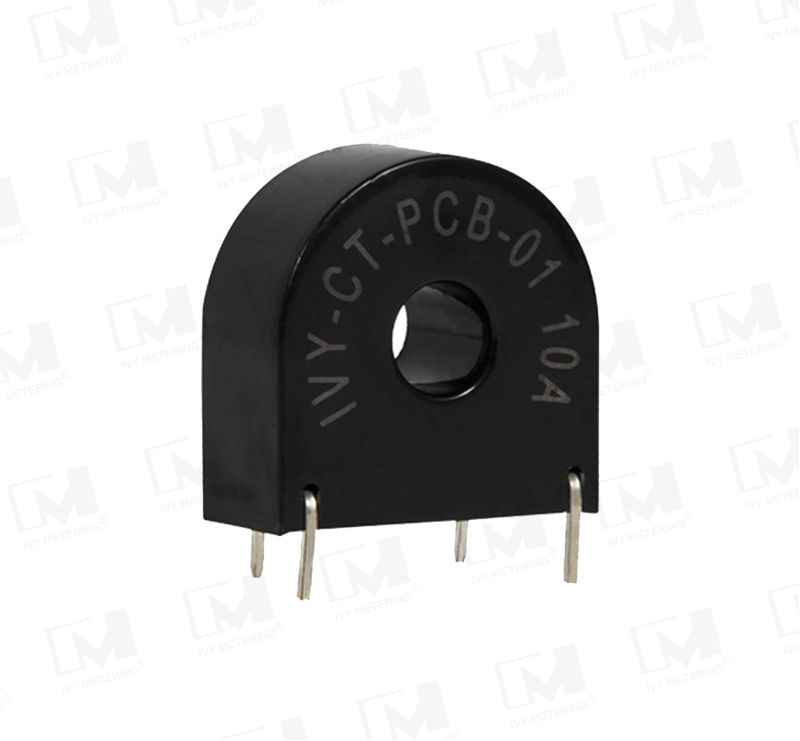

IVY-CT-PCB-01-10A PCB Mounted Current Transformer for EV Charger
IVY-CT-PCB-01-10A is a pcb mounted current transformer, the max current is 10A and the max current can also be made into 50A and 60A. The advantages of this PCB ct are: small size, high accuracy of 0.1 class, good consistency, 3000V dielectric strength, low phase error etc. They are mainly used for current and power sampling and measurement. This PCB current transformers are the most popular of all our current transformer ranges. High output voltage coupled with excellent linearity make the AC Series an ideal low-cost solution used extensively in EV chargers. IVY-CT-PCB-01-32A is the most popular choice for this application.
Product Features
High Linearity Over the Whole Current Range 1(10)A/10(60)A
Current Ratio 2000:1, Accuracy up to 0.1 Class
Ultracrystallite Material & Compact Size
Withstand Voltage No Less Than 3KV
Low Phase Error, Meet the standard IEC 62053, JB/T10665
Product Parameters
Primary Current（A） | Secondary Current（mA） | Resistance Rb （Ω） | Maximum Current（A） | Class | Frequency | ||||
1 | 0.5 | 10 | 10/60A | 0.1 | 50-60 Hz | ||||
Class | Current Error ±（%） | Phase Error ±(＇) | |||||||
0.1 | 0.01In | 0.05In | 0.01In | 0.05In | 0.2In | 1In | 2In | 3In | Imax |
0.2 | 0.1 | 15 | 8 | 5 | 5 | 8 | 5 | 5 | |
Product Dimension
Product Application
For some applications, PCB mount current transformers are very suitable, and they can be easily assembled on the print circuit board (PCB) of electrical measuring instrument, electrical protective devices, current sensing module,EV charger, smart electricity meters, test instruments, without the extra wire connecting. As high permeability nanocrystalline or amorphous core are adopted, the linearity of final CT is excellent and phase error is very low. PCB type DC immune current transformer can be easily mounted in the ev charging boards or other device. (32A & 63A EV charging)
