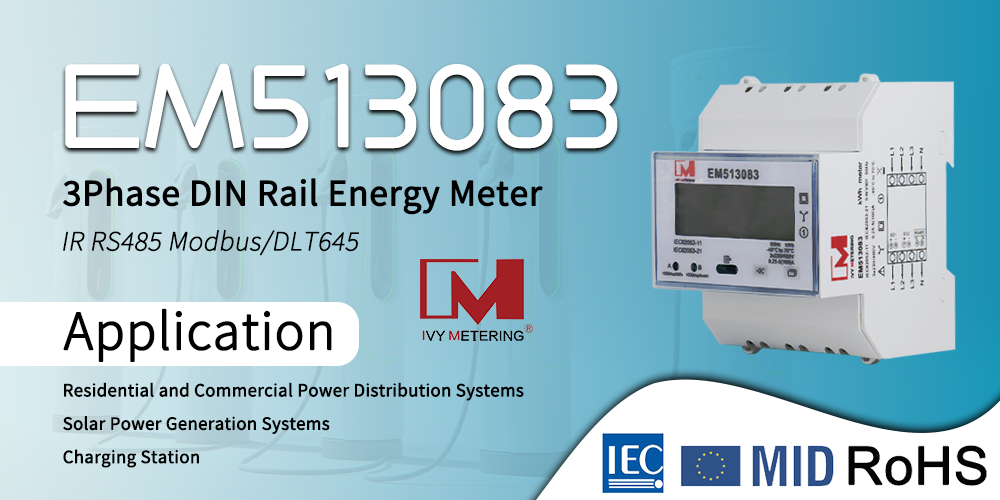

Three Phase RS485 MID Smart Energy Meter 100A 230/400V for EV Charger

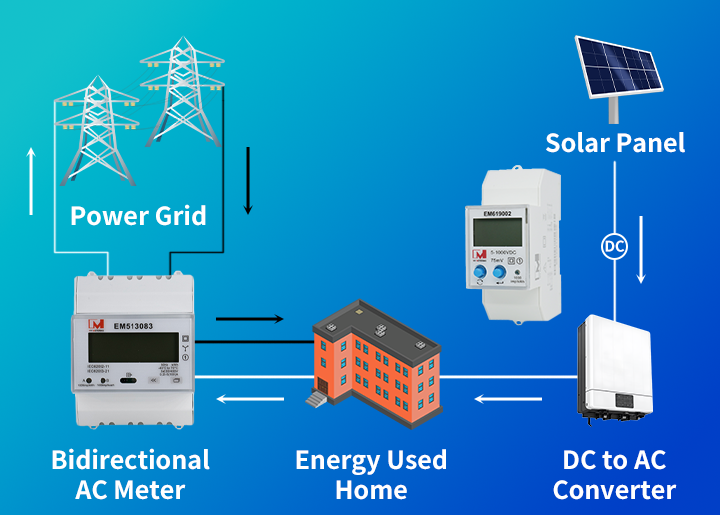

EM513083: A Versatile 100A Three-Phase DIN Rail Multi-function Energy Meter. Precisely measures instantaneous parameters like Voltage, Current, Active/Reactive/Apparent Power, Frequency, and Power Factor. Tracks comprehensive energy data including total, forward, and reverse kWh & kvarh, plus resettable energy and demand. Features flexible communication via Infrared (IR) and RS485 (supporting Modbus/DLT645 protocols) with selectable baud rates up to 115200. Includes two configurable SO pulse outputs (default 1000 imp/kWh & kvarh) for integration with external systems. Boasts a clear blue backlit LCD and user-friendly touch buttons for data navigation and configuring metering modes (also settable via RS485). Ideal for detailed submetering in commercial, industrial, or renewable energy monitoring systems.

Inquire Now Next Product

Product Details

EM513083 Three Phase Four Wires 3*230(400)V RS485 MID Smart Energy Meter for Commercial Building

·Measurable instantaneous parameters include voltage, current, active power, reactive power, apparent power, frequency, and power factor.

·Measurable power parameters include: total active power, total reactive power, total forward active power, total reverse active power, T1-T4 forward active power, T1-T4 forward reactive power, T1-T4 reverse active power, T1-T4 reverse reactive power, T1-T4 active power, T1-T4 reactive power, T1-T4 four-quadrant reactive power, resettable total active and reactive power, forward and reverse active and reactive demand, and maximum demand, etc.

·LCD backlight display, data scrolling display, manual page turning through buttons.

·Supports RS485 communication and reads meter parameters.

·Standard guide rail installation.

Parameter

Nominal Voltage (Un)	3*230(400)VAC
Current	5(100)A
Starting Current	0.4% Ib
Power Consumption	< 12VA, < 1W
Accuracy Class	Class B
Frequency	50Hz
Pulse Output (LED)	1000 imp/kWh, 1000 imp/kvarh
Display	LCD 6+2 digits (Max 999999.99 kWh)
Operating Temperature	-40°C to +70°C
Relative Humidity	≤75% (Non-condensing)
Protection Rating	IP51 (Indoor use only)
Reference Standard(s)	EN50470-1 / EN50470-3

·Support RS485 communication, Modbus protocol, and DLT645-2007 protocol compatibility;

The meter can read the meter and parameters through RS485 communication.

·Baud rate 9600\19200\38400\115200 can be set, the default is 9600bps.

·Default setting 9600/NONE /8/1.

EM513083 Three Phase Four Wires 3*230(400)V RS485 MID Smart Energy Meter for Commercial Building

·The enclosure is sealed; do not open the meter enclosure; if the enclosure has been opened, the warranty is void.

·The meter should be installed in an indoor or outdoor meter box.

·According to Directive 2014/32/EU, the meter is intended to be installed in the mechanical environment 'M1' with low shock and vibration levels.

·According to Directive 2014/32/EU, the meter is intended to be installed in the electromagnetic environment 'E2'.

·Isolation safety information: The meter uses local power generation, and the main power supply needs to be disconnected before installation and removal. Improper operation may cause personal injury or equipment damage.

·This meter is a direct meter and can be directly used with a UC rating, i.e., UC2 (≤100A)
