Multi Tariff Three Phase CT Meter with RS485
· AC Voltage (Un): 3*230V/400V
· Current: 5(6)A
· Accuracy: Class C (0.5 Level)
· Frequency: 50/60Hz
· Pulse Output: 10000 imp/kWh
· Starting Current: 5mA
· Operating Temperature: -40°C to 70°C
· Protection Class: IP51 (Indoor use only)
· Standards: EN 50470-3, IEC 62052-11:2020, IEC 62053-21:2020
Product Introduction

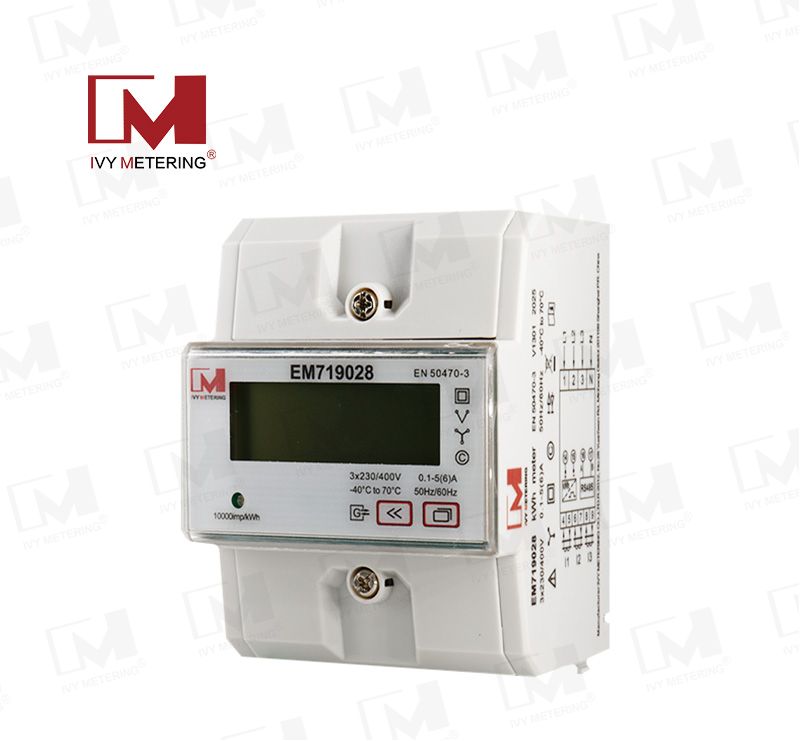

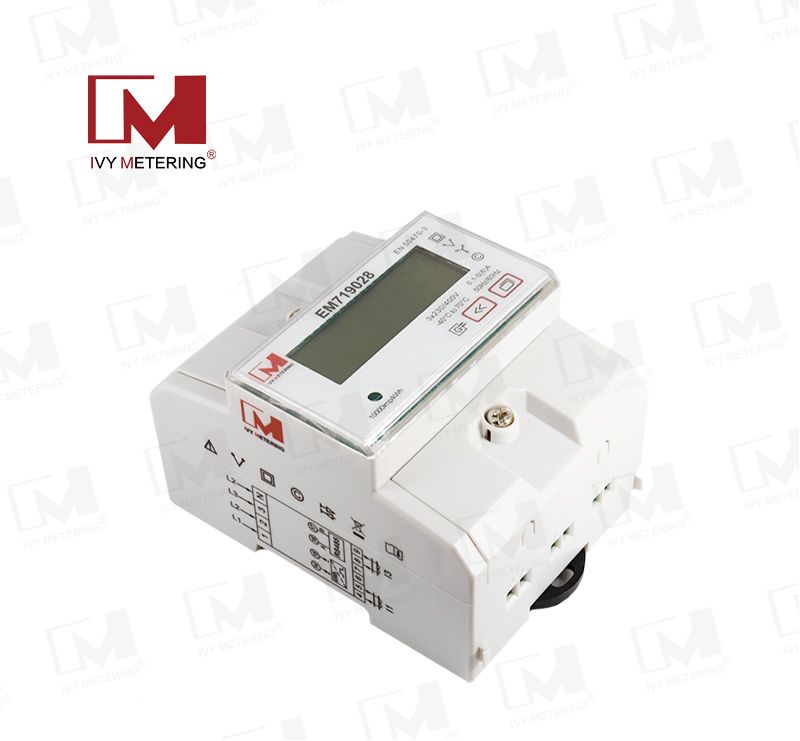

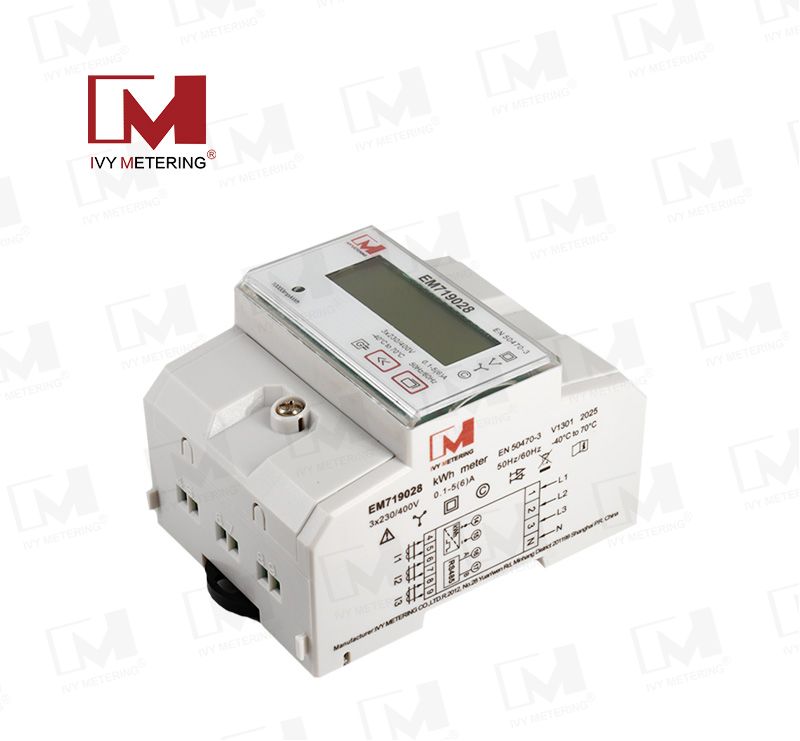

The IVY EM719028 is a versatile and accurate three-phase four-wire CT-type energy meter. Housed in a standard DIN rail mountable enclosure, it is perfectly suited for monitoring energy consumption in commercial and industrial power distribution systems.
With its integrated RS-485 communication port supporting both Modbus-RTU and DLT/645 protocols, the EM719028 can be easily integrated into building automation and energy management systems for remote data reading and parameter setting. A clear, backlit LCD and a front-panel touch button provide a user-friendly interface for on-site monitoring of key electrical values.
Main Features
Comprehensive Measurement: Can measure a wide range of parameters, including voltage, current, frequency, active/reactive power, and forward/reverse active/reactive energy.
Advanced Communication: Equipped with an RS-485 communication port that supports both Modbus and DLT/645 protocols, allowing for flexible remote data acquisition and configuration.
High Accuracy: Adheres to Class C (0.5 Level) accuracy, ensuring reliable and precise energy measurement.

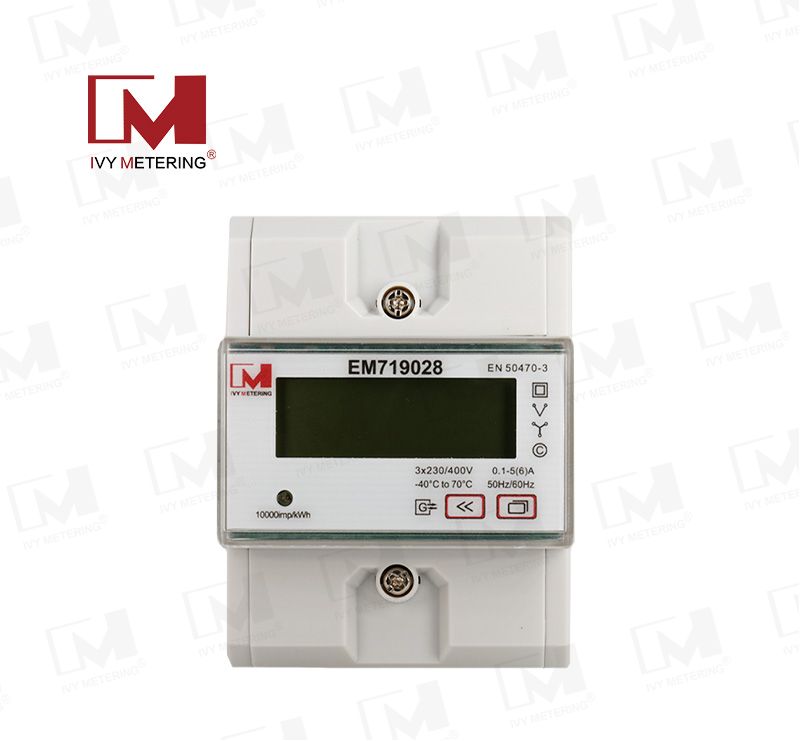

User-Friendly Interface: Features LCD with a configurable backlight & a touch button for easy manual scrolling through displayed data.

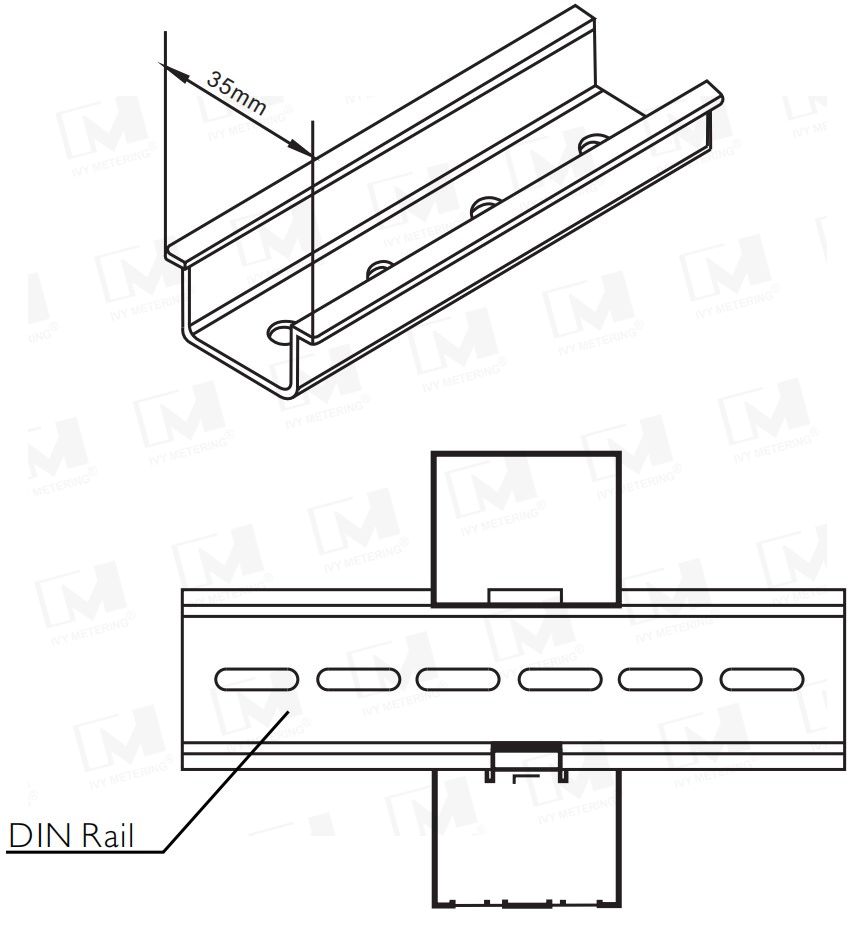

Convenient Installation: Standard 35mm DIN rail mounting for quick & easy installation in electrical cabinets & distribution boards.

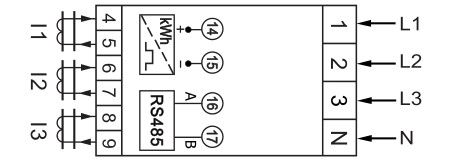

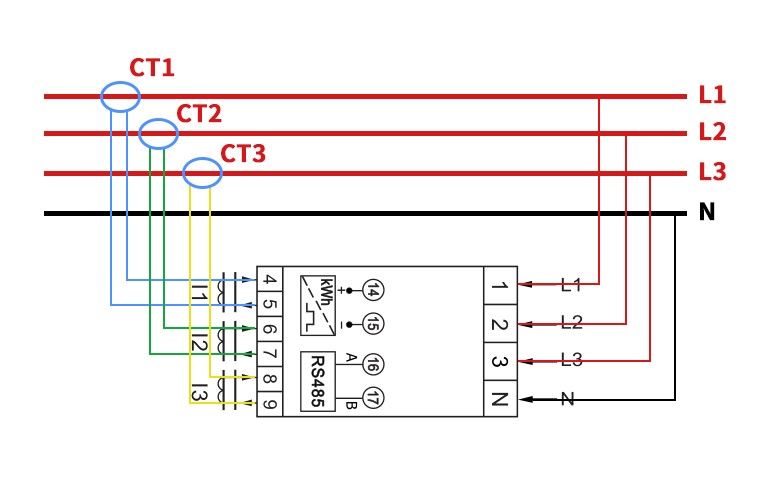

CT Operated: Intended for use with external current transformers, making it suitable for a wide variety of measurement applications with a maximum meter load of 6A.
Multi-Tariff: Supports multiple tariff rates (4 default tariffs) for flexible energy cost management.

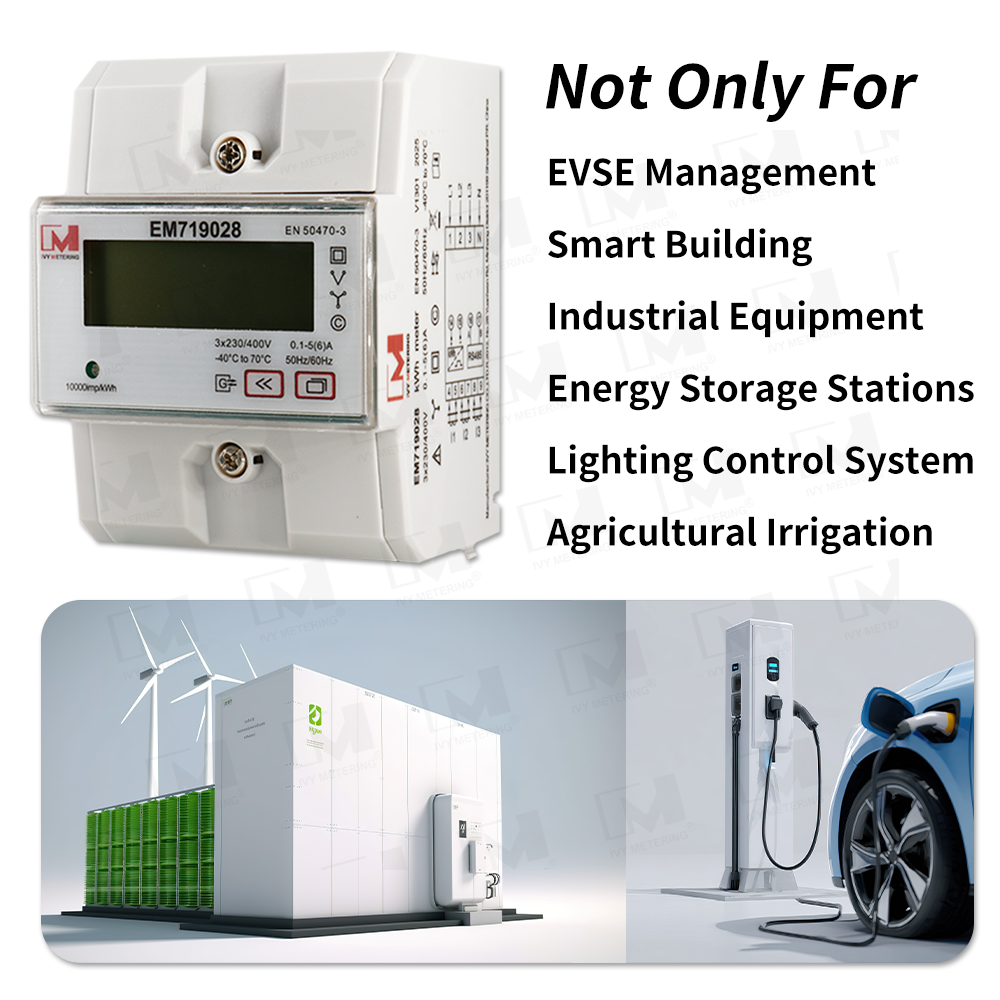

Application Scenarios
The EM719028's versatility and communication capabilities make it an ideal choice for a wide range of sub-metering and energy management
Commercial and Tenant Sub-metering: Accurately monitor and bill energy usage for individual tenants in office buildings, shopping malls, and multi-unit residential complexes. It integrates seamlessly into Building Management Systems (BMS) for centralized monitoring.
Industrial Energy Management: Track the power consumption of heavy machinery, production lines, and motor control centers (MCCs). This helps in allocating energy costs to different departments and identifying opportunities for efficiency improvements.
Data Center Power Monitoring: Essential for monitoring energy consumption in Power Distribution Units (PDUs) and for tracking the Power Usage Effectiveness (PUE) of data centers and server rooms.
Renewable Energy Systems: Monitor the performance and energy production of three-phase solar PV installations, wind turbines, and other renewable energy sources to ensure they are operating at peak efficiency.
Energy Audits and Monitoring: A key tool for energy consultants and facility managers to perform detailed energy audits, verify savings from retrofits, and continuously monitor critical energy loads.
Electric Vehicle(EV) Charging Stations: Ideal for measuring the energy delivered by three-phase commercial EV charging infrastructure, enabling accurate billing and effective load management.
