Compact Size Type A RCD Residual Current Sesnor for India Martket

Product Introduction

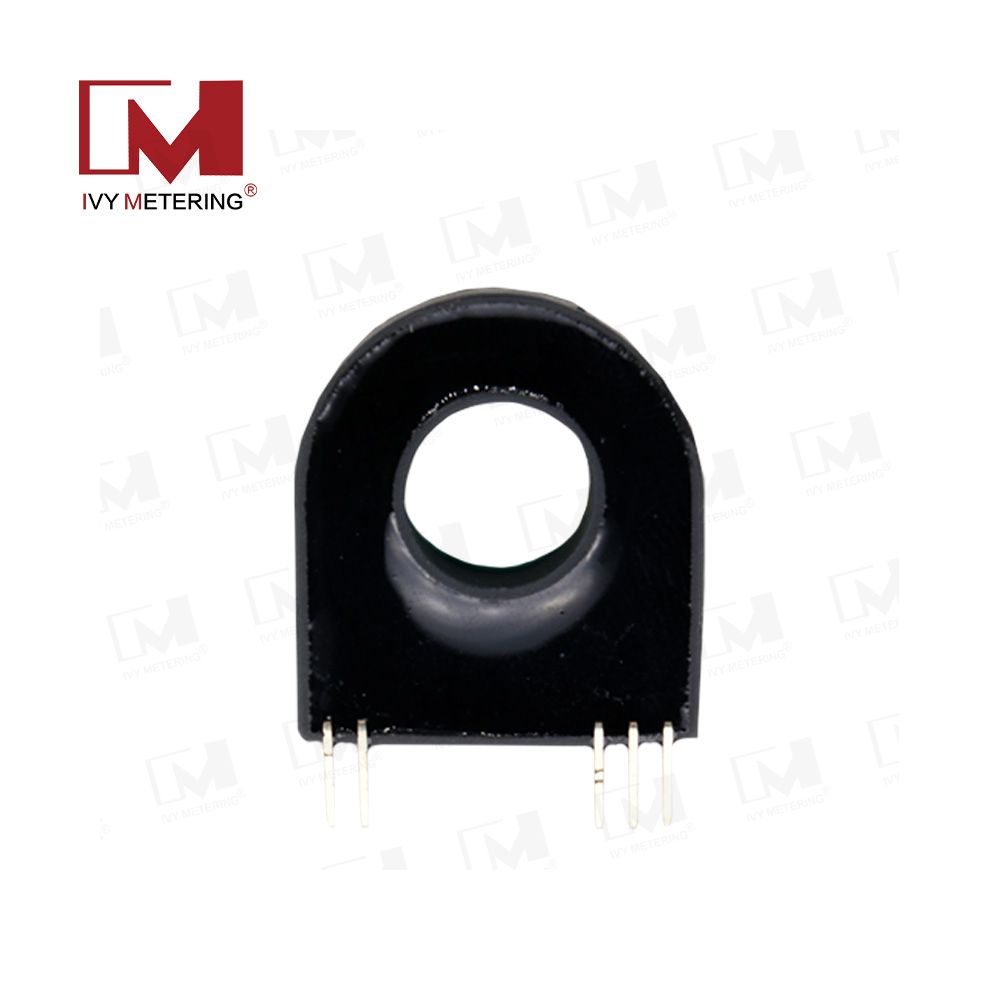

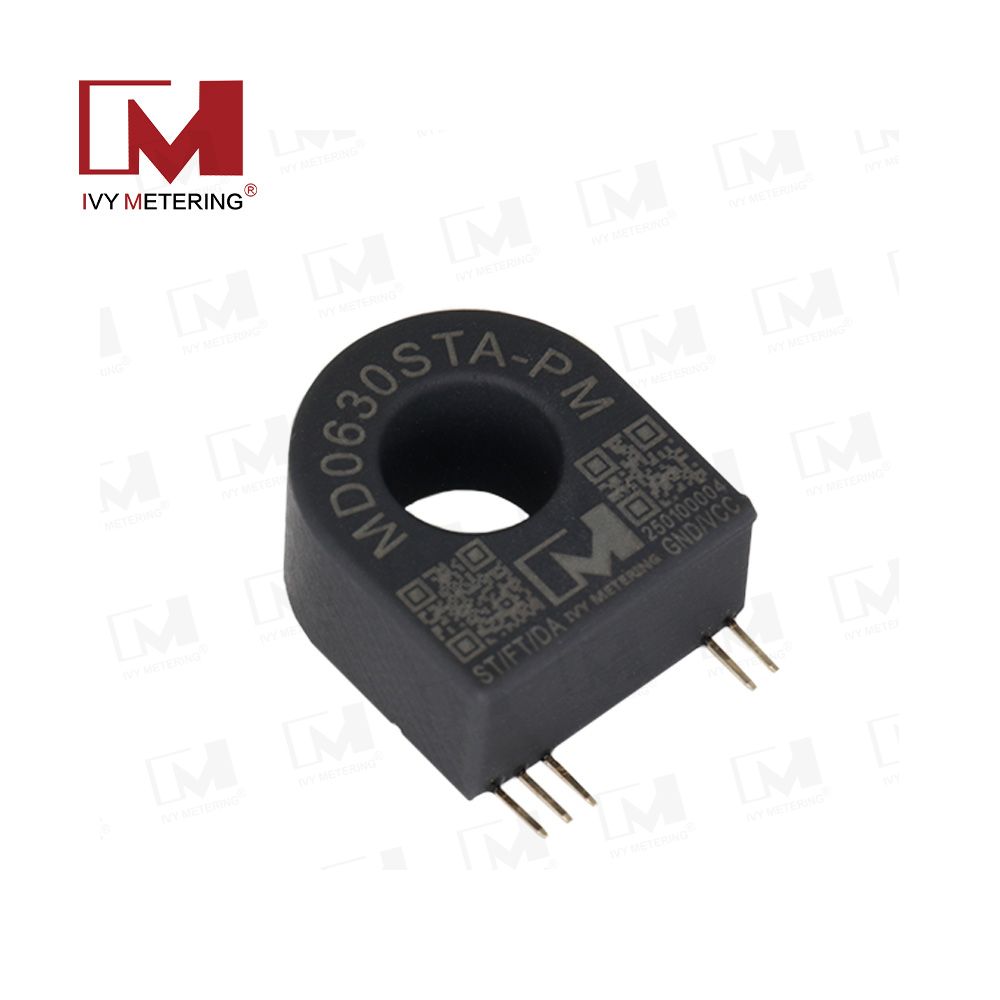

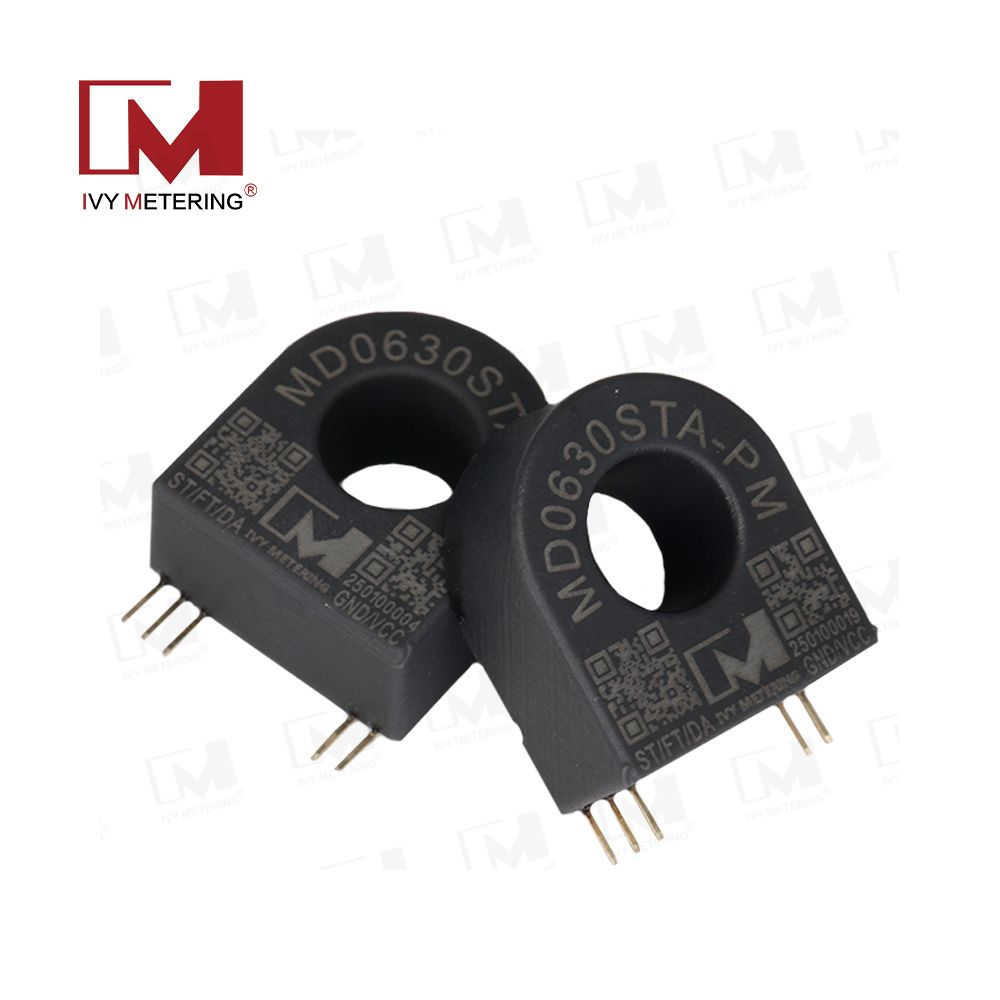

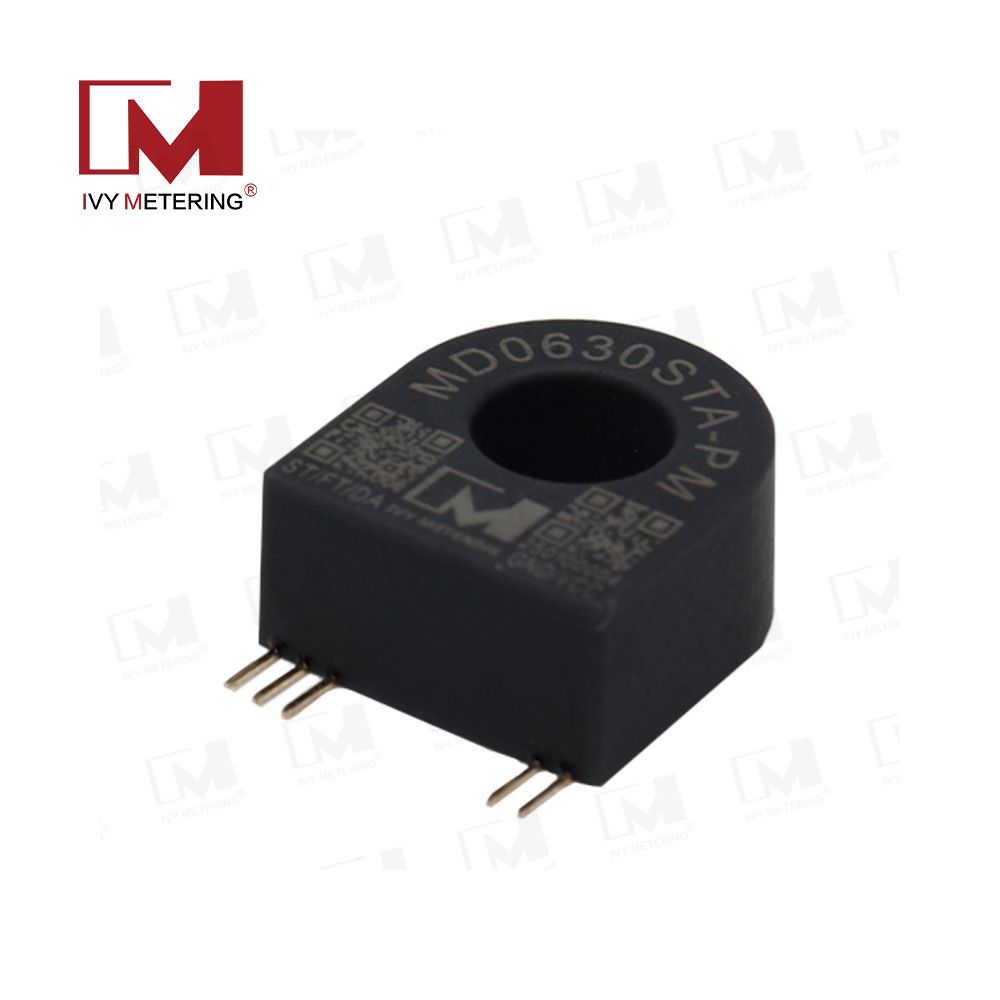

The MD0630STA-PM AC/DC Leakage Current Sensor from IVY METERING is a cutting-edge device built to meet the growing demand for precise leakage detection in modern electrical systems.

Characterized by its high sensitivity, measurement accuracy, small footprint, and integrated design, this sensor delivers dependable performance.

It is capable of detecting DC leakage currents as low as 3mA and AC leakage currents from 15mA, ensuring timely alerts before potentially hazardous situations can occur.

Furthermore, the sensor is equipped with a self-test function, allowing users to easily verify its operational status.

Housed in a flame-retardant plastic casing and designed to operate reliably in temperatures ranging from -25°C to +80°C, the MD0630STA-PM is a critical component for ensuring electrical safety in public and private charging infrastructures, as well as in various industrial and commercial environments.
Product Details
The MD0630STA-PM AC/DC Leakage Current Sensor is a versatile & highly accurate device designed for detecting leakage currents in both AC & DC circuits.

Applications
The MD0630STA-PM is designed for a variety of applications where reliable leakage current detection is essential, including:
EV Charging： Particularly suitable for charging stations for public EVs, motorcycles, & bicycles to ensure electrical safety during the charging process.
Industrial Equipment： Protects industrial machinery and systems from potential damage caused by leakage currents.
Medical Instruments： Ensures the electrical safety of medical devices & instrumentation.
New Energy Systems：Used for monitoring leakage currents in solar installations & other new energy systems.
Smart Cities & IoT： Can be integrated into smart city infrastructure & IoT devices for enhanced electrical safety management.

Installation and Operation
The MD0630STA-PM is designed for simple & convenient installation.

It features clear pin definitions, including VCC, GND, FT (Factory Test), DA (Leakage & Self-test alarm output), & ST (Self-Test Power Input).

The sensor's OpenCollector output allows for flexible integration into various systems & can be adapted based on an external pull-up voltage.

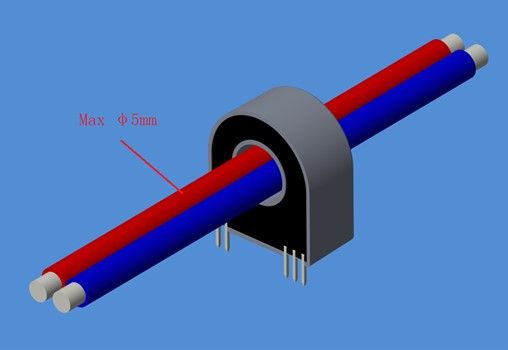

For accurate leakage monitoring, both the live & neutral wires should be passed through the center aperture of the sensor.
