IM601 60A 250VAC 1A PCB Mount Single Coil 12VDC SPST NO Latching Power Relay for Solar Panels

IM601 is a small industrial bistable latching power relay with continuous current up to 60A, and switching 250VAC/6~48VDC. Single and twin coil latching used for solar and energy conservation.This photovoltaic relay is a single pole, normally open solid state relay.These devices have the advantages of electromagnetically and reed relays, high sensitivity, miniaturized con-tactless bounce, long operating life, insensitivity to external magnetic fields, shock and vibration, and the inherent high reliability national technology. They are ideal for switching high current or low level signals without distortion or injecting electrical noise.

Inquire Now

Product Details

Product Features

60A permanent magnet relay Relay Suits for AC Switching in 40A Solar Panel

Meet with IEC62055-31 UC2 Certificate (Especially C3&C5)

Support Customization on Input & Output Terminals

Product Parameters

Basic Data	Dimension（mm）		38×30×16.5
	Weight ( g )		≈33g
	Contact Arrangement		1A/1B
	Contact Material		AgSnO₂
	Ambient Temperature		-40~+70℃
	Ambient Humidity		45%~90%RH
	Vibration		10~55Hz,1.5mm(DA)
Specification Data	Nominal Voltage		6~48VDC
	Power Consumption		Single Coil:1.5W, Dual Coil:3W
	Max. Switching Voltage		250VAC
	Max. Switching Current		60A
	Max. Switching Power		15000 VA
	Contact Resistance		<1.5 mΩ
	Insulation Resistance		1000MΩ（DC 500V）
	Dielectric Creepage		10mm
	Dielectric Strength	Across Open Contact	＞1500VAC 1min
		Coil to Contact	＞4000VAC 1min
	Electrical Life		＞10,000cycles
	Mechanical Life		＞100,000cycles
	Picking-up & Release Time		≦20ms
	Pulse Duration		≧100ms
	Functional Shock Resistance		10G
	Destructive Shock Resistance		100G

Product Dimension

All dimension in mm unless otherwise noted ,For more information, please contact IVY Metering.

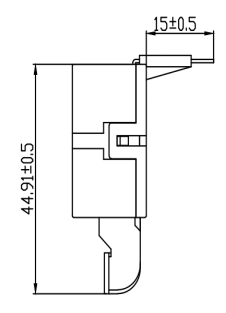

Outline Dimensions(Standard Terminal) (Unit:mm)

Product Application

Modern society is in a period of rapid development, and technology updates are changing with each passing day. Photovoltaic power generation is also widely used everywhere. It is believed that photovoltaic’s will become the mainstream energy in the future. AC switching is the key process in solar system. AC solar relay of 60A 90A will be the best options.
