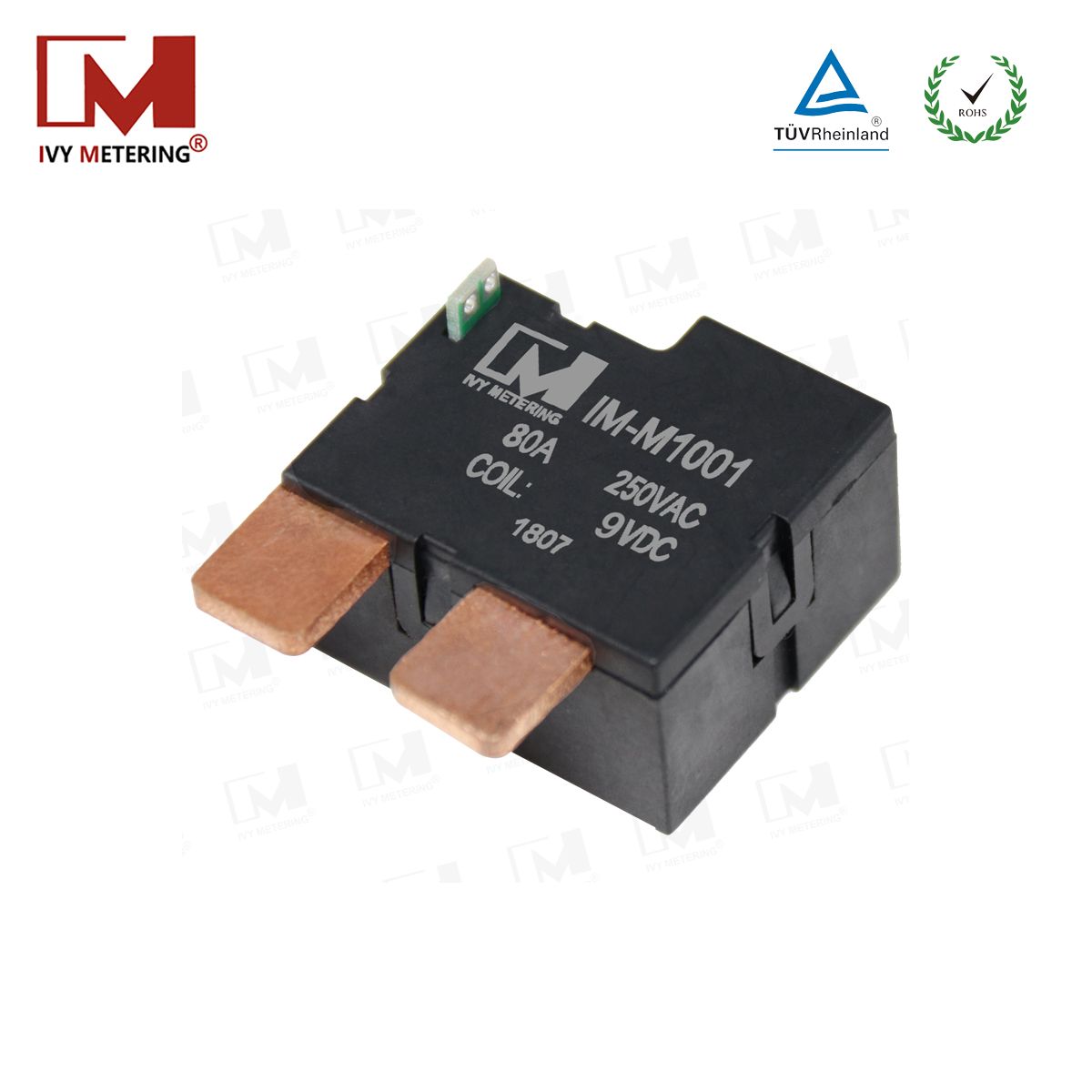

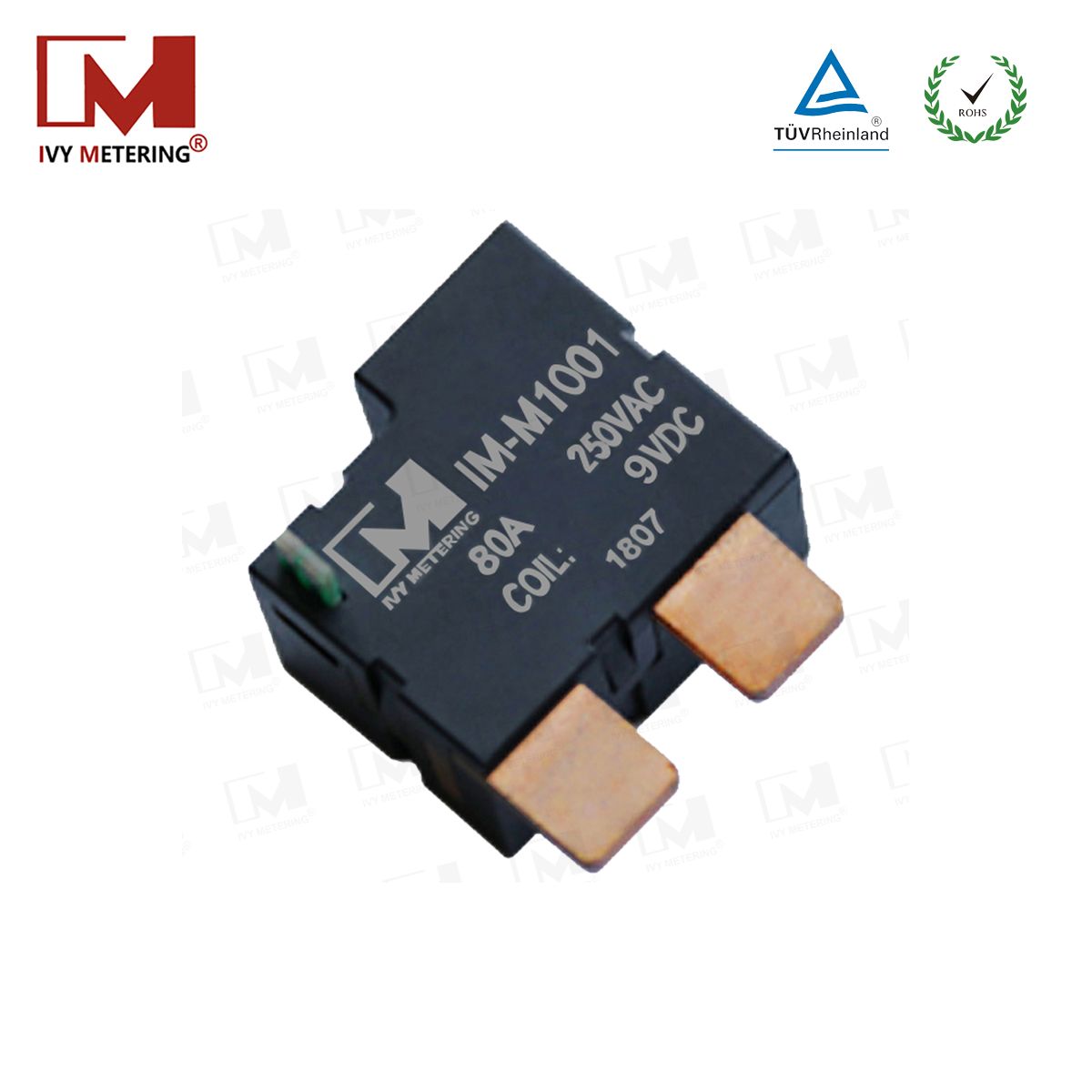

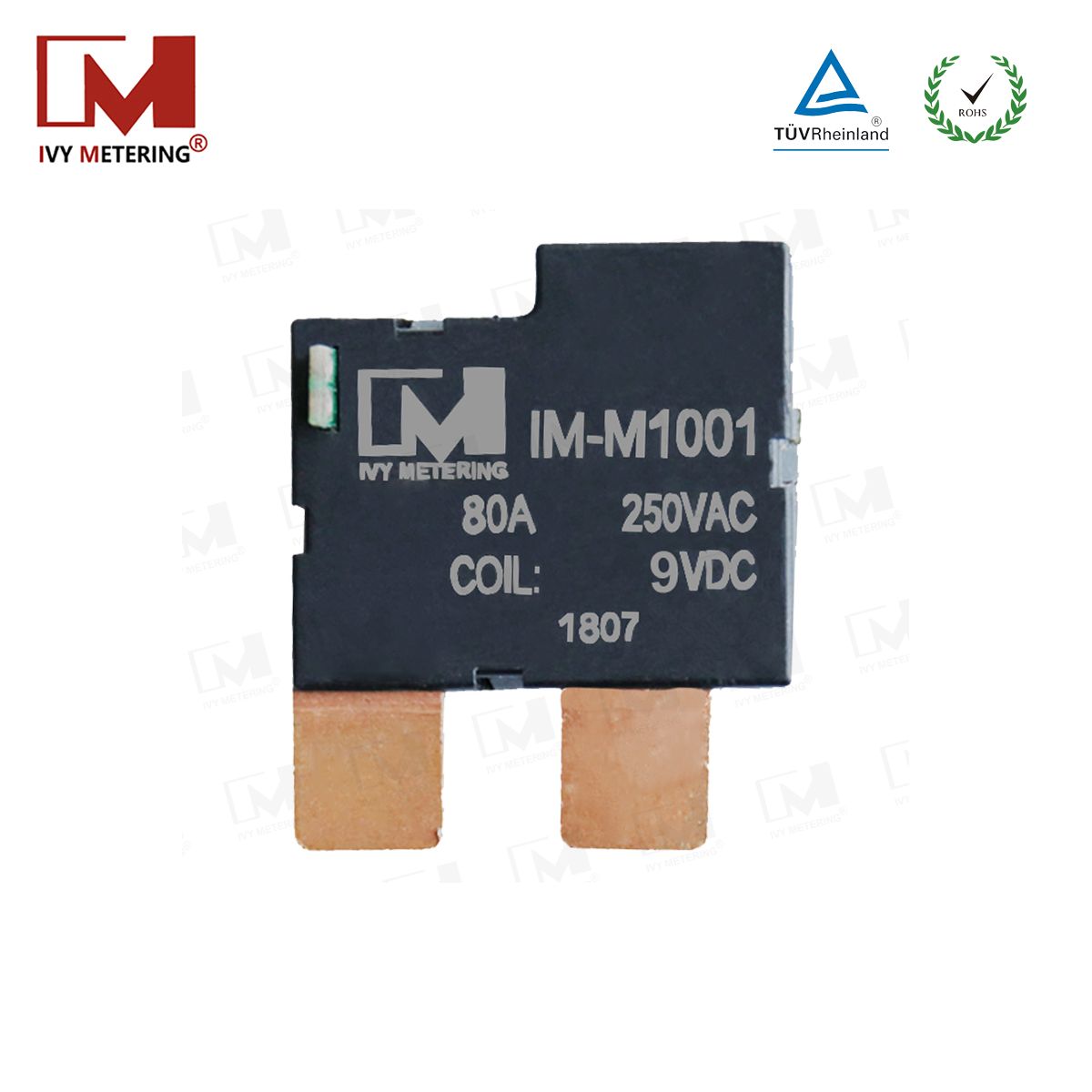

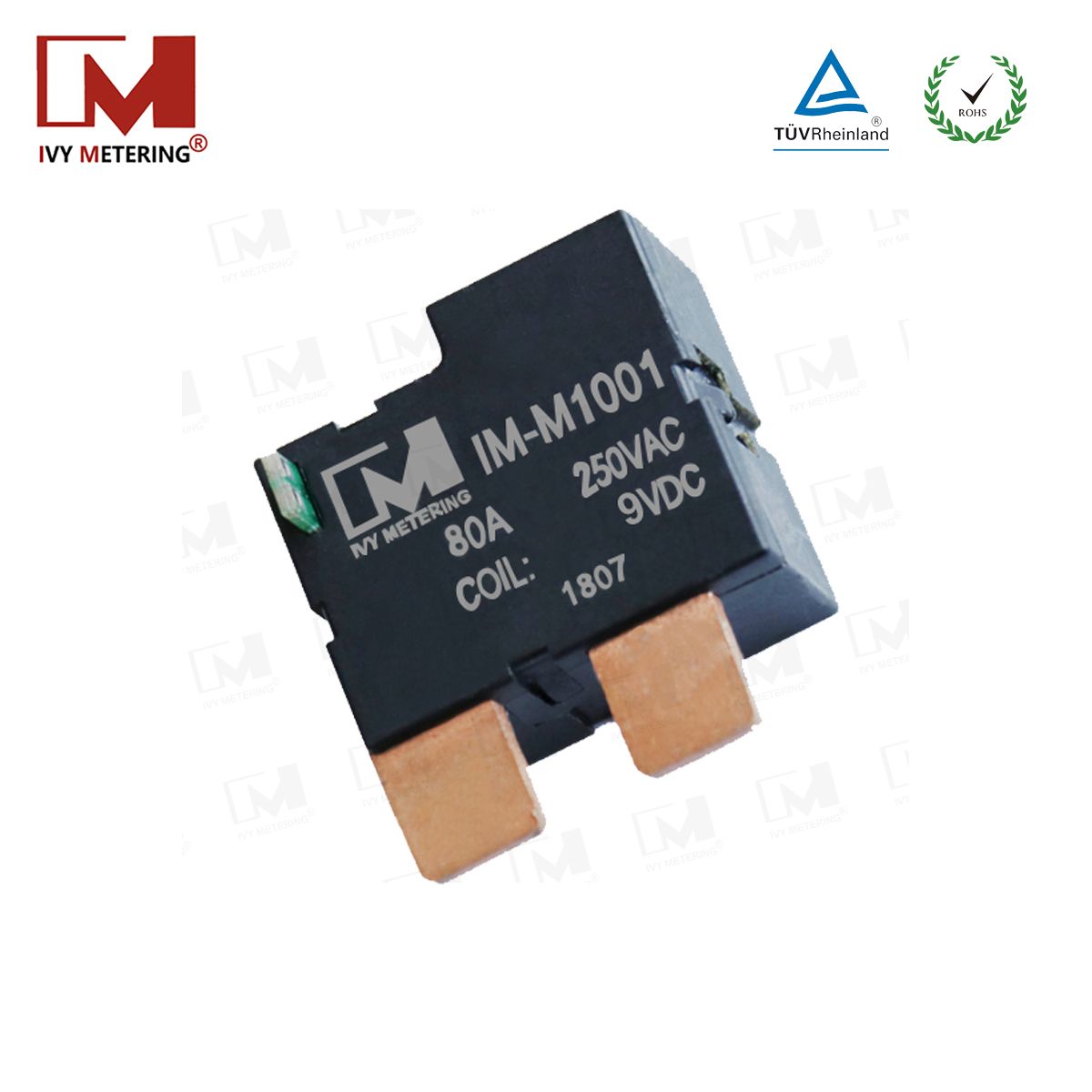

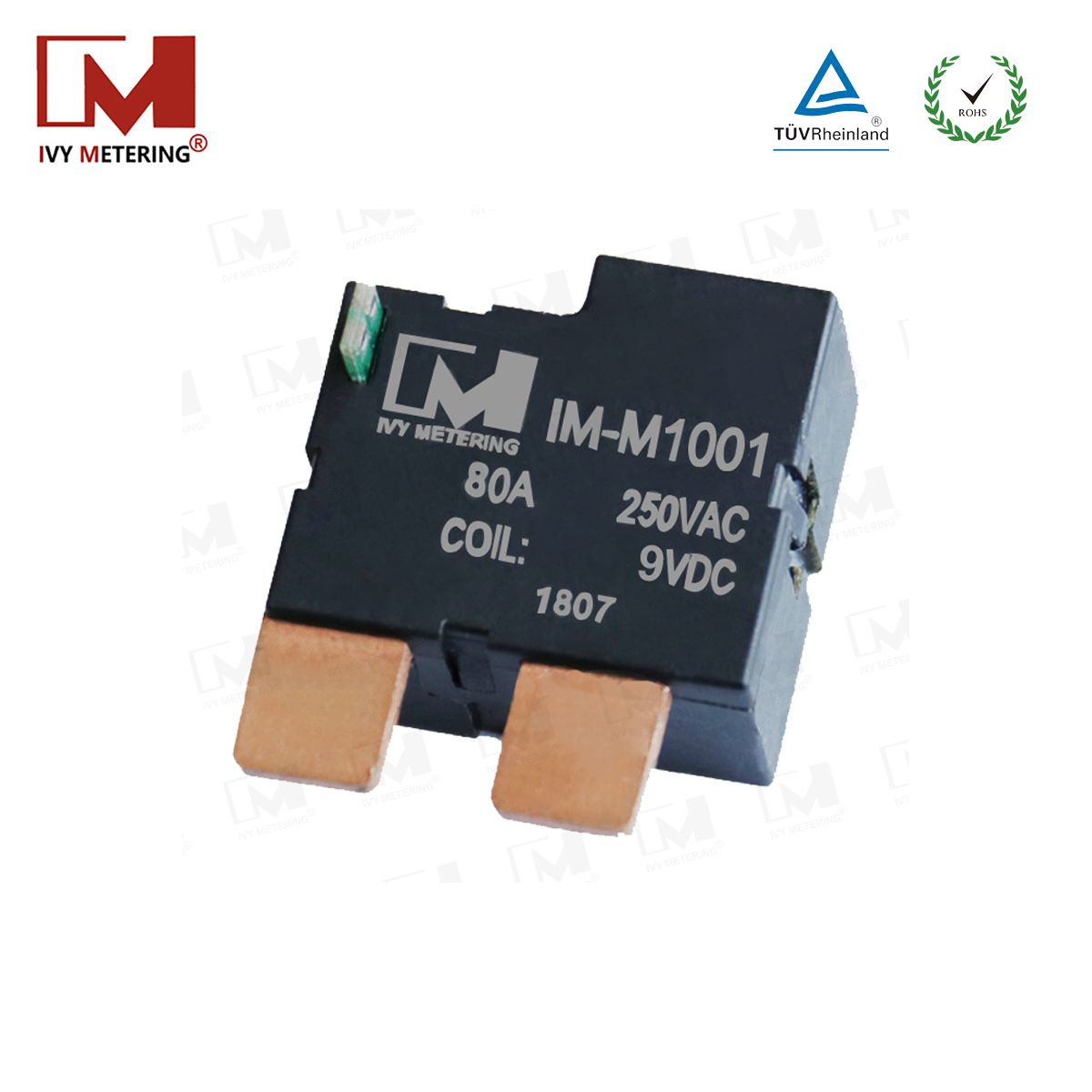

IM-M1001 Anti-magnetic 500mT 80A 250VAC 9VDC Volt Single Pole Miniature Motor Latching Solar Relay
●Contact Form:1A/B
●Max.Switching Current:80A
●Permanent Magnetic Immunity to 500 mT
●Power Consumption:3W(25ms)

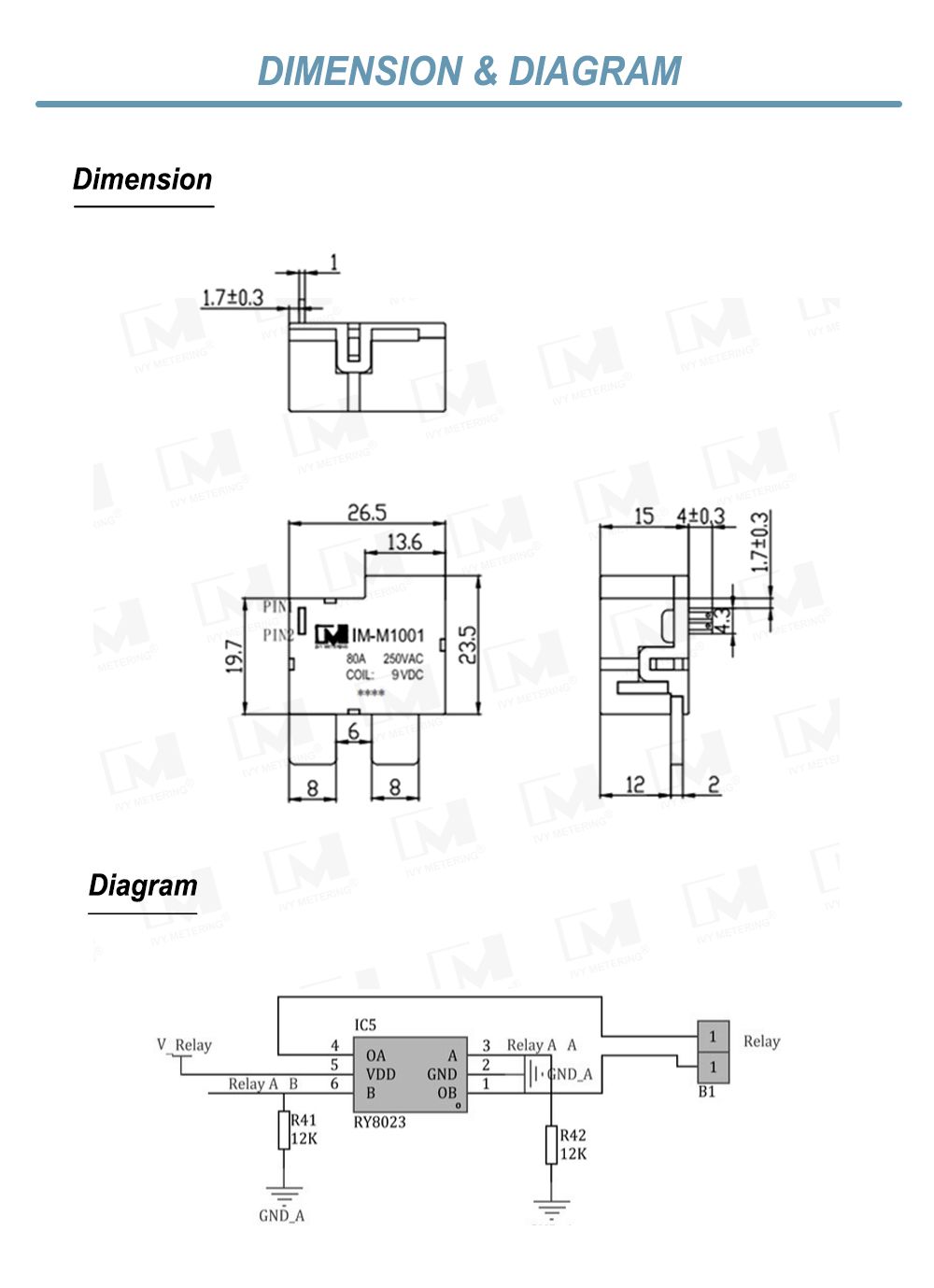

●Compact Design of Dimension: 26.5*23.5*15 mm
●IEC62055-31 UC3 Compliant

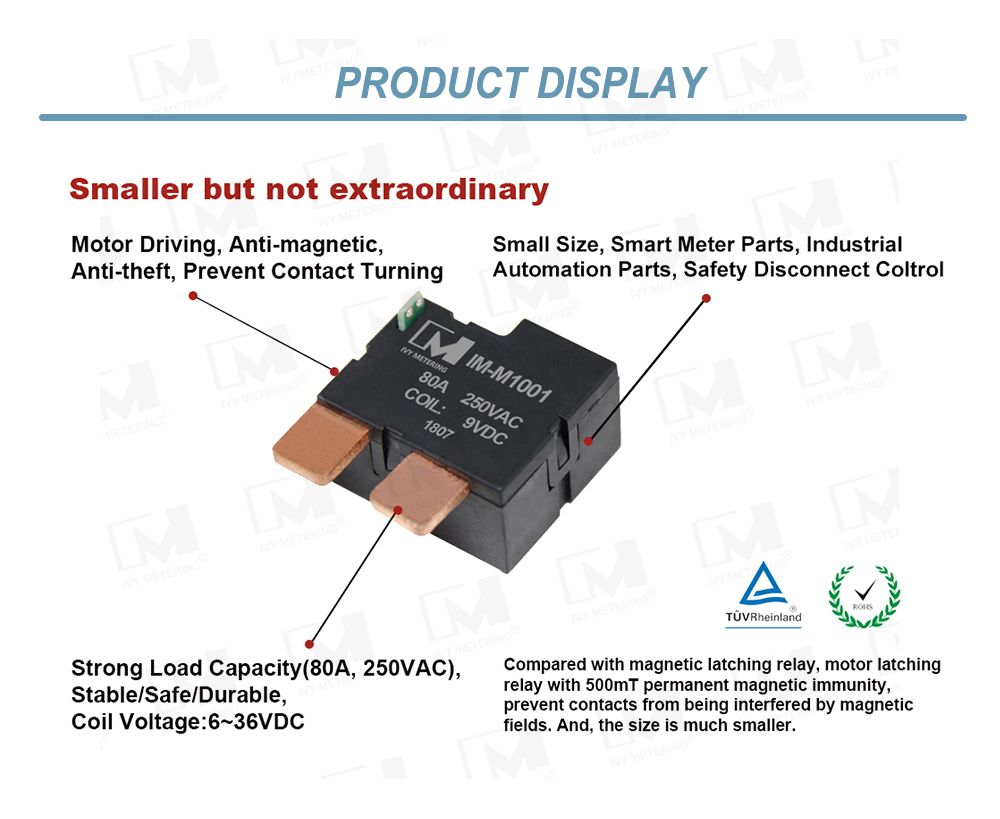

Product Details
80A LATCHING RELAY
●Contact Form:1A/B
●Max.Switching Current:80A
●Permanent Magnetic Immunity to 500mT
●Power Consumption:3W(25ms)
●Compact Design of Dimension: 26.5*23.5*15 mm
●IEC62055-31 UC3 Compliant
