MD0630T41A-2 High Sensitivity 4mA DC 20mA AC Residual Current Detetion RCD Leakage Current Transformer
MD0630T41A-2 is an ac dc leakage current sensor designed to detect even smallest residual currents(4mA DC; 20mA AC), which has the characteristics of accurate measurement, high sensitivity, digital signal, push-pull output, integrated design, and small size. The current DC current range is 2~15mA, the AC current is 3~100mA, the accuracy is DC±0.2mA, AC±0.3mA, and it is a 3-way output, SIP package. With IR communication, Modbus protocol, in line with IEC62955 standard, with TUV, CE-EMC certification. The leakage sensor can be set separately for AC and DC leakage. An alarm signal is generated when the set current is reached. The leakage sensor has a digital output function and can read the current value of DC and AC.
Product Features
AC-6mA DC-30mA Residual Current Monitor (Settable mA)
Smallest Size with Integrated Design, Cable Installation
Digital Signal. Push-pull Output
IR Communication, Modbus Protocol
TUV-IEC62955-2018, CE-EMC, IS17017, UL2231, IEC62752
Standard: EN 61000-6-3:2007+A1, EN IEC 61000-6-1:2019
Product Parameters
Voltage Input | 12V±20% (Current about 12mA) |
Measurement Current Range | DC current:2~15mA; Max.AC current:3~100mA (Default threshold: DC 6mA, AC 30mA) |
Accuracy | DC±0,2mA,AC±0.3mA@25℃ |
Three-ways output | DC alarm, AC alarm, AC/DC alarm |
Function | Current value readable and settable |
Operation temperature | -25~+80℃ |
Appearance | |
Installation | Cable Installation |

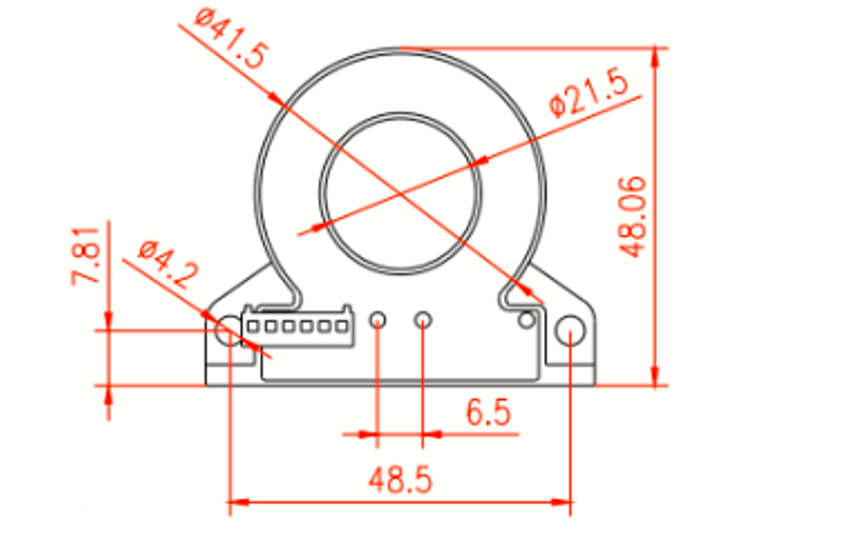

Product Dimension
Product Application
MD0630T41A-2 is an 6mA 4-20mA AC DC integrated current sensor with IR communication and Modbus Protocol. Hence it can meet the needs of both AC ev charging and DC ev charging. With the development of Electric vehicle and EV car charger, the device protection, circuit protection, personal protection are important as well.
As an important current and power monitoring component, the charging pile current sensor plays an important role in monitoring the charging process and ensuring charging safety.
-
