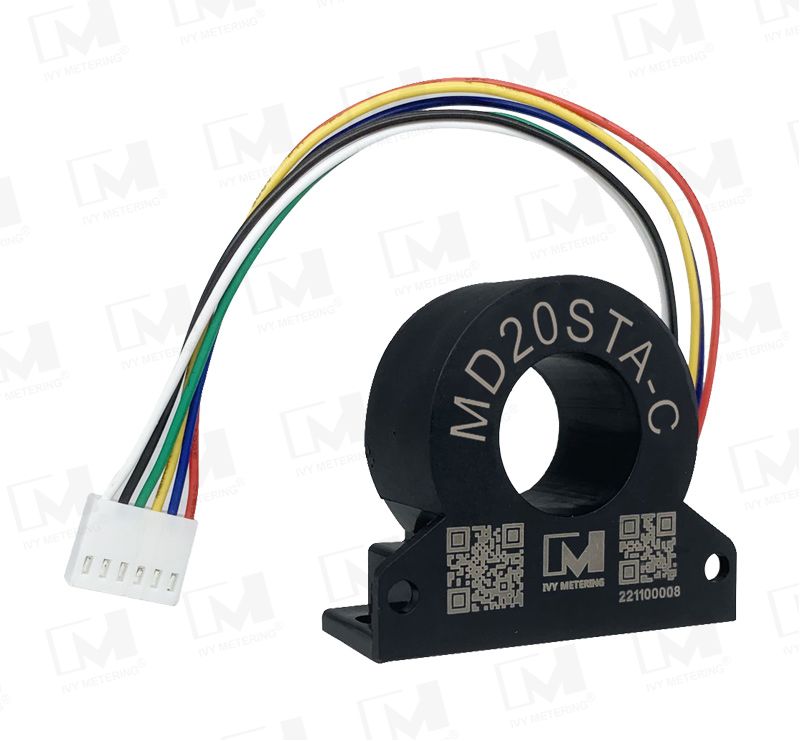

MD20STA-C UL Certification AC 20mA DC 5mA EV Current Sensor CCID20 CCID5 RCD for US Market
In North America, if the electric vehicle is connected to a level 1 or 2 EVSE to charge the battery, the protective measures for ground fault set out in UL2231-1 & -2 must be complied with. GFI circuits are based on differential current sensing. In the EVSE industry they are classified as CCIDs, or charge current interrupting devices. In North America there is a CCID5 and a CCID20. These trigger at 5mA or at 20mA ground fault current, respectively. The 20 mA trip is allowed when an additional ground check circuit has been installed to monitor for ground wire integrity. Note, the US based CCID devices are only required to trigger
on AC current.
Product Introduction
This is an AC/DC leakage sensor that complies with the UL2231-2 standard, and its leakage protection type is CCID20. The AC leakage protection threshold is 15~20mA, and the DC leakage protection threshold is 40×1.414=56.56mA. It also protects against mixed leakage current and high-frequency leakage. When the leakage current in the line reaches the above alarm threshold, it will output a leakage alarm signal (open collector output). In addition, it has a self-test function, which can be used to determine in real time whether the sensor is in a normal working state. So this leakage sensor will be safer and more reliable in the field of leakage protection.
This series of products is mainly used in US standard EV charger, solar panel and other fields. We are committed to providing simple, safe and reliable leakage protection solutions for the safety of electricity use for the majority of users.
Performance Overview
Leakage protection type: CCID20
AC leakage protection threshold: AC 15~20mA (@60Hz)
DC leakage protection threshold: DC 40×1.414mA
Leakage alarm & self-test feedback output mode - collector open circuit output
Working environment temperature: -25℃～+80℃
Small SIP package, cable connection
Plastic shell, flame retardant V0
-
![MD20STA-C UL Certification AC 20mA DC 5mA EV Current Sensor CCID20 CCID5 RCD for US Market]( "MD20STA-C UL Certification AC 20mA DC 5mA EV Current Sensor CCID20 CCID5 RCD for US Market")
MD20STA-C UL Certification AC 20mA DC 5mA EV Current Sensor CCID20 CCID5 RCD for US Market -
![MD0630STA-C Low-cost RCM Sensor EV Charger RCD Protection with 6mA DC 30mA AC Leakage Detection]( "MD0630STA-C Low-cost RCM Sensor EV Charger RCD Protection with 6mA DC 30mA AC Leakage Detection")
MD0630STA-C Low-cost RCM Sensor EV Charger RCD Protection with 6mA DC 30mA AC Leakage Detection -

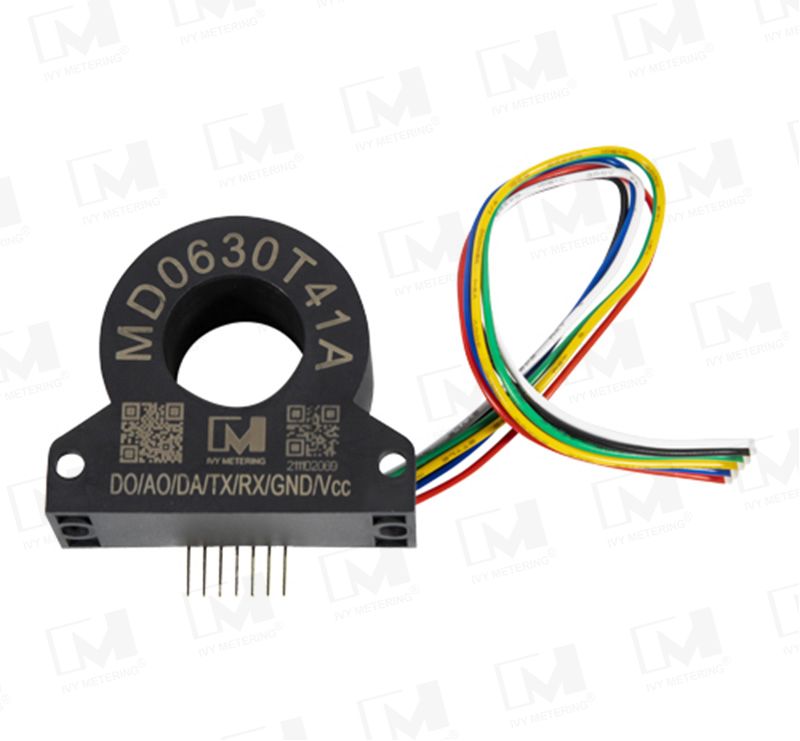

![MD0630T41A EV Charger Residual Current Monitor DC 6mA AC 30mA RCD Type B Leakage Detection Current Sensor]( "MD0630T41A EV Charger Residual Current Monitor DC 6mA AC 30mA RCD Type B Leakage Detection Current Sensor")
