MD0630STA-C Low-cost RCM Sensor EV Charger RCD Protection with 6mA DC 30mA AC Leakage Detection
Any electrical leak can be dangerous for your staff and production site. By using IVY Residual Current Monitor (RCM) you can protect both staff and equipment. IVY developed a range of highly flexible Residual Current Monitor of Type AC/A/B/B+ for measuring DC and AC residual currents up to 100kHz, with digital signal output.
The MD0630STA-C is a residual current sensor with a highly integrated modular design. It combines Type A RCD functionality with 6mA DC leakage detection. It was specifically developed for charging pile leakage detection and complies with IEC 62955.
Product Description
Its main function is to quickly respond when the charging pile detects residual current during operation. This effectively prevents potential safety hazards caused by leakage, including but not limited to fire or electric shock accidents. It ensures the safety and stability of the entire charging process and is widely used in charging piles that meet mode 2/3/4 charging.
In addition to the use of charging piles. Also suitable for medical instruments, solar inverters, UPS, DC panel, heat pumps, smart home, industrial machines, and power distribution unit etc. There is a DC component leakage scenario. Provide more reliable protection. Protecting personal and electrical equipment safety.
Product Advantages
DC 2~15mA/AC 3~100mA mA Level detection
DC 3~6mA/AC 15~30mA Alarm (Needn’t Set)
Dual Protection: Integrates Type A RCD functionality with 6mA DC leakage detection in a single unit.
IEC 62955 Compliance: Meets the requirements of IEC 62955, the international standard for RCMU in EV charging stations.
Enhanced DC Protection: Detects DC leakage currents as low as 6mA, crucial for modern EV charging safety.
Connection Types: Suitable for both three-phase and single-phase connections.
Self-Monitoring: Continuous self-test functionality ensures reliable operation.
Comply with EU standard and USA standard EV charging
Compact Design: Engineered to be compact for easy integration into EV charging stations.

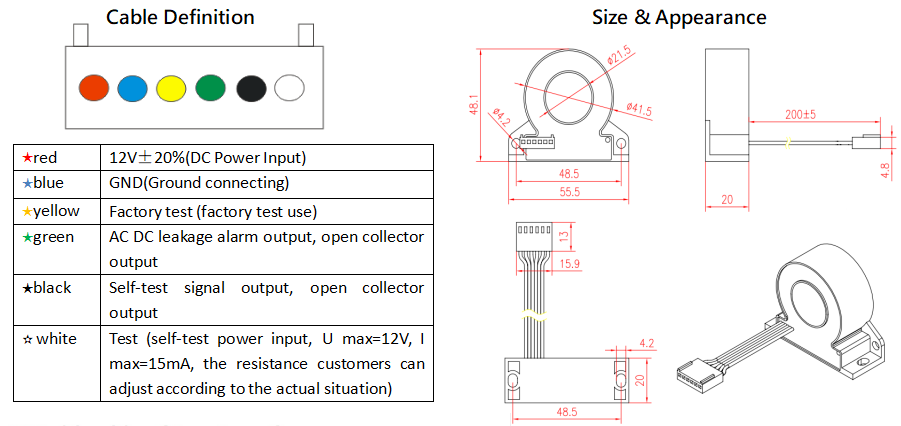

Product Dimension
Product Applications
1.Being able to detect smooth DC residual currents which can occur in EV charger stations and photovoltaic systems, IVY RCD guarantees the safety of the people and of the installation
2.can guarantee dependable protection for field technicians and installed machinery by detecting high frequency residual current and protecting against smooth DC residual currents in the event of a fault.
3.can prevent damage to installed equipment and avoid operational impacts in situations where service interruption and out of order can cause discomfort.
4.In installation where we cannot necessarily withstand any sort of interruption, IVY RCD can minimize outages, equipment damage, failures and interruption of any critical operation
-
