Product Introduction

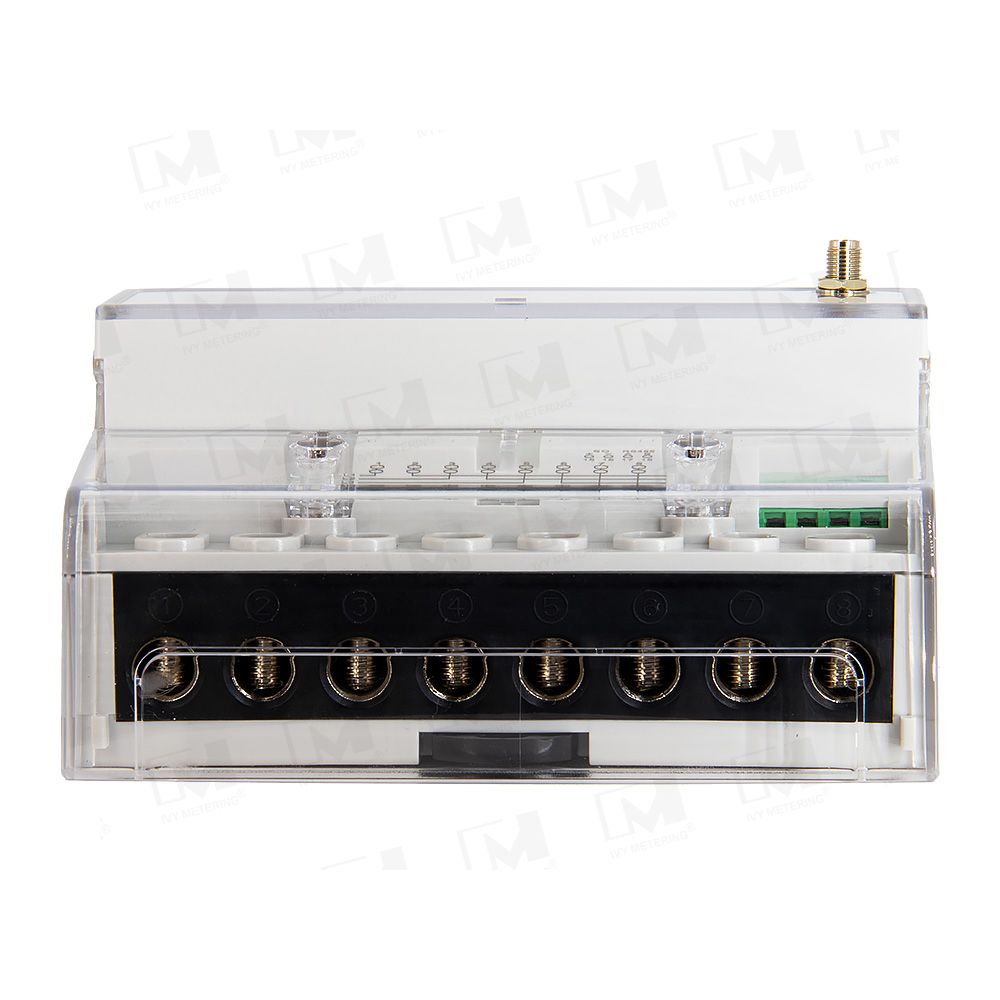

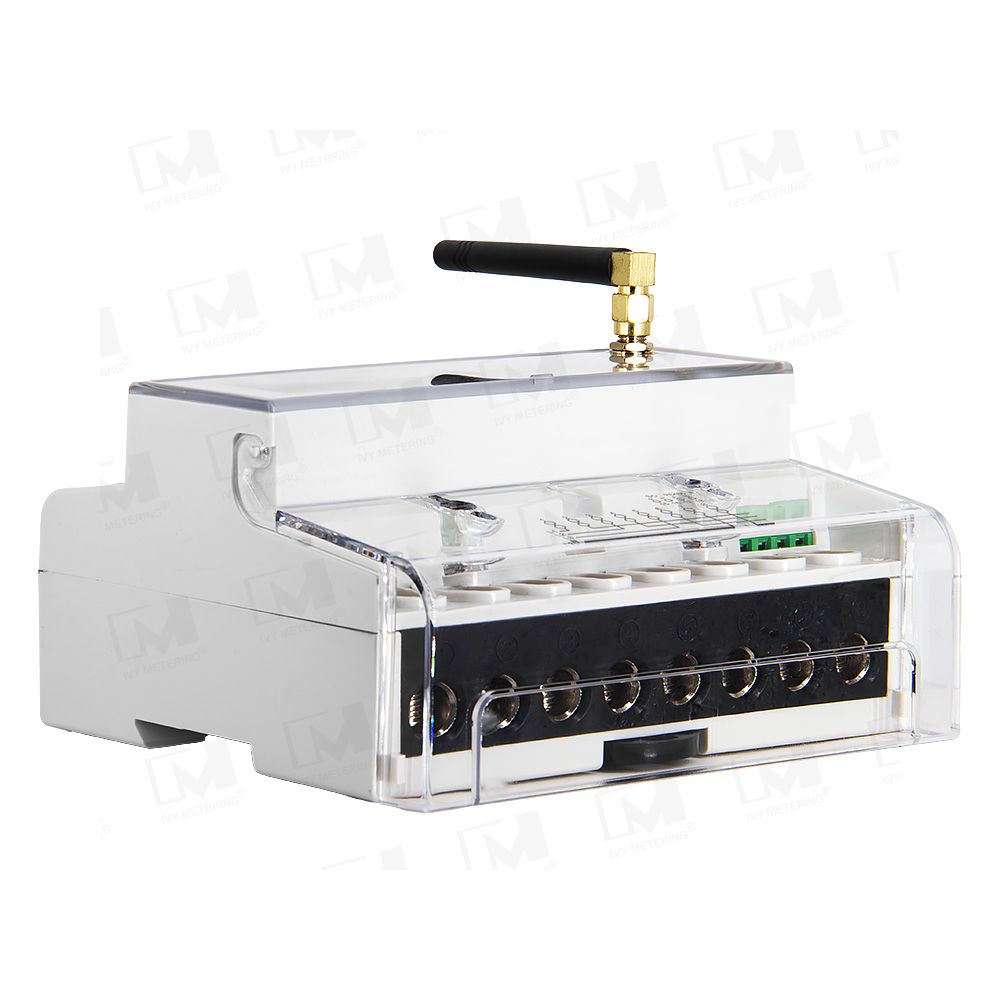

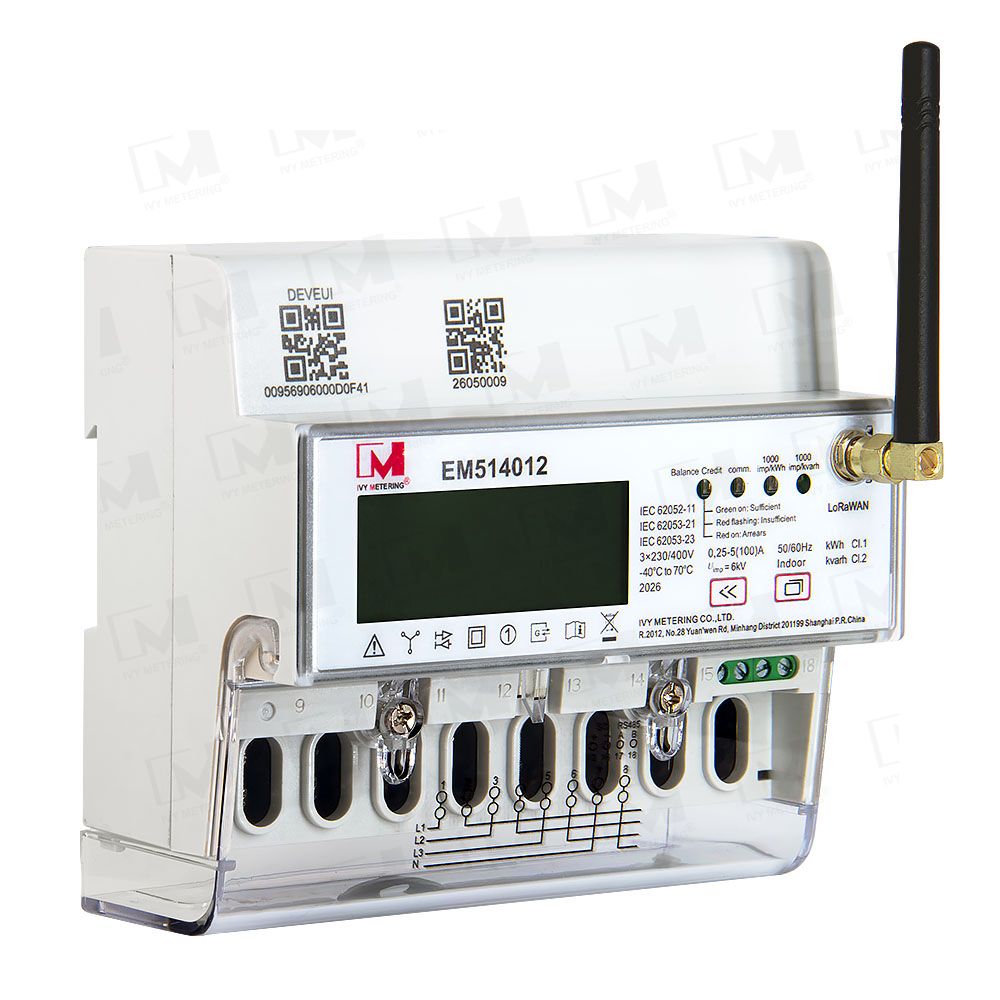

EM514012 LoRaWAN Smart Energy Meter

The EM514012 is a multifunctional three-phase four-wire DIN rail smart energy meter featuring LoRaWAN remote communication and integrated latching relay control.

It enables utilities, energy service providers, facility managers, and system integrators to remotely monitor electricity consumption, perform remote disconnect/reconnect operations, implement prepaid billing systems, and optimize energy management through real-time data collection.

Supporting both LoRaWAN and RS485 Modbus communication, the meter seamlessly integrates into AMI, smart grid, industrial automation, and building energy management systems.

Product Details

Intelligent Remote Meter Reading

Using LoRaWAN wireless communication, the meter enables long-range, low-power remote data transmission without complex wiring infrastructure.

Benefits

• Real-time energy monitoring

• Automatic data reporting

• Reduced manual meter reading costs

• Suitable for large-scale deployments

• Supports IoT smart metering platforms

Built-in Remote Disconnect Relay

An integrated latching relay allows authorized operators to remotely disconnect or reconnect electrical loads.

Applications

• Tenant management

• Utility prepaid services

• Load control systems

• Energy-saving programs

• Remote maintenance

Flexible Prepaid and Postpaid Billing

The meter supports multiple billing methods to meet various market requirements.

Supported Modes

• Postpaid metering

• Energy prepaid mode

• Monetary prepaid mode

• Emergency credit support

• Low balance alarm

Advanced Multi-Tariff Management

Designed for modern energy pricing models.

Features

• 4 tariff rates

• 8 time periods

• Weekend tariff settings

• Holiday tariff settings

• Flexible electricity pricing

Comprehensive Electrical Measurement

Monitor key electrical parameters in real time.

Measured Parameters

• Active Energy (kWh)

• Reactive Energy (kvarh)

• Voltage

• Current

• Active Power

• Reactive Power

• Apparent Power

• Frequency

• Power Factor

• Demand

Intelligent Protection Functions

Built-in protection features improve operational safety.

Alarm Functions

• Overcurrent alarm

• Overvoltage alarm

• Frequency deviation alarm

• Low credit warning

• Low energy warning

• Cover tamper detection

• Event logging

Protection Functions

• Automatic overload trip

• Configurable recovery time

• Relay auto-reconnection

• Remote event reporting

Communication Interfaces

LoRaWAN

• EU863-870 MHz

• Long-range wireless communication

• Remote monitoring and control

RS485

• Modbus RTU Protocol

• Up to 115200 bps

• Local configuration

• Firmware upgrade support

Technical Specifications

Application Areas

Smart Buildings

Monitor tenant electricity usage and enable remote energy management.

Commercial Facilities

Reduce operating costs through intelligent power monitoring and tariff optimization.

Industrial Plants

Track energy consumption and manage electrical loads remotely.

Utility Smart Metering

Support AMI infrastructure and large-scale remote meter reading projects.

Renewable Energy Systems

Integrate with solar, battery storage, and microgrid monitoring systems.
