Home / Products / PVolution / Solar Bi-direcitonal Meters

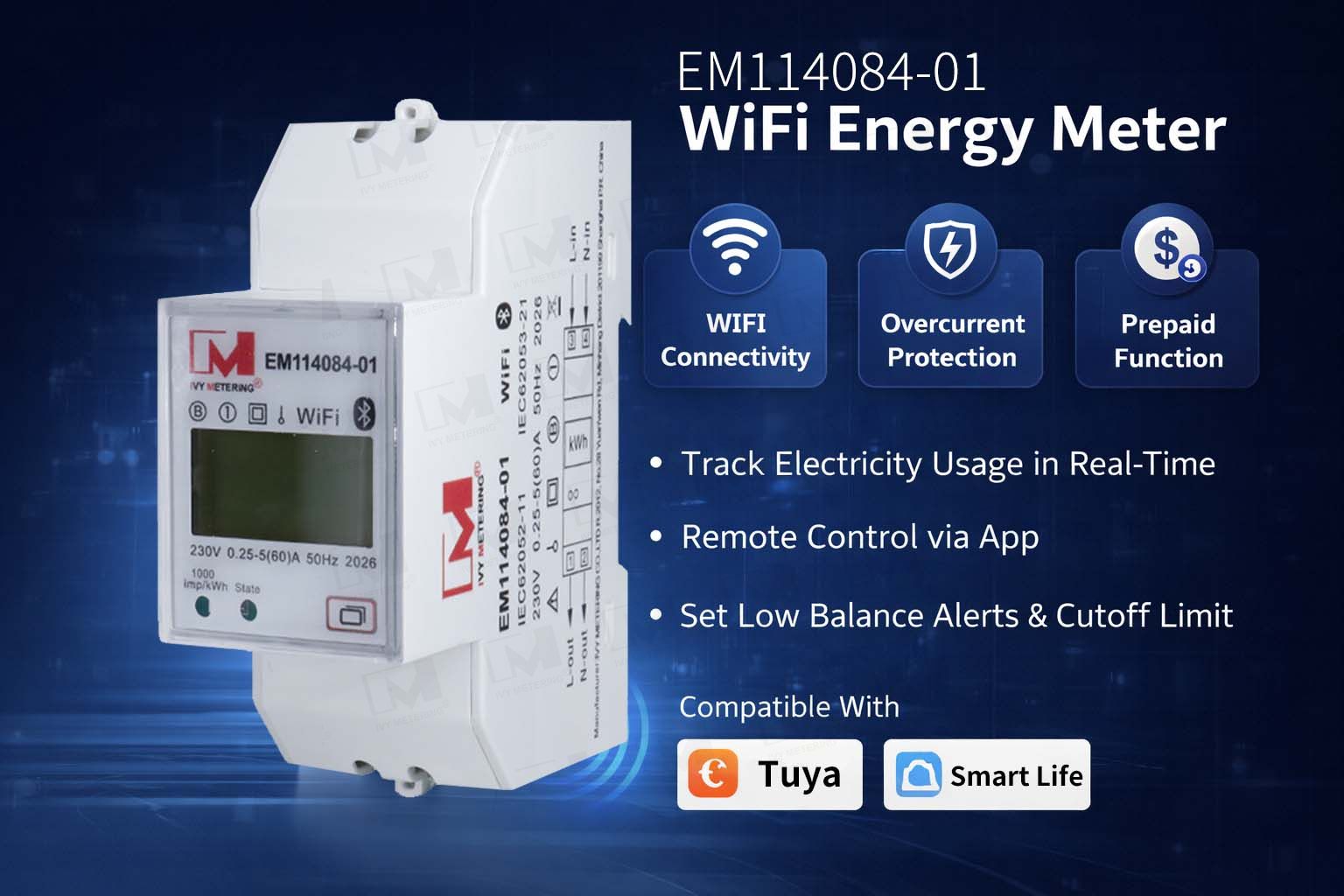

EM114084-01 Single Phase DIN Rail WiFi Smart Energy Meter with Prepaid & Remote Control

Real-time monitoring of voltage, current, power, frequency, and energy consumption
Supports prepaid billing with configurable electricity pricing
Remote control ON/OFF via built-in latching relay
Overcurrent protection with automatic reconnection
Low balance and low energy alarm settings
LCD with multi-page data view
Supports Modbus TCP and WiFi communication (2.4GHz)
DIN rail installation (standard 35mm)

Product Details

EM114084-01 Single Phase DIN Rail WiFi Smart Energy Meter with Prepaid

Product Introduction

The EM114084-01 is a single-phase two-wire WiFi smart energy meter with built-in relay and IoT communication capabilities.

It enables real-time energy monitoring, prepaid billing management, and remote control through wireless connectivity.

After simple Bluetooth configuration, the device connects to WiFi automatically, allowing users to perform remote meter reading, recharge, balance clearing, and power control.

It is ideal for smart grid systems, rental properties, and energy management solutions.

Smart Functions

Remote meter reading
Remote recharge and balance reset
Automatic disconnection when the balance is exhausted
Overcurrent trip with recovery cycle
Real-time data access via IoT platform

Applications

Smart energy management systems
Rental housing / prepaid electricity systems
Industrial IoT monitoring
Commercial energy billing
Smart buildings

EM114084-01 Single Phase DIN Rail WiFi Smart Energy Meter with Prepaid
