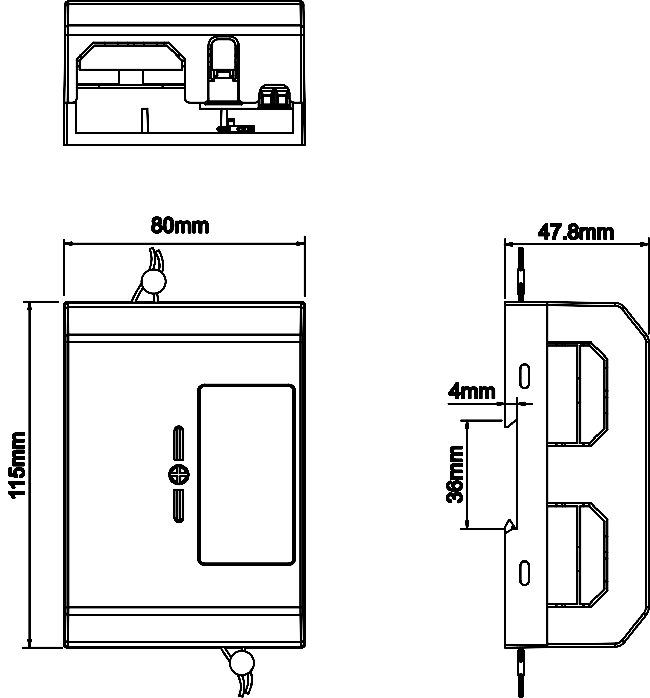

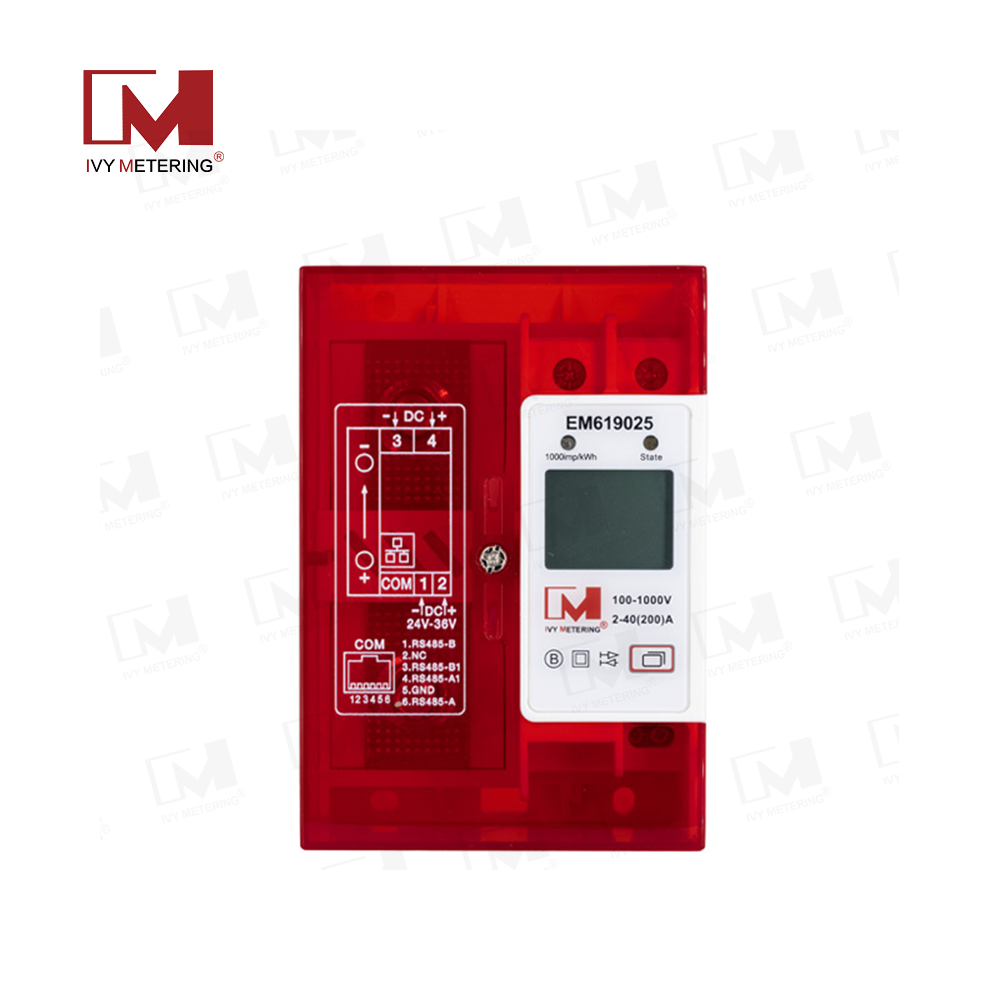

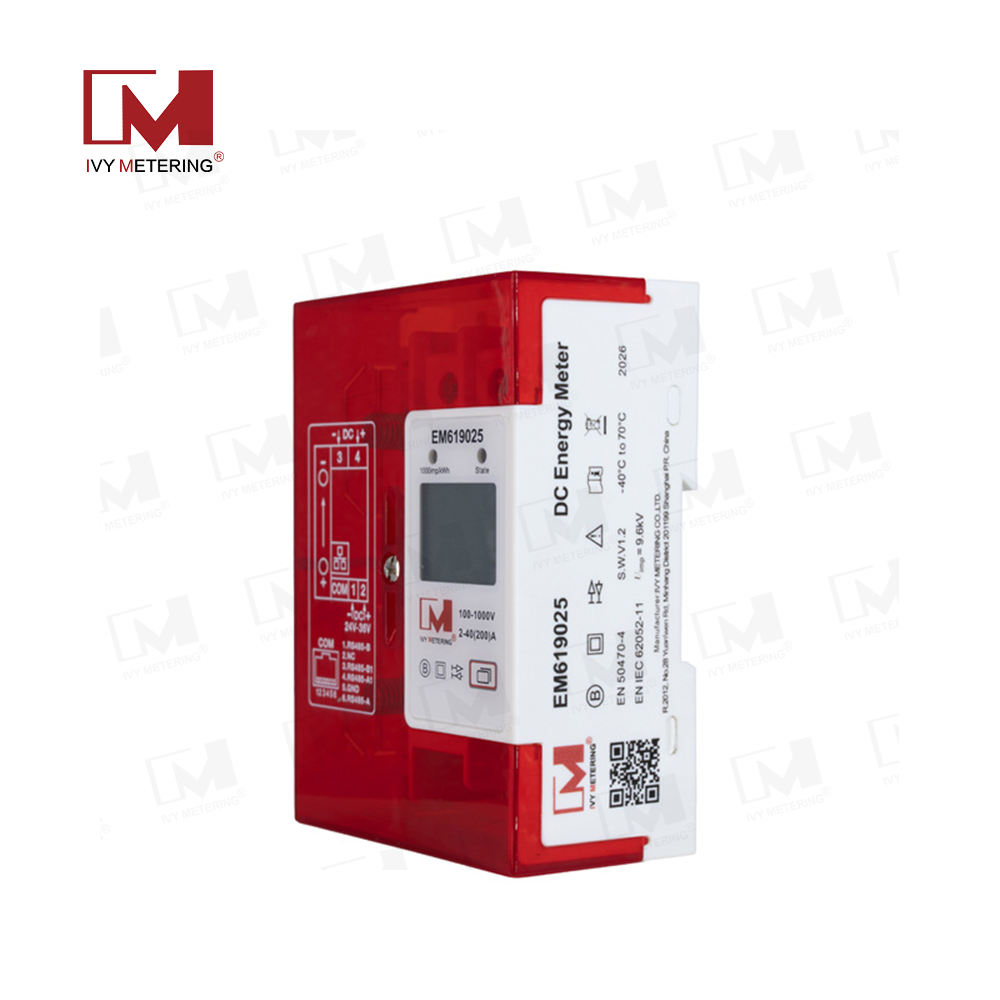

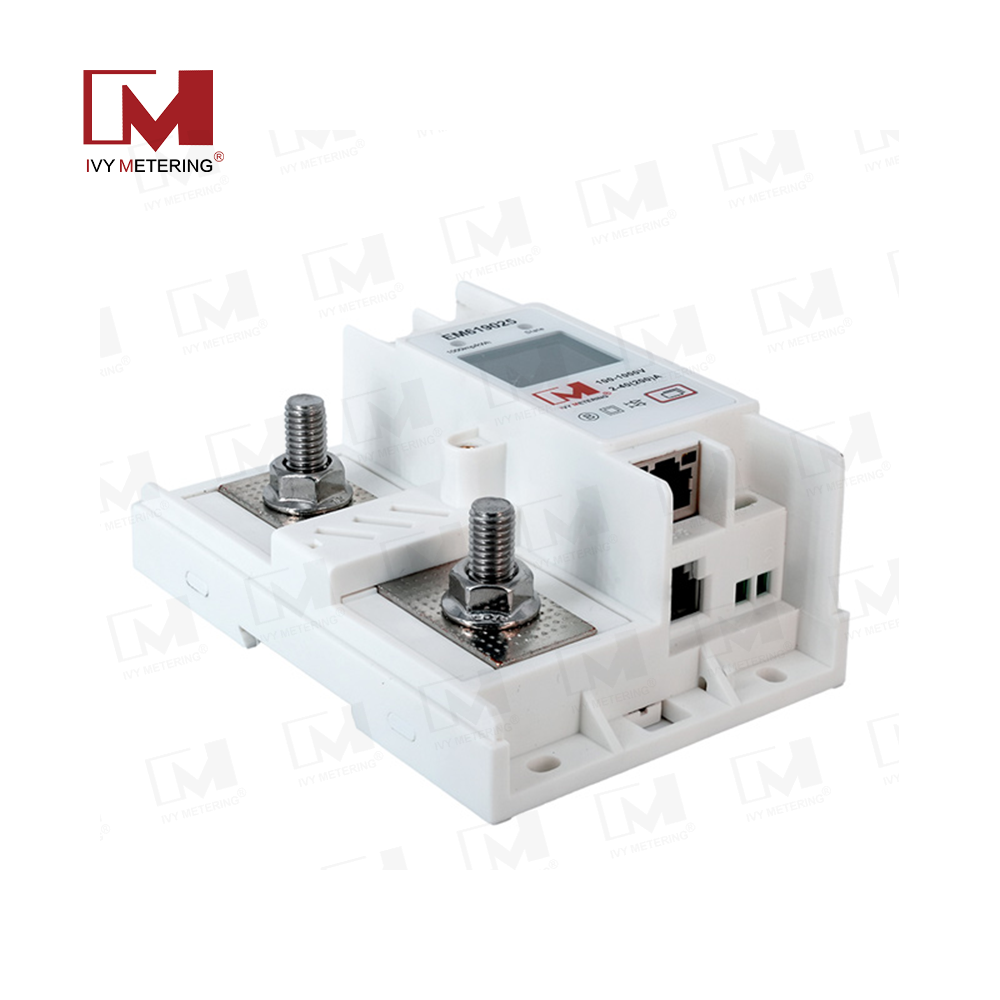

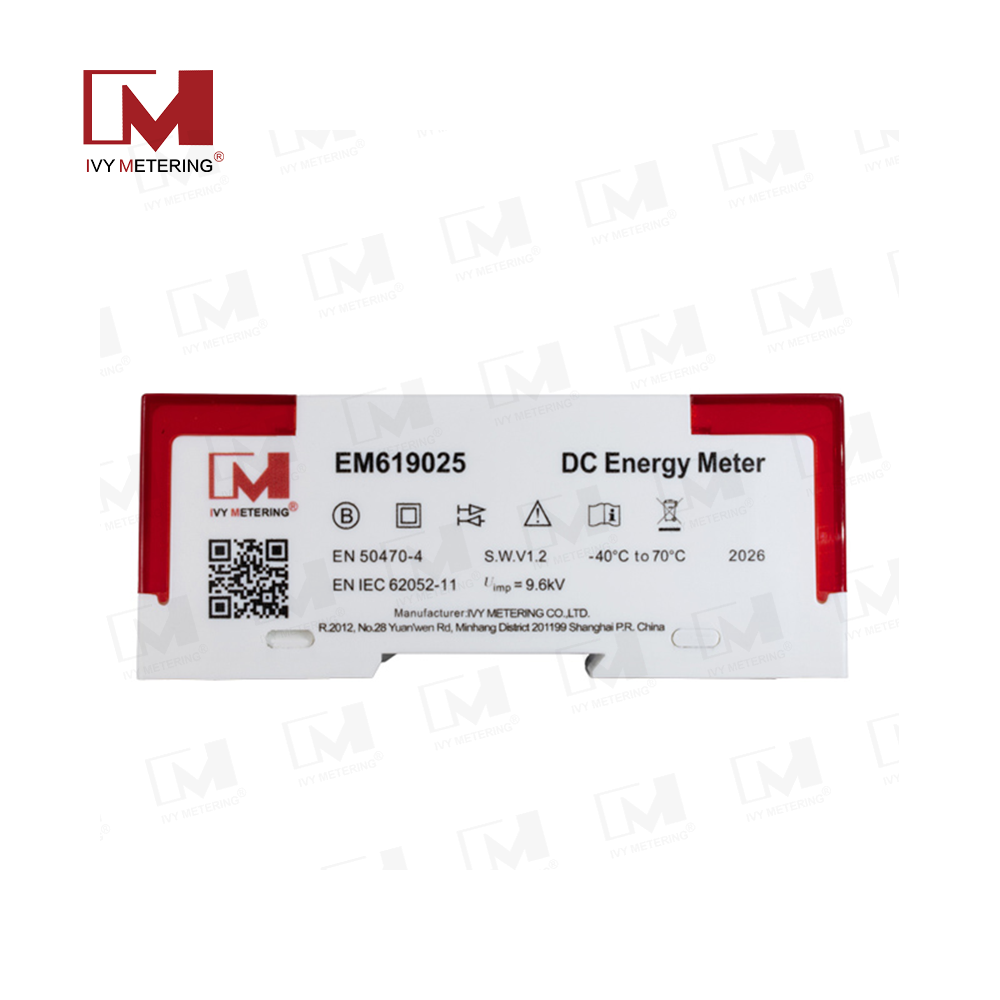

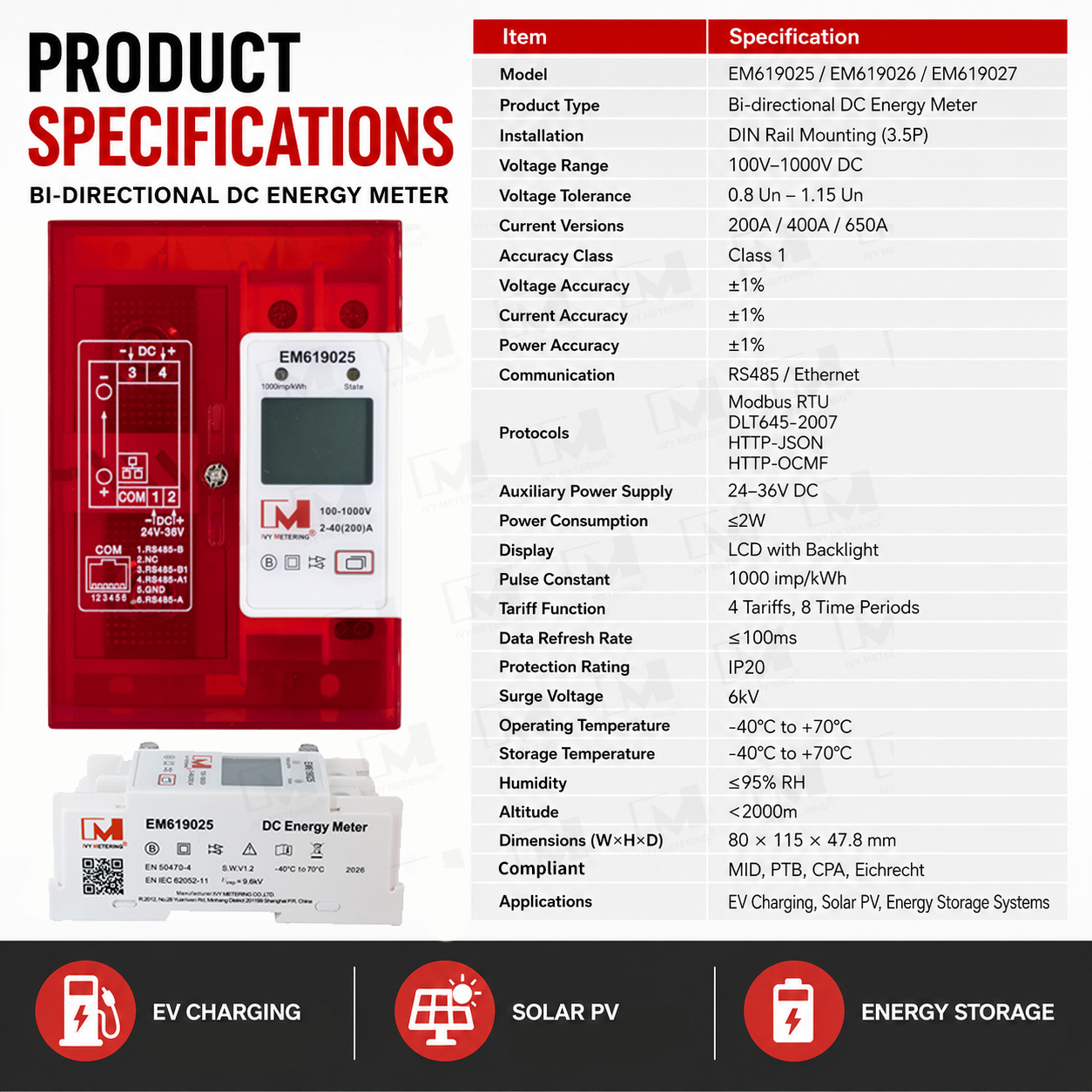

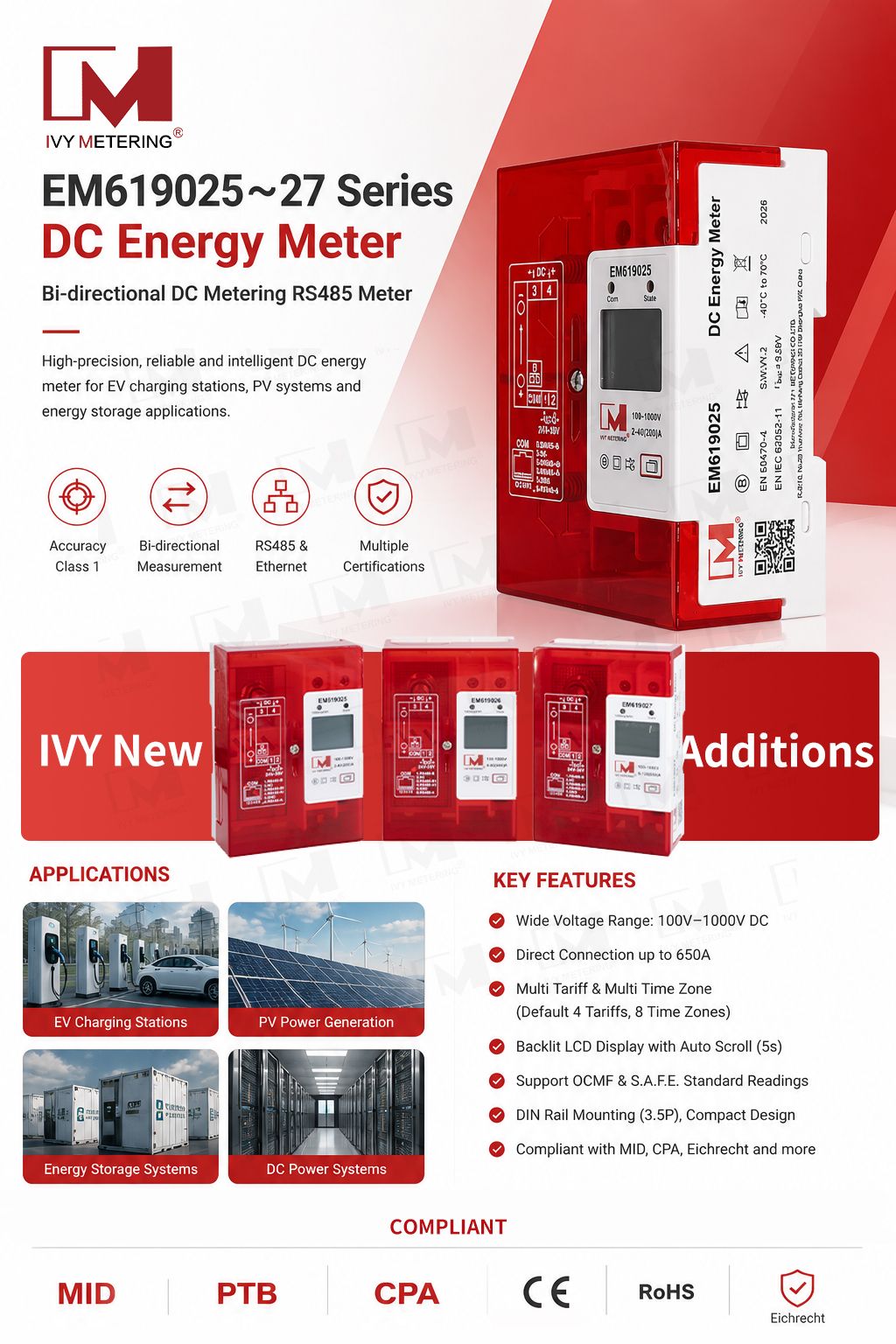

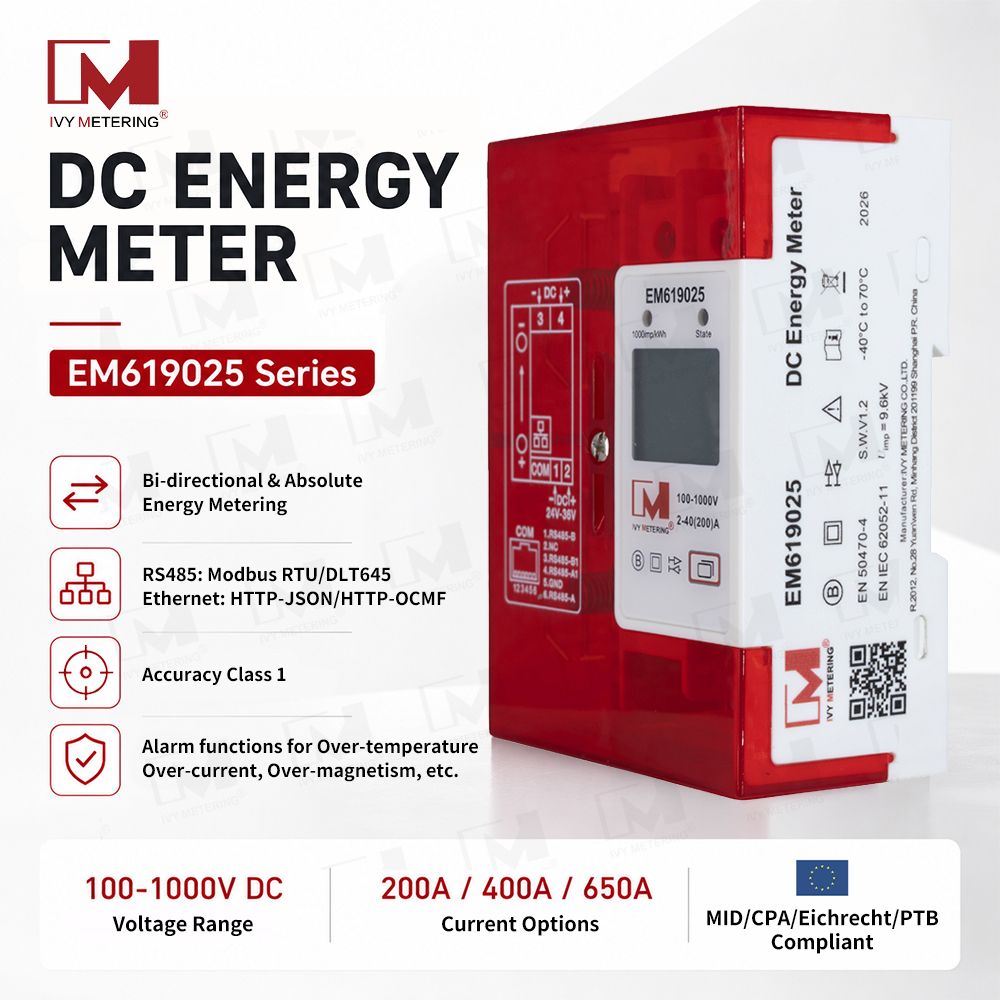

EM619025~27 Series Bi-directional DC Energy Meter with RS485 & Ethernet Communication

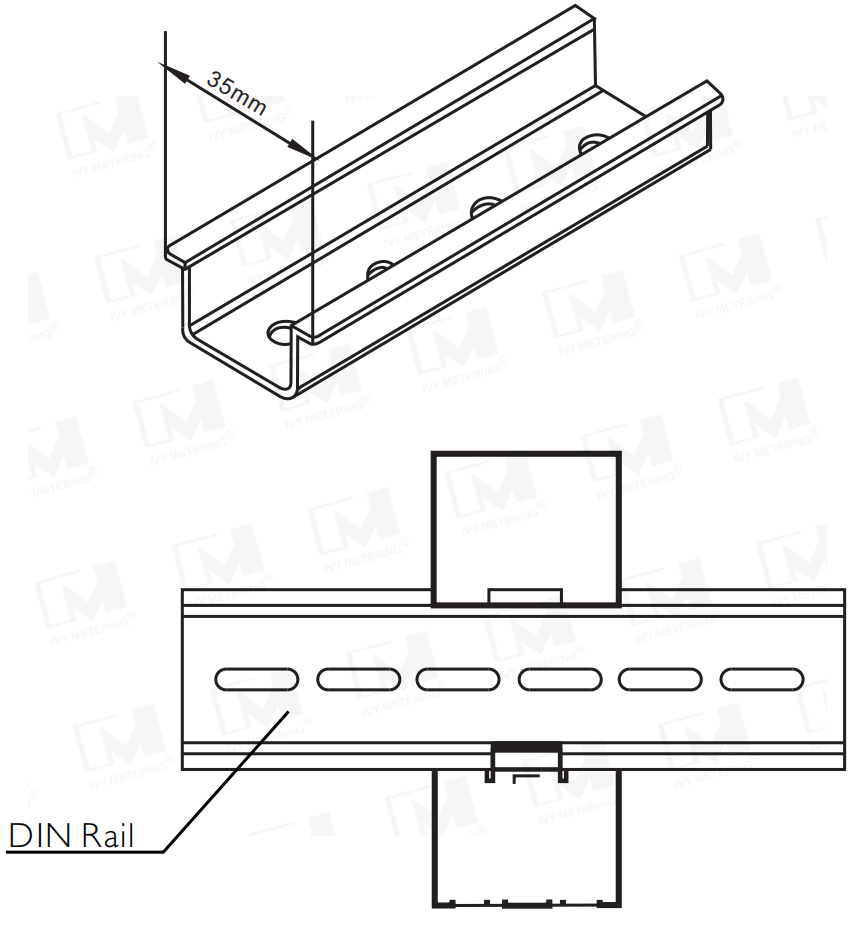

(1)Select 35mm standard din rails (customizable length) and fix them to the location where the meter is to be installed.

(2)Place the meter into the rail bar and press the clips to the bottom of the meter

(3)The meter should be installed in a ventilated and dry place to ensure the safety and reliability of the meter. In dirty or dangerous place, the meter should be installed in a protective box.

(4)The energy meter or energy meter box should be fixed on a solid, fire-resistant and stable bracket.

(5)There should be protective device at the front end of the meter to ensure that the maximum current of supply side not more than meter's maximum current, if the direct connected meter with SGS also not more than contactor’s maximum current according to UC category.

(6)Before installation, please check whether the meter has been damaged during transportation (damage to meter cover, hook, seal, LCD display, etc.)

(7)Since the interior of the energy meter is composed of sophisticated electronic components, it should be carefully protected during installation to avoid damage to the energy meter.

(8)The meter is intended to be installed in a Mechanical Environment"M1", with Shock and Vibrations of low significance, as per 2014/32/EU Directive.

(9)The meter is intended to be installed in Electromagnetic Environment"E2", as per 2014/32/EU Directive.
