100A Wireless CT Split Core Current Monitor Sensor for EV Charger
·Dual-Mode Wireless: WiFi & Bluetooth
·High Current Capacity: Measures Current up to 100A

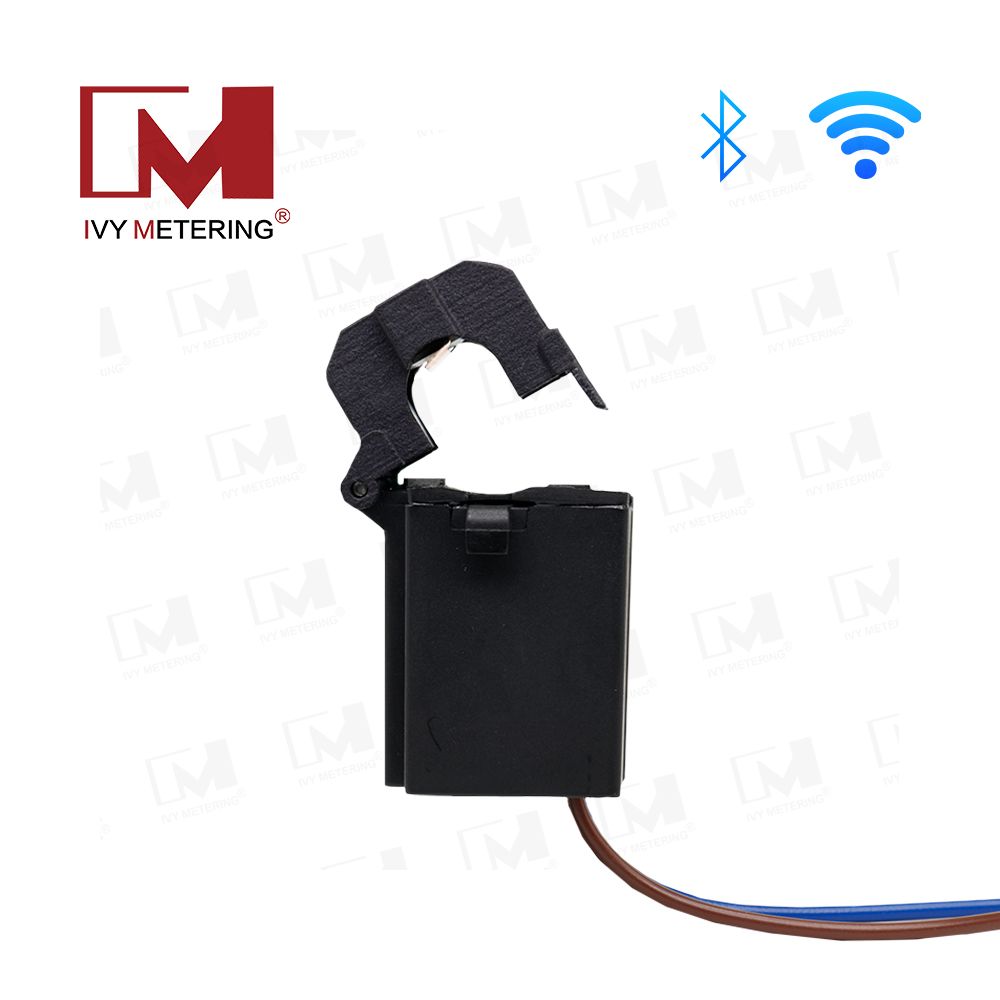

·Effortless Installation: Split-core (Clamp-on) Design
·Bidirectional Measurement: Measures Energy Consumption & Generation (e.g., from Solar PV Systems)
·Real-time Active Reporting: Monitor Circuit Status & Report Data in Real-time

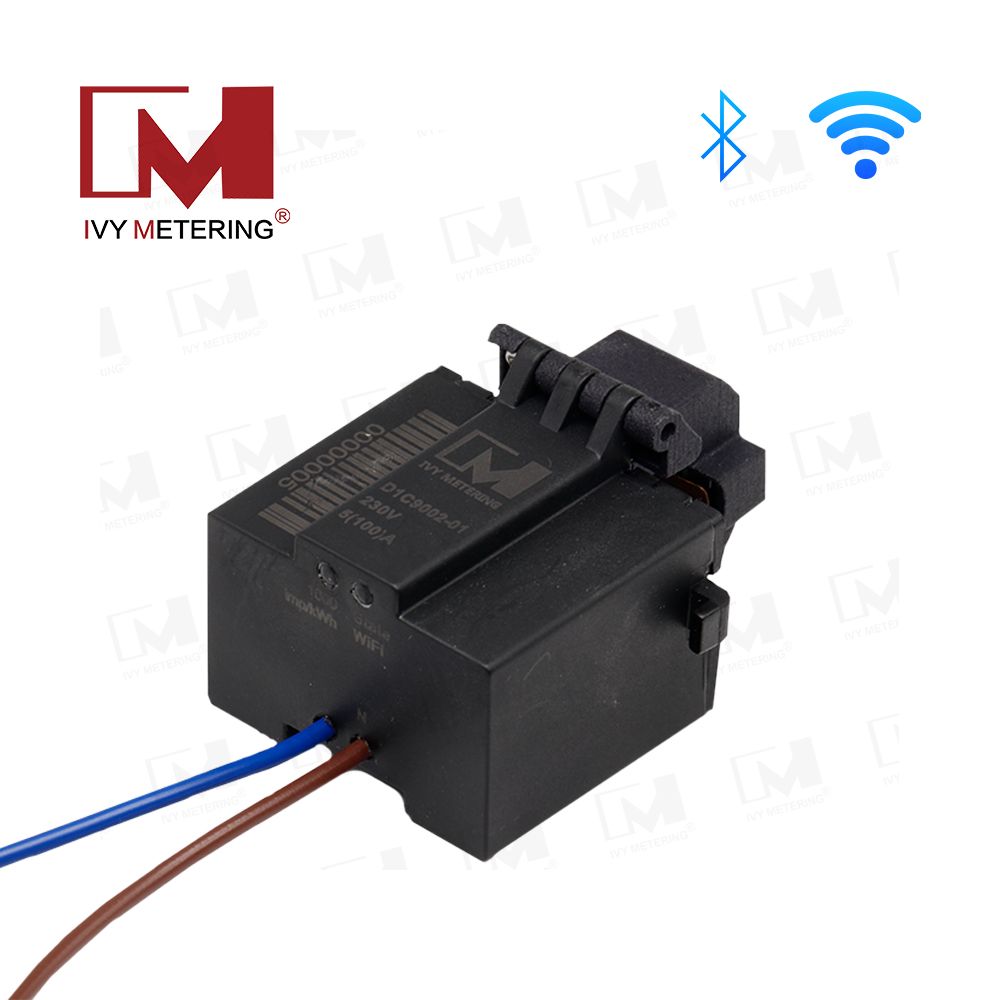

IVY METERING CT Smart Sensor with WiFi
(Model: IVY-100A-WiFi-D1C9002-01)
This is a compact, smart current sensor designed for easy and efficient energy monitoring.

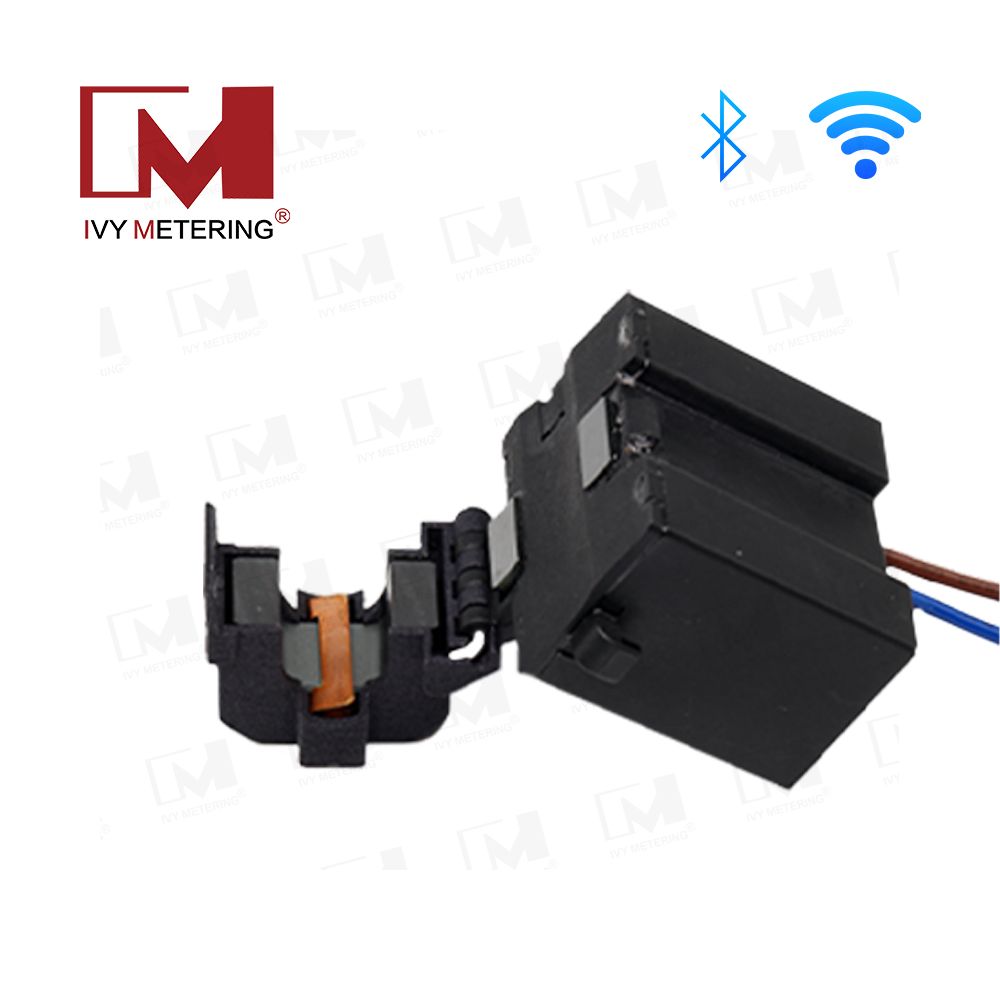

Its split-core design allows it to be clamped onto existing electrical wires without any cutting or disconnection, making installation simple and fast.
The sensor provides real-time, bidirectional measurement, making it suitable for monitoring both energy consumption and generation(e.g., from solar panels).
With both WiFi and Bluetooth connectivity, it actively reports data wirelessly for integration into smart home or energy management systems.
Product Parameters
| Voltage Input | 230V(±20%) |
| Current | 10(100)A |
| Starting Current | 0.04%Ib (4mA) |
| Minimum Current | 5%Ib (500mA) |
| Pulse Constant | 1000imp/kWh |
| Measurement accuracy | 2% |
| Rated frequency | 50~60Hz |
| Threading hole diameter | ≤φ12mm |
| Temperature range | -20 ~ 60ºC |

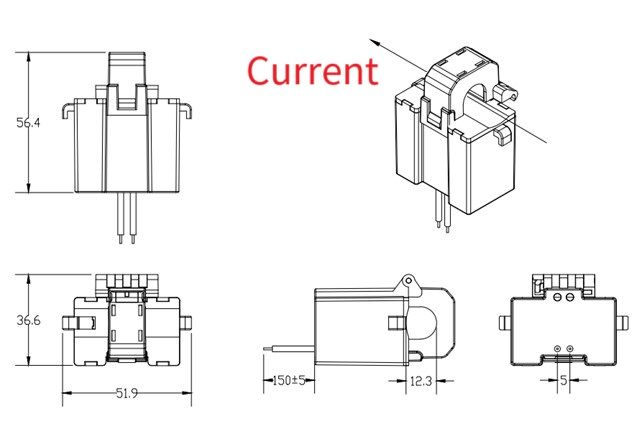

Installation Instructions
-
